VST VRP-150 - Page 11

11

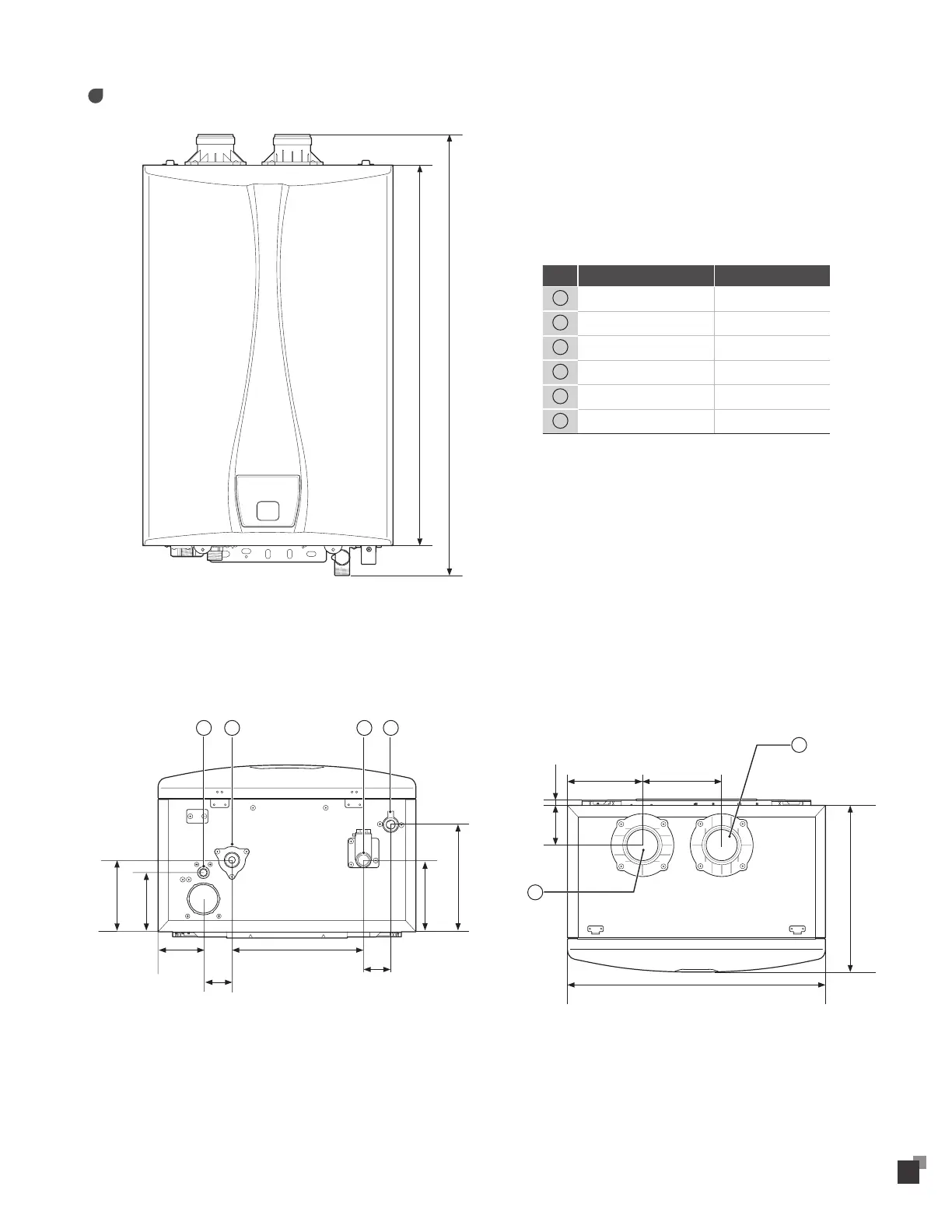

General Information
VRS
Description Diameter
A
Condensate outlet 1/2"
B
Hot water outlet 3/4"
C
Cold inlet 3/4"
D
Gas inlet 3/4"
E
Exhaust vent 2"
F
Air inlet 2"
27.56" (700 mm)
31.95" (811.5 mm)
2.80"
(71.1 mm)
0.36" (9.2 mm)
18.11" (460 mm)
5.57"
(141.5 mm)
5.26"
(133.5 mm)
11.61" (295 mm)
E
F
5" (127 mm)
3.19"
(81 mm)
9.22"
(234.3 mm)
1.92"
(48.7 mm)
2.01"
(51 mm)
5" (127 mm)
7.49" (190.2 mm)
4.12"
(104.6 mm)
A B C D
