VST VRP-150 - Dimensions

10
Installation Manual

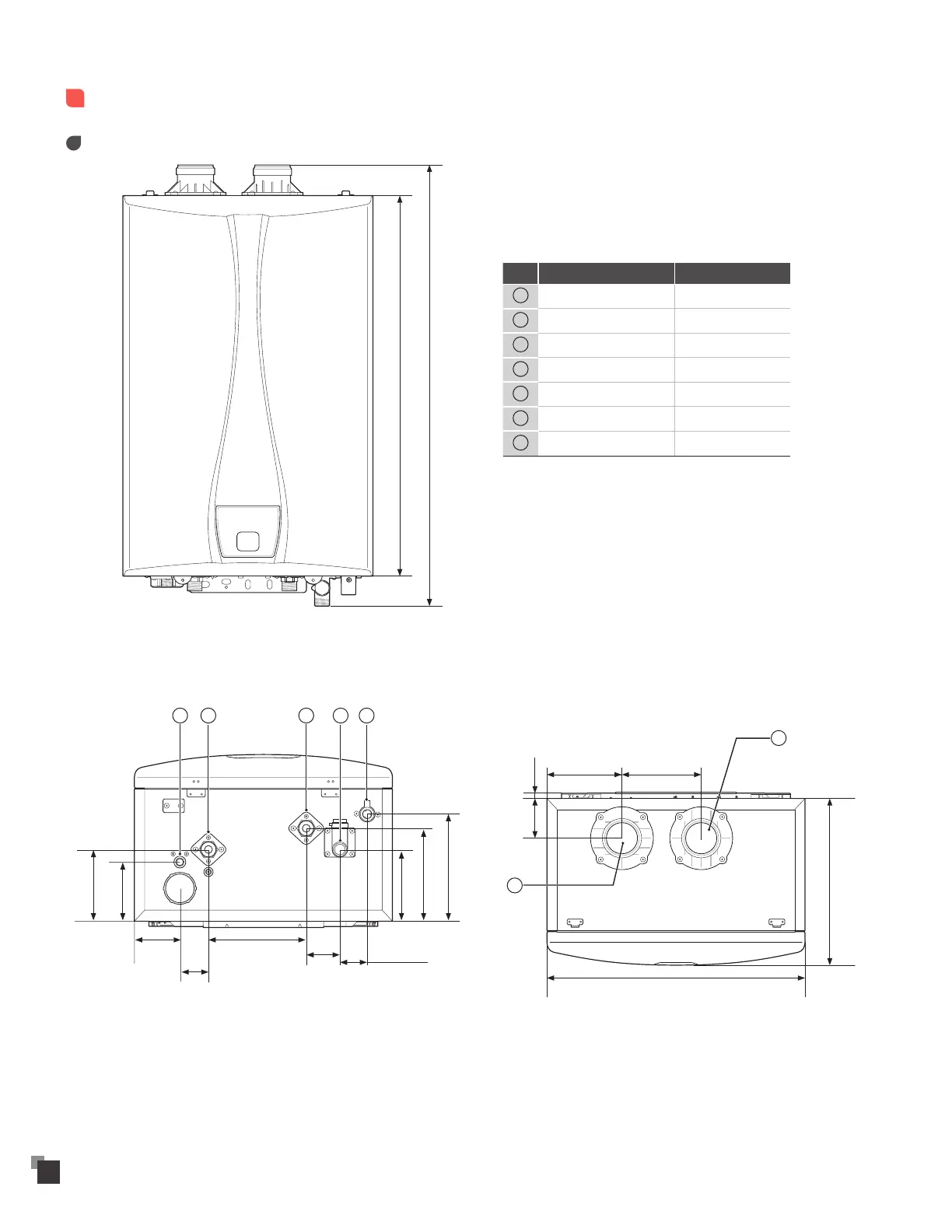

Dimensions
VRP
Description Diameter
A
Condensate outlet 1/2"
B
Hot water outlet 3/4"
C
Recirculation inlet 3/4"
D
Cold inlet 3/4"
E
Gas inlet 3/4"
F
Exhaust vent 2"
G
Air inlet 2"
27.56" (700 mm)
31.95" (811.5 mm)
5" (127 mm)
3.19"
(81 mm)
6.86"
(174.3 mm)
1.92"
(48.7 mm)
2.36"
(60 mm)
2.01"
(51 mm)
5" (127 mm)
6.49" (164.8 mm)
7.49" (190.2 mm)
4.12"
(104.6 mm)
A B C D E
2.80"
(71.1 mm)
0.36" (9.2 mm)
18.11" (460 mm)
5.57"
(141.5 mm)
5.26"
(133.5 mm)
11.61" (295 mm)
F
G
