Connecting and Terminating the Vent Pipe
Refer to the following example to install the common vent system. The installation area should be measured to ensure that sufficient space is
avaliable to install the water heater units and the common vent system. Ensure that the common vent system is installed near the water heater
units while satisfying all clearance requirements that are specified in this manual as well as the installation Manuals supplied with the water
heater units.

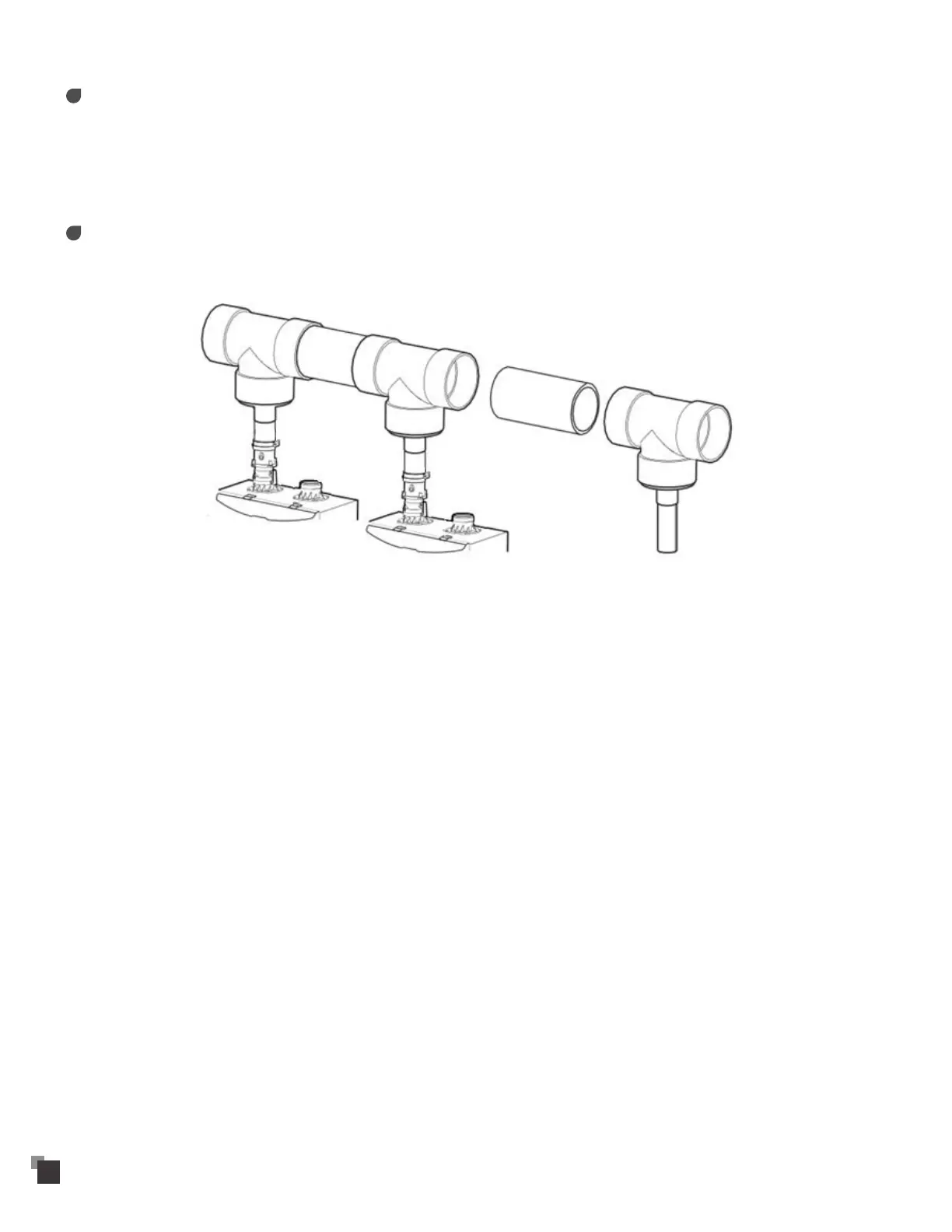

Connecting the Main Pipe Runs to T joint
After connecting the T joint to the 8"-to-2" reducer, connect the main trunk pipe to each side of the T. Each trunk pipe is connected to the other T
joint. Refer to "Connecting Pipes with Cement" on page 39 for more information.
