4.11 Engine Air Cleaner

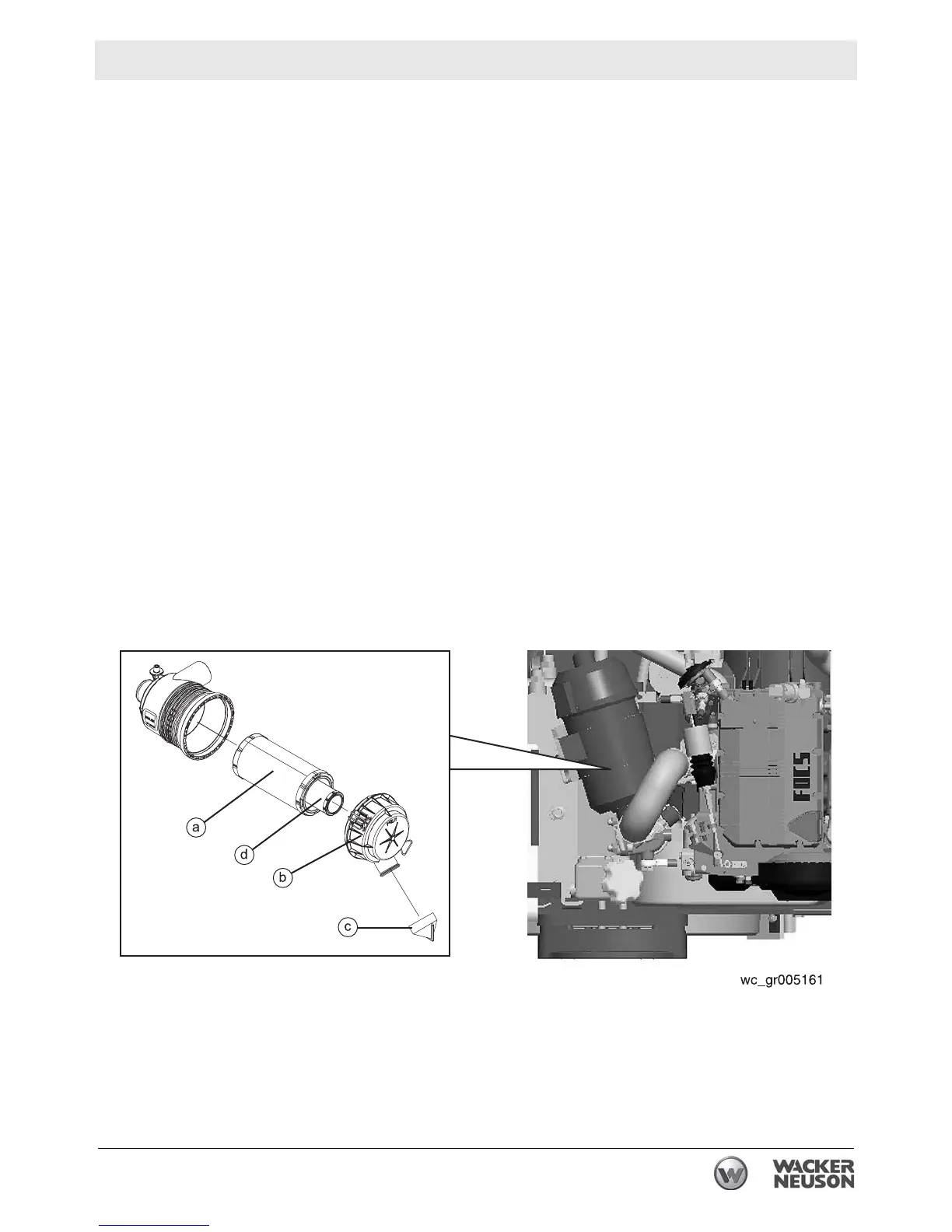

See Graphic: wc_gr005161
Replace both air filter elements when the air filter warning light
illuminates. See Section Control Panel.
The air cleaner assembly contains a primary air filter element (a) and
a secondary air filter element (d).
To replace the air filter elements:
4.11.1 Remove the end cover (b), then discard both filter elements.
4.11.2 Insert new air filter elements, then:
4.11.3 Re-install the end cover, making sure that the dust cap (c) is clean and
is pointing downward.
Periodically, make sure the inlet pipe is free from obstructions.
NOTICE: Check all connections and make sure they are snug. An air
leak at the neck clamp or intake pipe can quickly lead to expensive
engine repairs.
• Make sure that the intake piping is fully engaged over the neck of
the filter to ensure a good seal.
• If the filter housing, neck, or inlet pipe are crushed or damaged,
replace them immediately.
