WAGNER EPG-Sprint X - PI-P1 Powder Injector

148
PXM
8
10
5
4
11
9
6
7
1
2
3
P_00895
OPERATING AND ASSEMBLY MANUAL
VERSION 08/2015 ORDER NUMBER DOC2350372

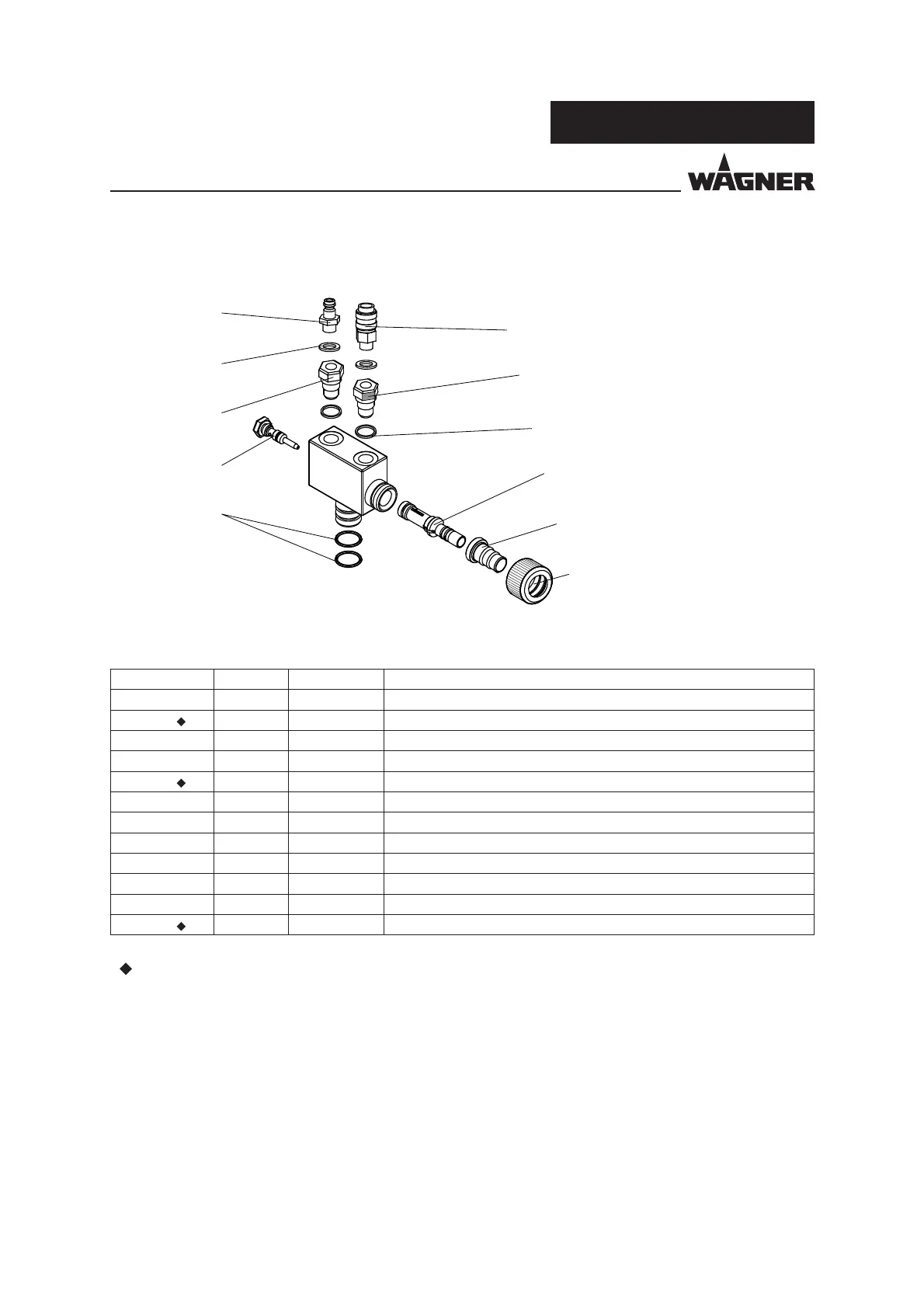

15.25 PIP1 POWDER INJECTOR
Pos K Quantity Order No. Designation
241621 PI-P1 powder injector
1 1 241225 Annular gap collector nozzle
2 1 241476 Conductive nozzle
3 1 241466 Union nut
4
1 241923 Air nozzle
5 1 241460 Spring check valve
6 1 241461 Spring check valve with choke (marked in black)
7 1 9970149 Sealing ring
8 1 9999047 Quick-release plug
9 1 9999048 Quick-release socket
10 1 9970150 Sealing ring
11
2 9974023 O-ring, electrically conductive
Wearing part
