125
PXM
1
10
11
12 13
P_02691
OPERATING AND ASSEMBLY MANUAL
VERSION 08/2015 ORDER NUMBER DOC2350372

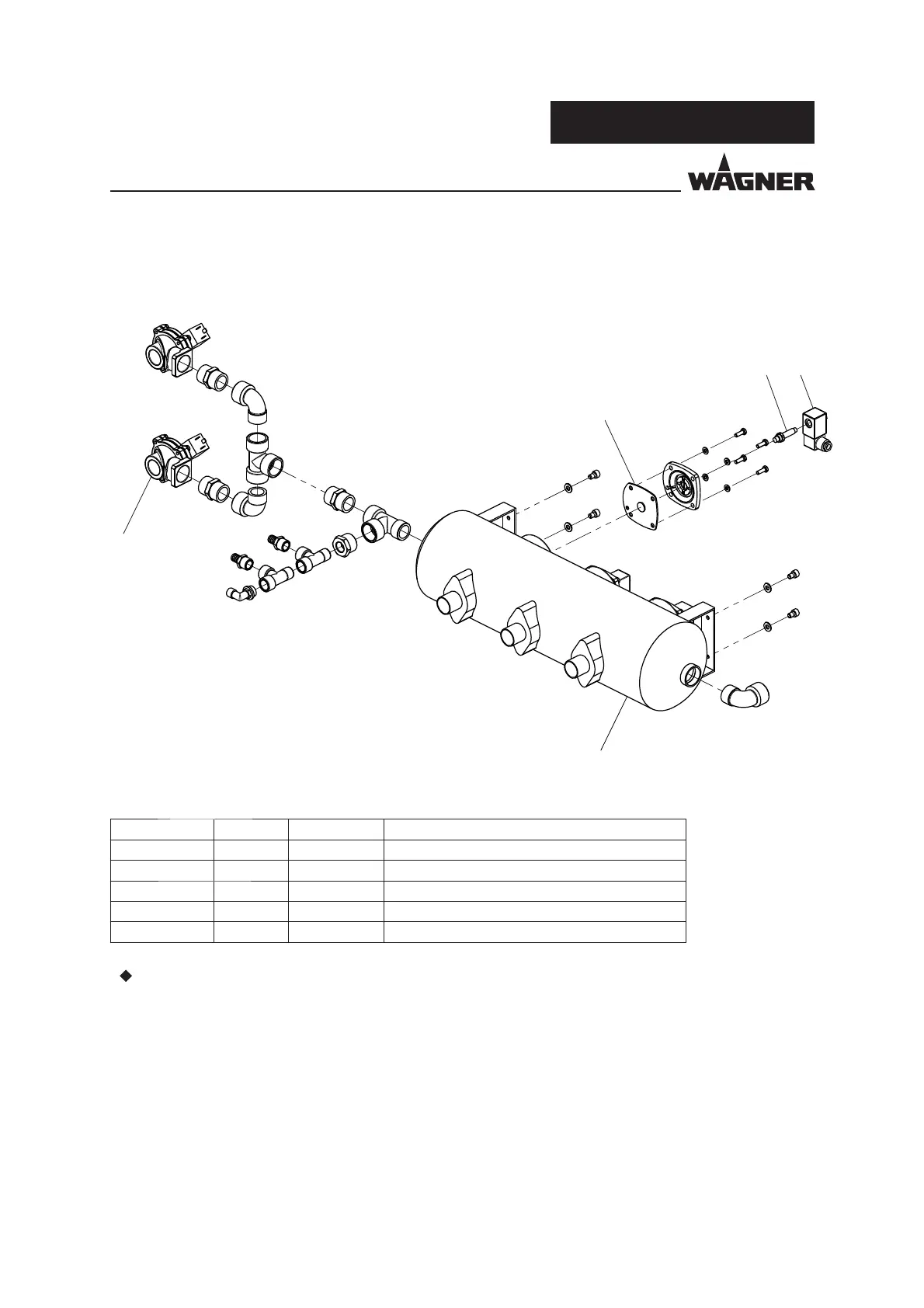

15.14 COMPRESSED AIR TANK FOR 34 INJECTORS
Pos K Quantity Order No. Designation
1 1 2360020 Pressure tank with 3 valves
10 2 2316275 Solenoid valve, complete
9 3 2360021 Valve diaphragm
10 3 2360022 Pilot valve
11 3 2360023 Solenoid with plug
Wearing part
