WAGNER EvoMotion 5-125 Translation Of The Original Operating Manual

22
VERSION 01/2018
ORDER NUMBER DOC 2316596

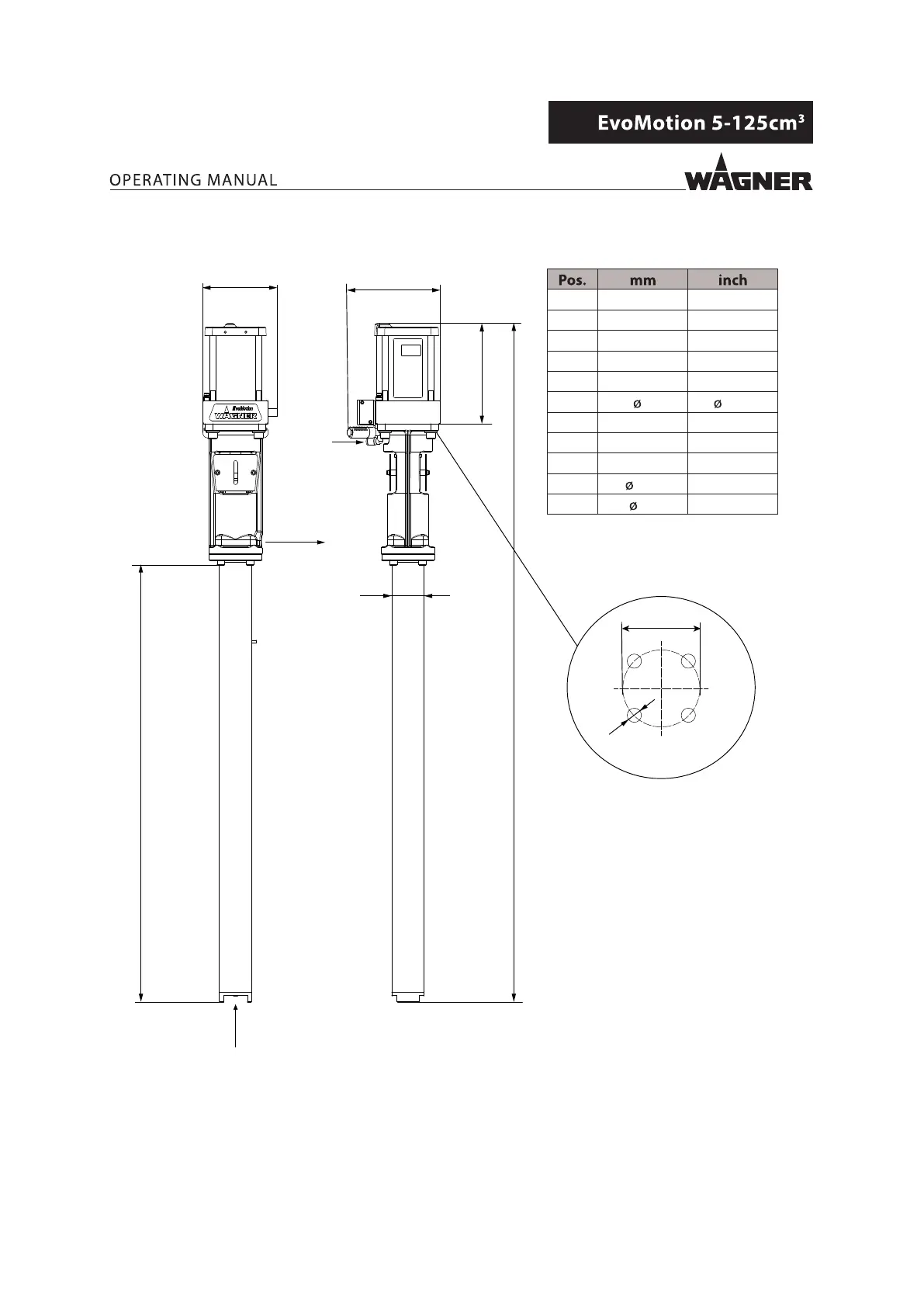

5.5.4 DIMENSIONS AND CONNECTIONS
B_03460
A
F
G
B
H
C
D
E
I
J
K
A 126.5 5.0
B 142 5.6
C 1338.5 52.7
D 944.5 37.2
E 170 6.7
F
8 0.31
G - -
H - G1/2“
I 54 2.1
J*
110 4.33
K*
11 0.43
* On-site: possible wall mount xing

WAGNER EvoMotion 5-125 Specifications

General

Brand	WAGNER
Model	EvoMotion 5-125
Category	Water Pump
Language	English
