26
VERSION 01/2018
ORDER NUMBER DOC 2316596
6.5 ASSEMBLY AND INSTALLATION
National regulations
Ensure that the national explosion prevention rules and regulations are observed
when setting up the device.
This pump can be used as part of a spraying system or it can be used in a TwinControl
system, for example. A variety of supplemental components for this pump can be found in
the WAGNER liquid coating or accessories catalogues. So that the pump can be separated
from the rest of the system, the correct product valve must be mounted in the product line.
Further valves (e.g. spray guns) downstream of the product non-return valve are
not discussed in this manual. Observe superordinate operating manual!

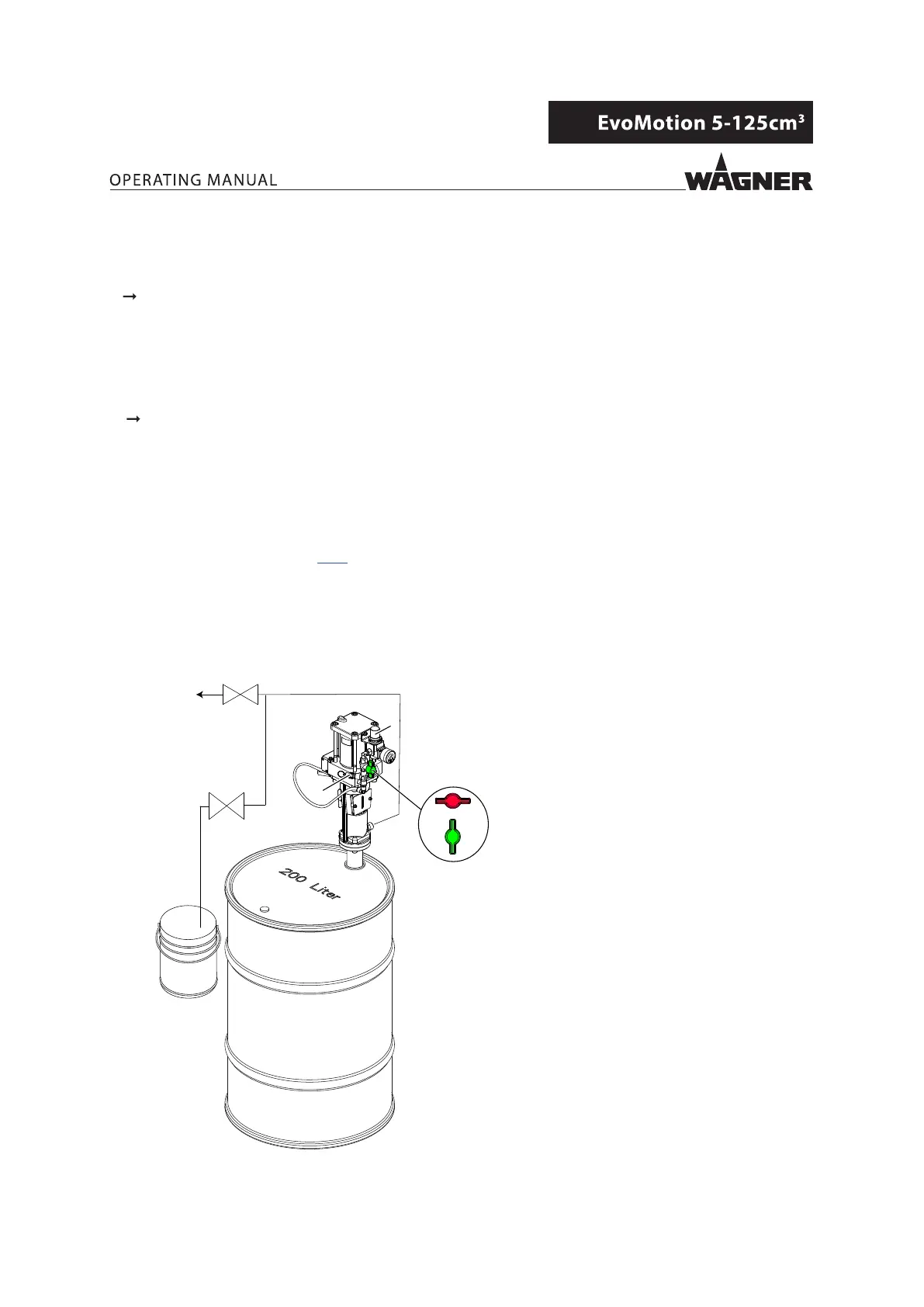

Procedure
1. Ensure that the product tank is equipped with the correct drum adaptor or the
correct mounting bracket (ø suction tube pump 54 mm, 2.1 inch).
2. Mount the pump vertically with the drum adaptor or with the mounting bracket.
The pump must be vertical during operation (maximum permissible tilt of the
pump ±10° -> see Chapter 5.5.3).
3. Mount a pressure regulator unit (1).
4. Mount a return valve with corresponding return hose (3).
5. Mount a suitable product non-return valve (4) on the product line.
6. Place the pump in the product tank (6).
7. Provide an empty tank (5).
4
2
1
B_06877
5
6
8
3
open
closed
