5 Description
Order number 2316596 | Edition 03/2021 23
Pos mm inch
A 126.5 5.0
B 142 5.6
C 1338.5 52.7
D 944.5 37.2
E 170 6.7
F ø 8 ø 0.31
G -- --
H -- G1/2“
I 54 2.1
J* ø 110 4.33
K* ø 11 0.43
* On-site: possible wall mount fixing

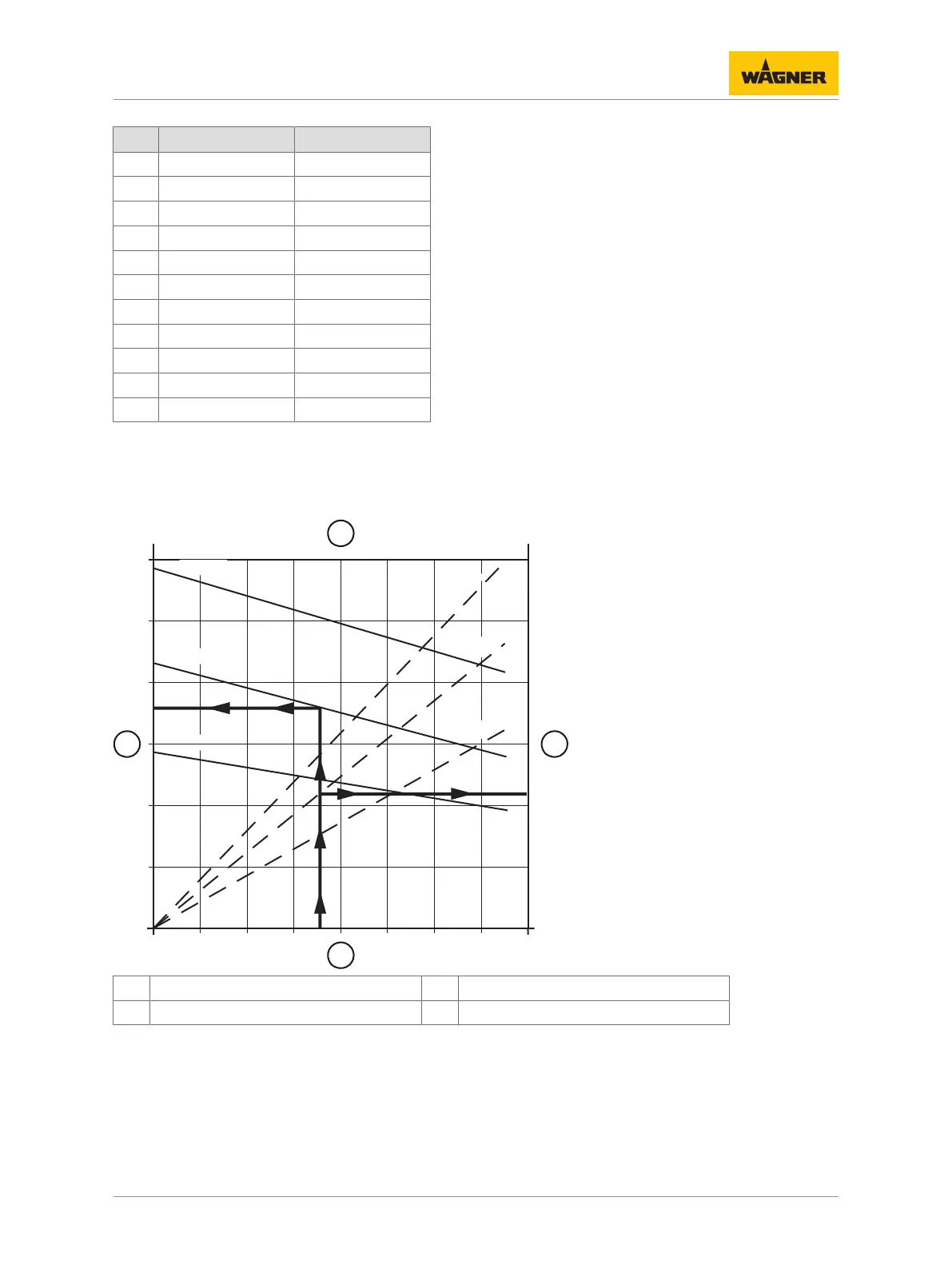

5.5.5 Performance Diagrams
Example
8 bar
6 bar
4 bar
8 bar
6 bar
4 bar
B_00301
1
2
3
4
1 Product pressure in bar; (MPa); <psi> 3 Air consumption in nl/min.; <scfm>
2 Stroke frequency in DH/min. 4 Flow rate of water in l/min.; <gpm>
