Operating manual Piston Pump EvoMotion 5-125
6 Assembly and Commissioning
Order number 2316596 | Edition 03/2021 27

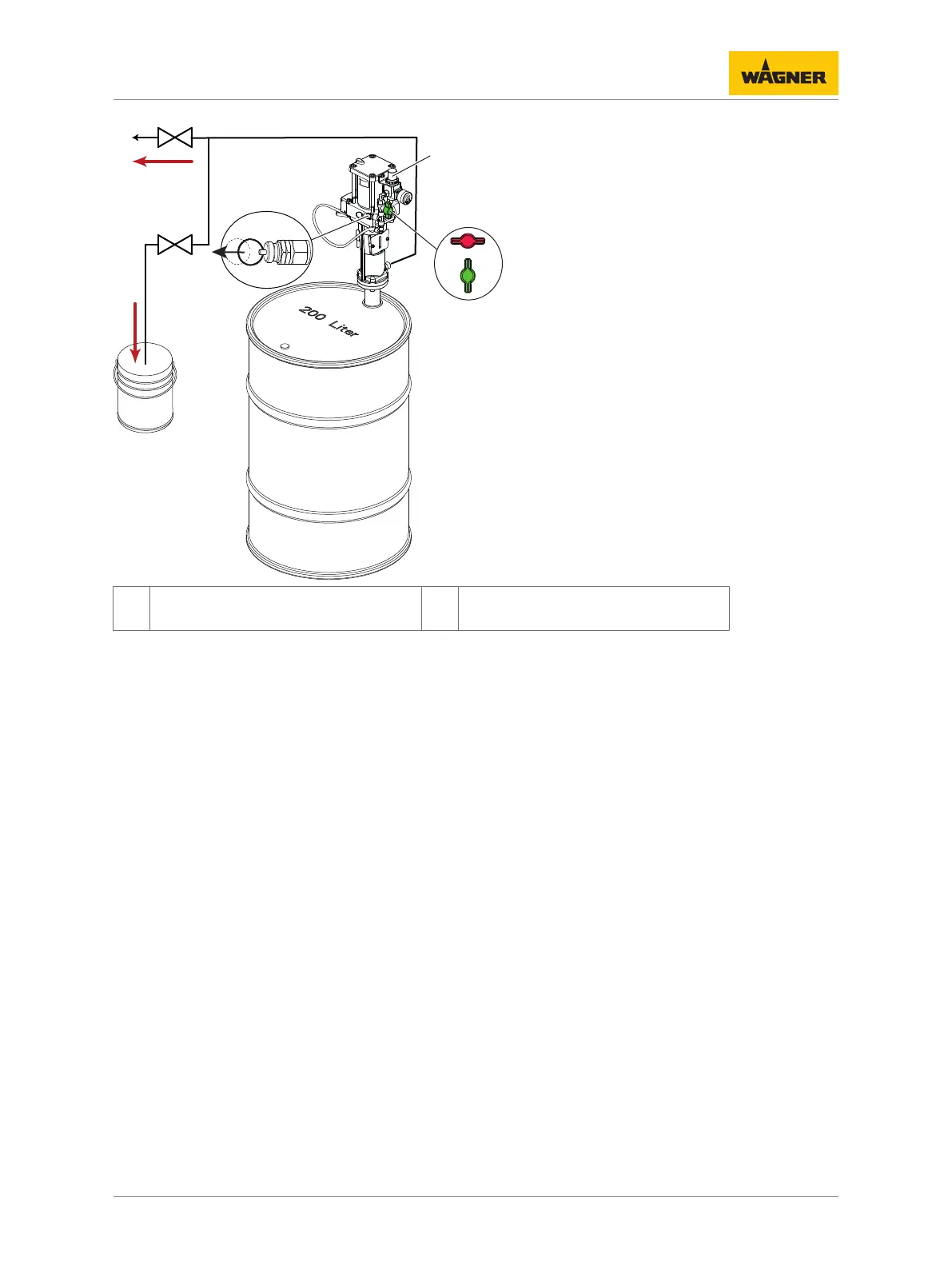

A Closed: The air motor may still be un-
der pressure.
B Open: working position
1. Ensure that the product tank is equipped with the correct drum adaptor or the correct
mounting bracket (ø suction tube pump 54 mm, 2.1 inch).
2. Mount the pump vertically with the drum adaptor or with the mounting bracket. The
pump must be vertical during operation (maximum permissible tilt of the pump ±10°) -
> See chapter Technical data [821]
3. Mount a pressure regulator unit (1).
4. Mount a return valve with corresponding return hose (3).
5. Mount a suitable product non-return valve (4) on the product line.
6. Place the pump in the product tank (6).
7. Provide an empty tank (5).
6.5.1 Ventilation of the Spray Booth
– Operate the device in a spray booth approved for the respective working materials.
- or -
– Operate the device on an appropriate spraying wall with the ventilation (extraction)
switched on.
– Observe national and local regulations for the exhaust air speed.
