Operating manual Piston Pump EvoMotion 5-125
6 Assembly and Commissioning
Order number 2316596 | Edition 03/2021 29
B_00304
7
6
5
1
2
3
4
8

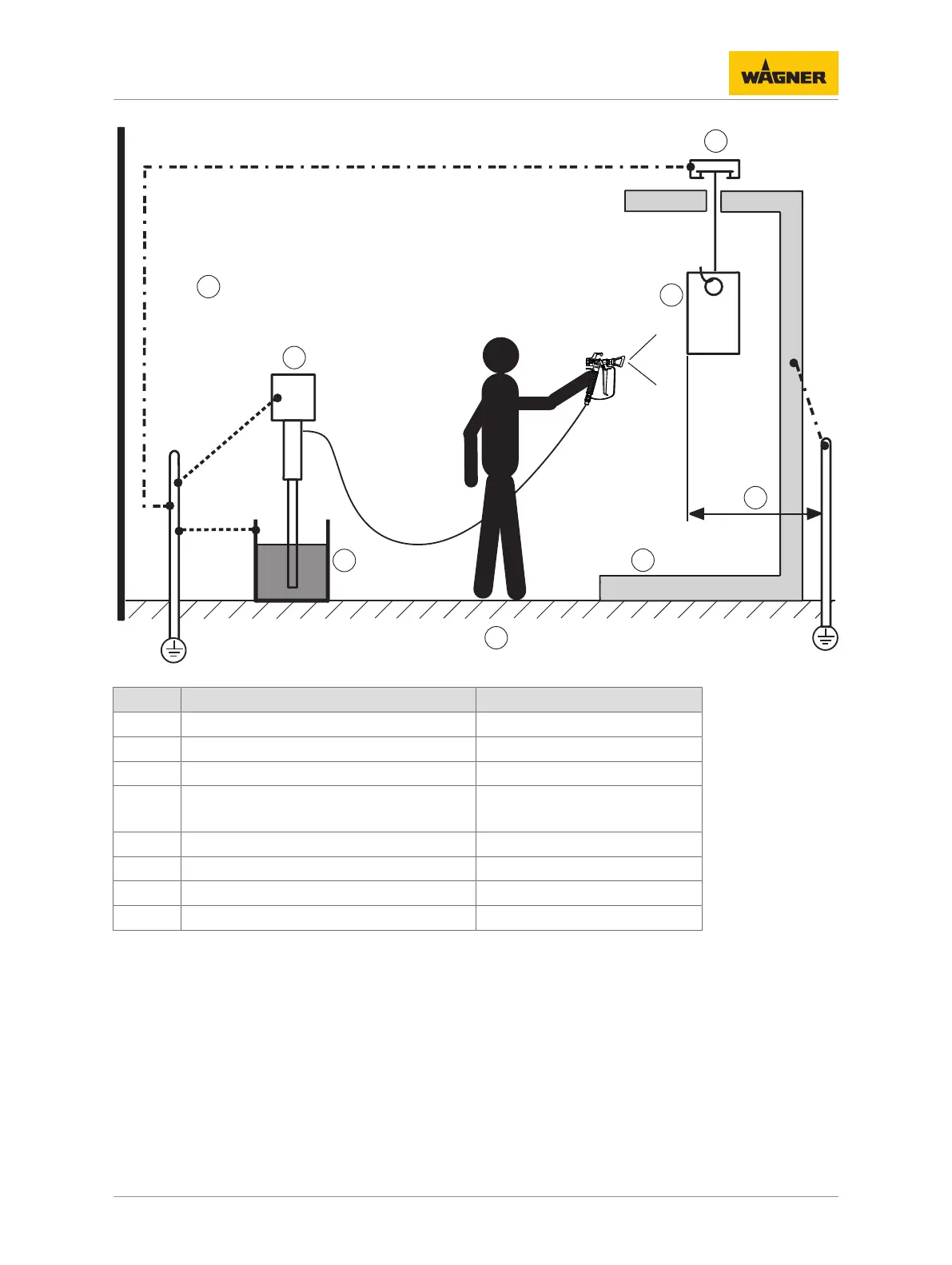

Earthing schema (example)
Pos Part / workstation Cable cross section
1 Conveyor 16mm²; AWG6
2 Work piece --
3 R
max
< 1MΩ --
4 Spraying stand
Alternative: Spray booth
16mm²; AWG6
5 Floor, static dissipative --
6 Product tank 6mm²; AWG10
7 Pump 4mm²; AWG12
8 Ex zone --
