WAGNER GM 5000EA - Assembly and Installation

35
GM 5000EA
0
100
200
300
400
500
600
700
 0.6mm
 0.8mm
 1.0mm
 1.2mm
 1.4mm
 1.6mm
 1.8mm
 2.0mm
123
B_03455
0
100
200
300
400
500
600
123
D8
D12
B_03456
OPERATING MANUAL
EDITION 07/2014
ORDER NUMBER DOC
2344499
6.6.3 ELECTROSTATIC AND ATOMIZATION
The electrostatic charging of the spray cloud produces a more homogeneous distribution
of paint particles on the object.
See also Chapter 5.4.3.

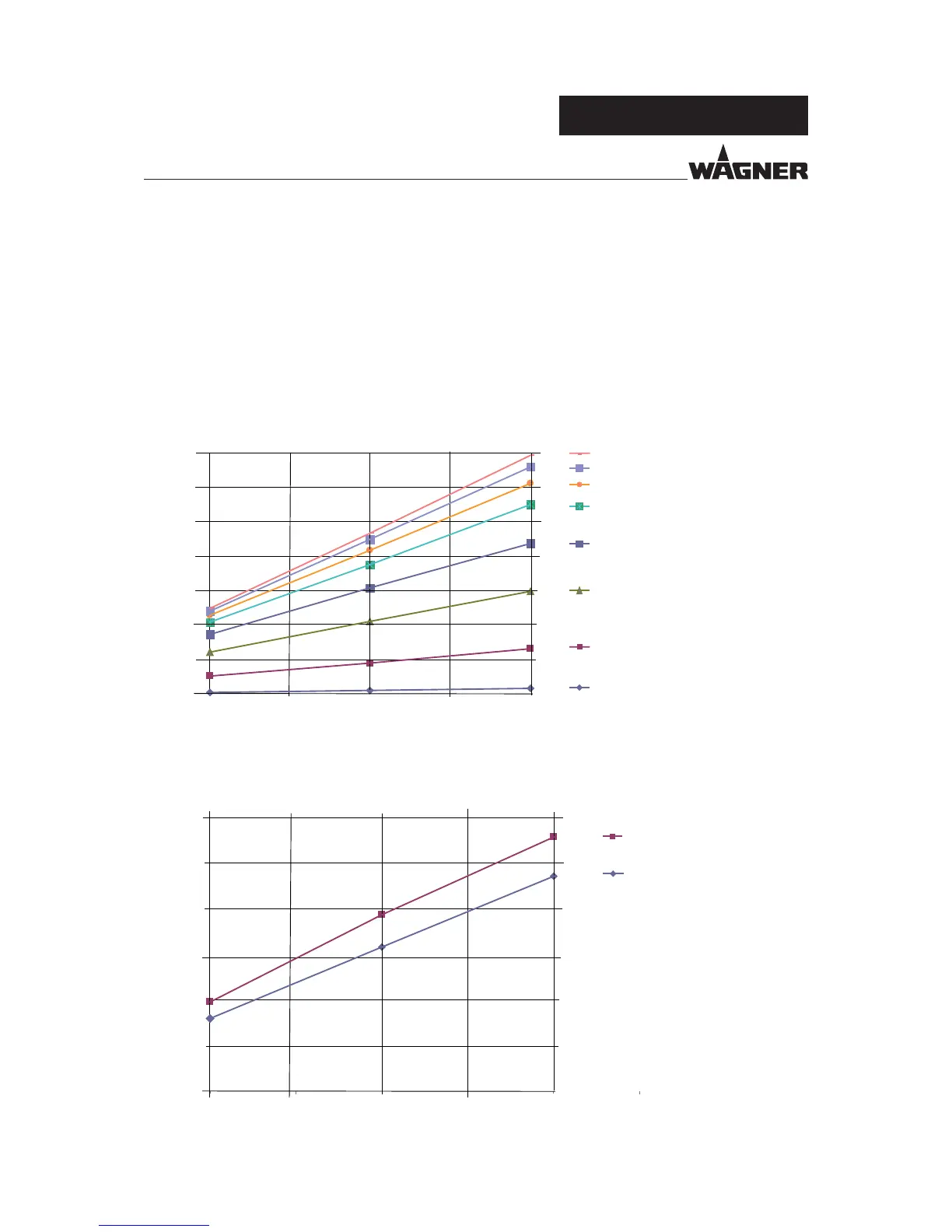

6.6.4 OUTPUT MEASURING
-> Product pressure in bar
Device: GM 5000EAF
Viscosity: 22 DIN 4 sec
-> Output in g/min
-> Product pressure in bar
Device: GM 5000EAR
Viscosity: 22 DIN 4 sec
-> Output in g/min
Flat spray nozzles
Round spray nozzles
