WAGNER GM 5000EA - Assembly of the Spray Gun

53
GM 5000EA
1
2
B_03448
B_03251a
SW14
3 Nm
SW9
4
Torx 20
2
OPERATING MANUAL
EDITION 07/2014
ORDER NUMBER DOC
2344499

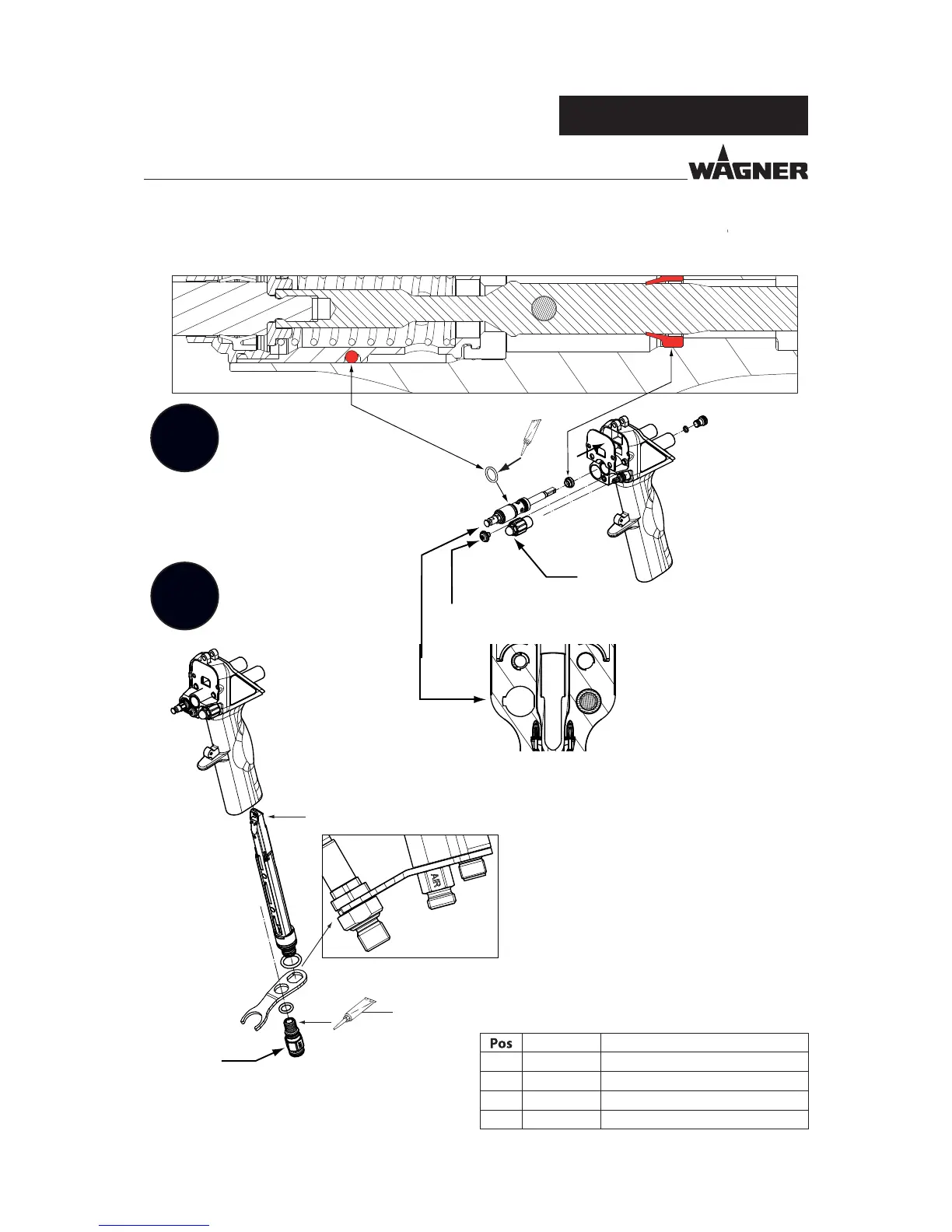

8.5 ASSEMBLY OF THE SPRAY GUN
Mounting aids:
Order No. Designation
1 9992590 Loctite 222
2 9992698 Vaseline white PHHV II
3 9992831 Loctite 542
4 9992511 Loctite 243
Ensure the correct insertion position!
Ensure the correct insertion position!
