Description of unit Starting operation
3.7 Technical data ProSpray 24
Voltage: 220~240 V AC, 50/60 Hz or
100~120 V AC, 50/60 Hz
Max. current consumption:
230 V AC
7 A
100~120 V AC 12 A
Power cord: 3 x 1.5 mm
2
– 6 m
Acceptance capacity: 1100 Watts
Max. operating pressure: 23 MPa (230 bar)
Volume flow at 12 MPa
(120 bar) with water:
2.2 l/min
Max. tip size: 0.024 inch – 0.61 mm
Max. temperature of the
coating material:
43°C
Max. viscosity: 25.000 MPa·s
Filter insert
(standard outfitting)
60 mesh
Weight: 25 kg
Special high-pressure hose: DN 6 mm, 15 m connecting
thread M 16 x 1.5
Dimensions (L x W x H)
Upright cart unit:
580 x 565 x 760 mm
Low boy cart unit: 820 x 430 x 545 mm
Stand unit 480 x 345 x 405 mm
Max. sound pressure level: 80 dB (A) *
* Place of measuring: 1 m in distance from the unit and 1.6
m above the floor, 12 MPa (120 bar) operating pr
essur
e,
reverberant floor.

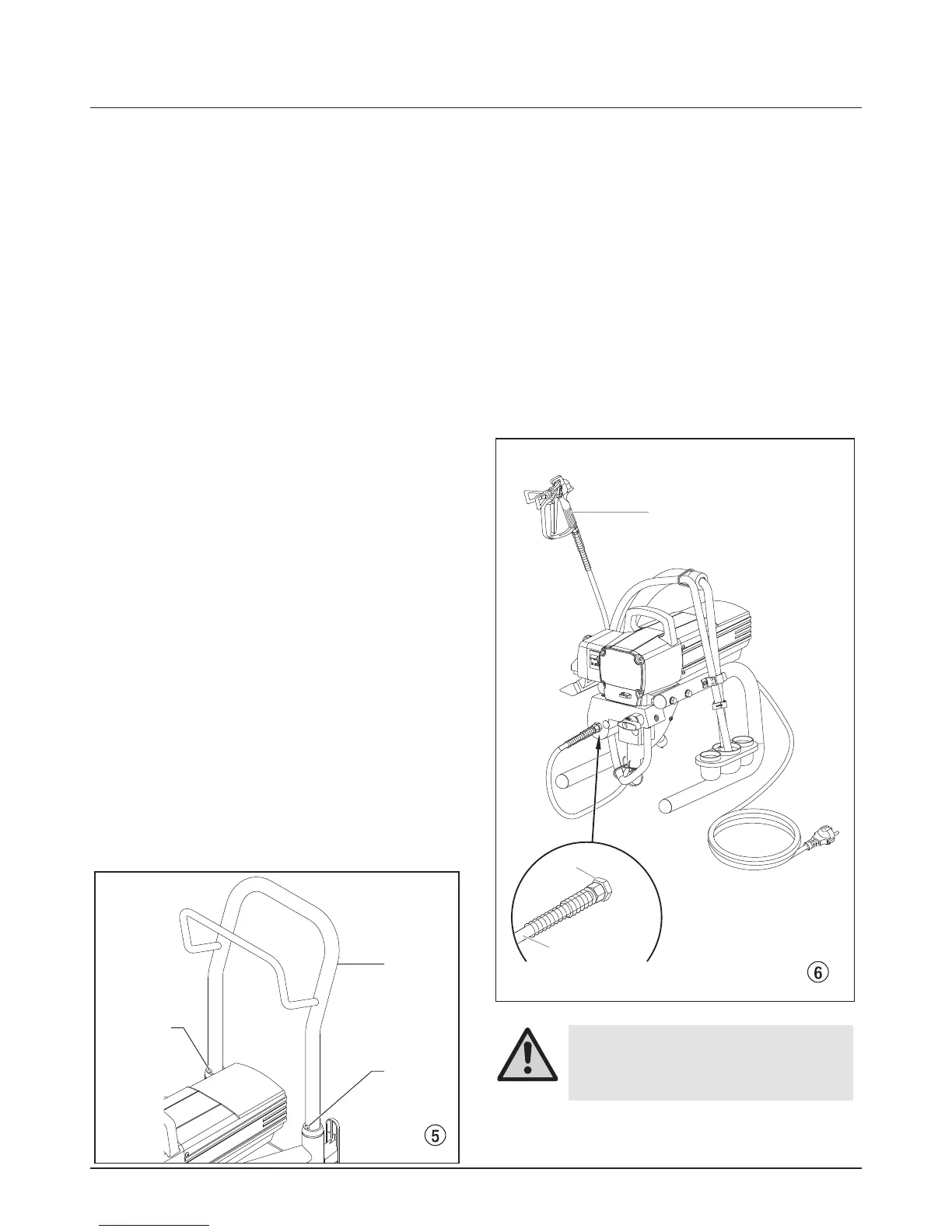

3.8 Transportation
Pushing or pulling the unit
Pull out the handle (Fig. 5, Item 1) until it will come no
further
. Insert the handle – push the buttons (2) on the
spars, and then push in the handle.
3.9 Transportation in vehicle
R
oll the high-pressure hose over the suspension device
at the handle.
S
ecure the unit with a suitable fastening.
4. Starting operation
4.1 High-pressure hose, spray gun and
separating oil
1. Screw the high-pressure hose (2) to the coating mate-
rial outlet (Fig. 6, Item 1).
2. Screw the spray gun (3) with the selected tip onto the
high-pressure hose.
3. Tighten the union nuts at the high-pressure hoses
firmly so that coating material does not leak.
EasyGlide prevents increased wear
and tear to the packings.
