Super Finish 21 • 23 39
g
Repairs on the unit
g

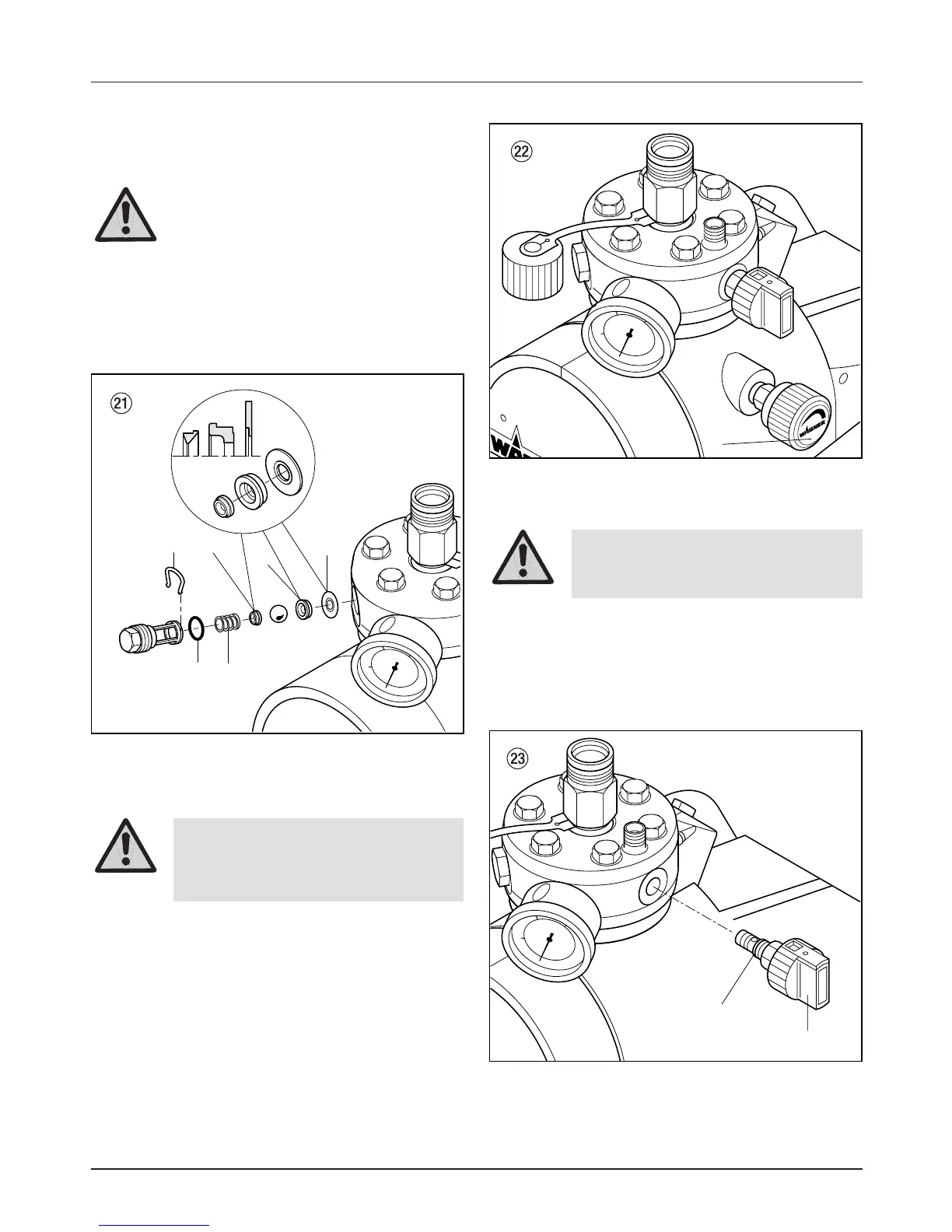

11.2 Outlet valve (fig. 21)
1. Screw out outlet valve with spanner 22 mm
from the paint section.
2. Remove clasp (1) carefully with screw-
driver, pressure spring (2) presses parts
out 3 to 4.
3. Clean or replace individual parts.
4. Check O-ring (6) for damage.
5. Pay attention to installation position in mounting
spring support ring (3), outlet valve seat (4) and
seal ring (5).
11.3 Pressure regulating valve (fig. 22,
item 1)
11.4 Relief valve (fig. 23)
1. Screw relief valve (1) out with the spanner
17 mm.
2. Clean valve seat with cleaning agent and brush.
3. Check O-ring (2) for damage, replace if
necessary.
Allow pressure regulating valve (1) only to
be replaced by the customer service.
The max. operating pressure is to be re-
set by the customer service.
