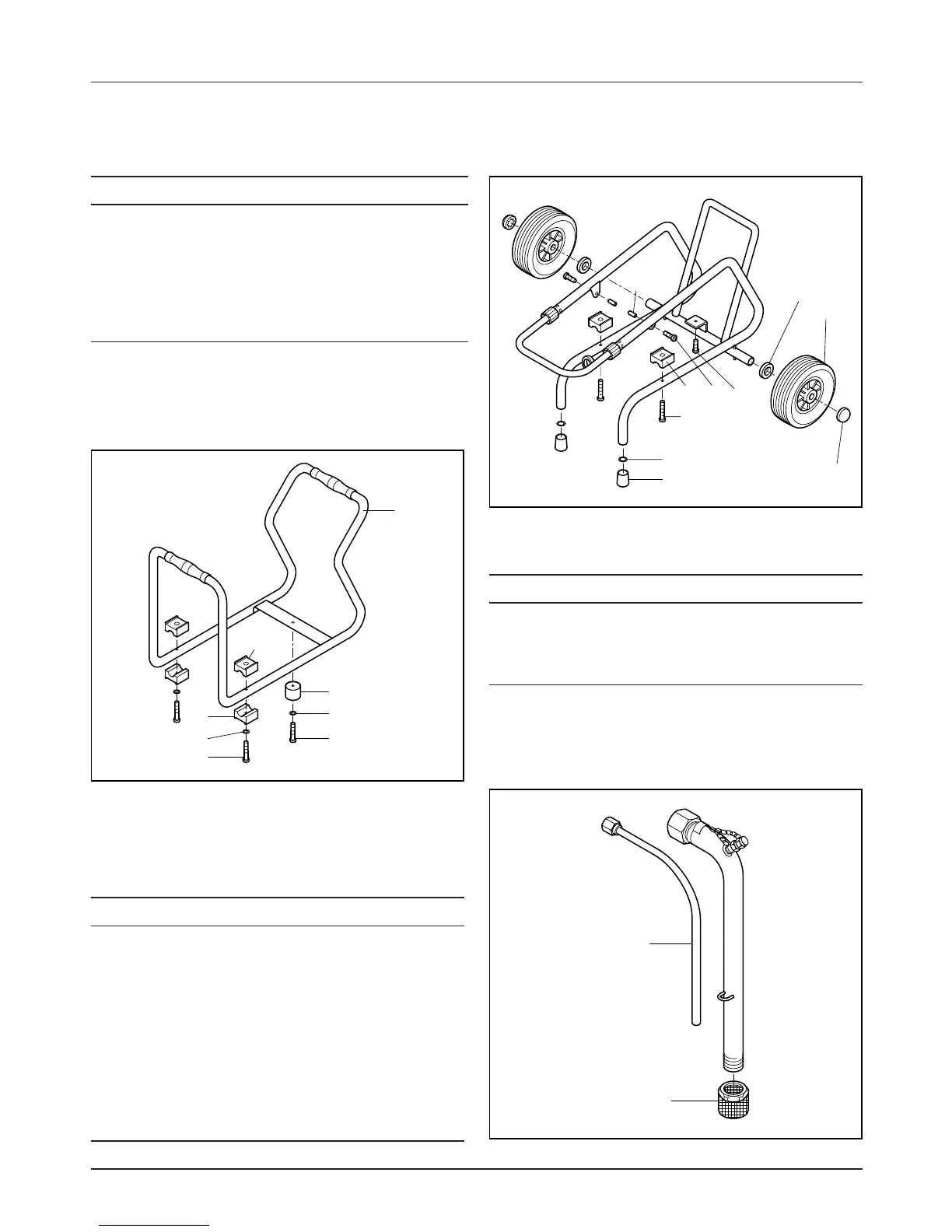

12.2 Spare parts list frame
Super Finish 21
12.3 Spare parts diagram frame
Super Finish 21
Item Order no. Description
1 0344 330 Frame
2 9990 867 Rubber foot
3 3050 347 Disk 6,4
4 9900 407 Screw M 6 x 40
5 9905 309 Cylinder head screw M 6 x 45
6 0340 303 Foot
12.6 Spare parts list suction system
Item Order no. Description
0341 262 Suction system Quick Clean
1 0344 341 Filter, mesh width 1 mm
2 0341 275 Return pipe
12.4 Spare parts list trolley
Super Finish 23
12.5 Spare parts diagram trolley
Super Finish 23
Item Order no. Description
0340 211 Trolley
1 0340 372 Disk
2 9994 957 Wheel
3 9994 950 Wheel cap
4 9900 378 Screw M 6 x 20
5 9900 336 Cylinder head screw M 6 x 40
6 9920 733 Spacer sleeve
7 0340 303 Foot
8 9920 301 Disc 8,4
9 9990 866 Rubber cap
1
2
3
4
6
3
5
6
9
2
8
3
1
5
7
6
5 4
12.7 Spare parts diagram suction system
2
1
