WAGNER Super Finish 21 User Manual

g
Description of unit
Super Finish 21 • 23 29

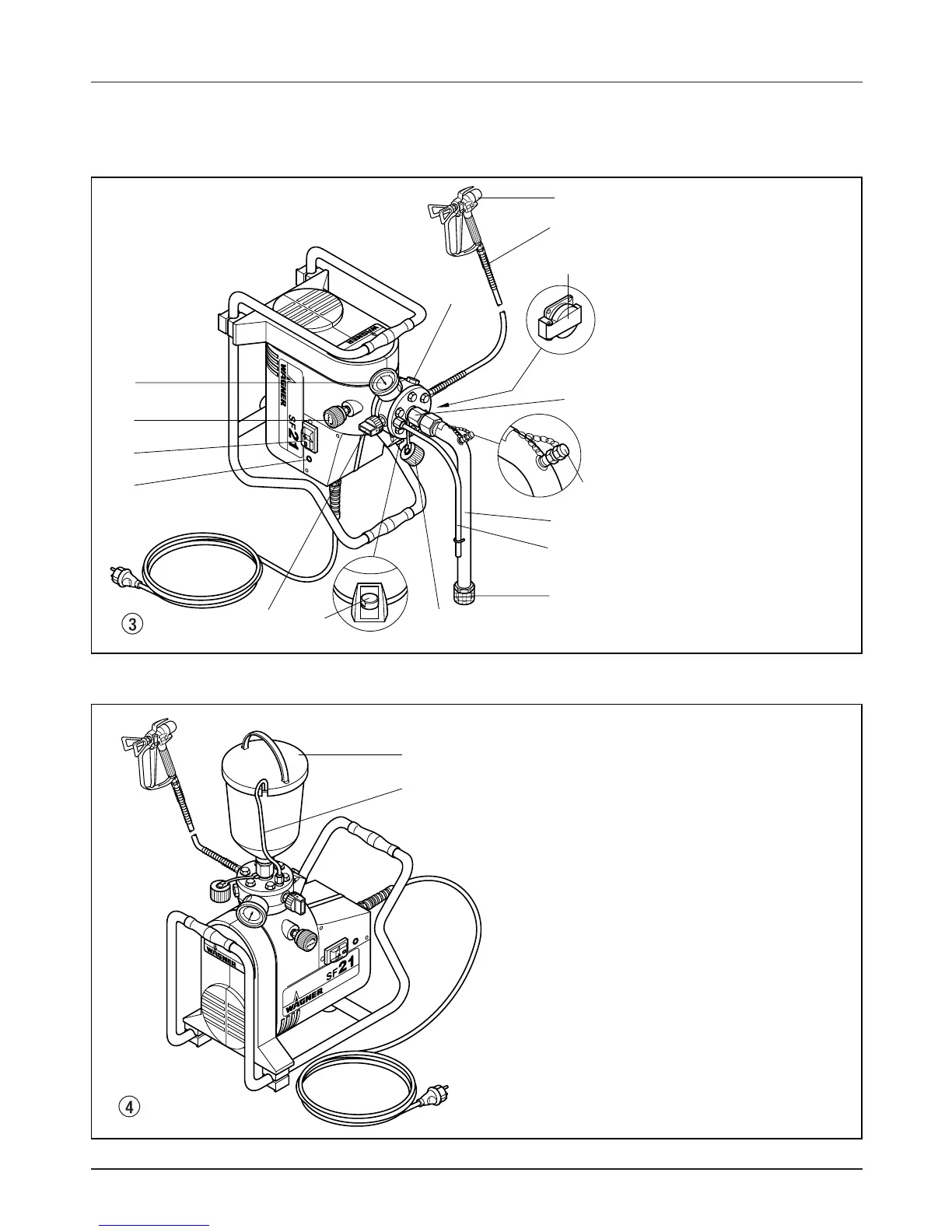

3.3 Explanatory diagram
3.3.1 Super Finish 21 – Vertical set-up with suction system
2
1
6
3
16
4
12
15
7
8
9
11
14
13
10
5
3.3.2 Super Finish 21 – Horizontal set-up with upper hopper
17
18
1 Spray gun
2 High-pressure hose
3 Outlet valve
4 Socket, max. load 1000 Watt
(230 Volt~, 50 Hz,
220 Volt~, 60 Hz)
Socket, max. load 400 Watt
(110 Volt~, 50 Hz)
5 Inlet valve in coating material inlet
6 Connection for cleaning
with the spray gun
7 Suction pipe
8 Return pipe
9 Filter, size of mesh 1 mm
10 Dust protection cap
11 Oil measuring stick under
the oil screw plug
12 Relief valve
Symbols:
Spraying p
Circulation k
13 Control lamp shows that the unit
is ready for operation
14 ON/OFF switch
15 Pressure regulating valve
16 Manometer
17 Upper hopper, capacity 5 litres
18 Return pipe
(not positioned parts as in fig. 3)
