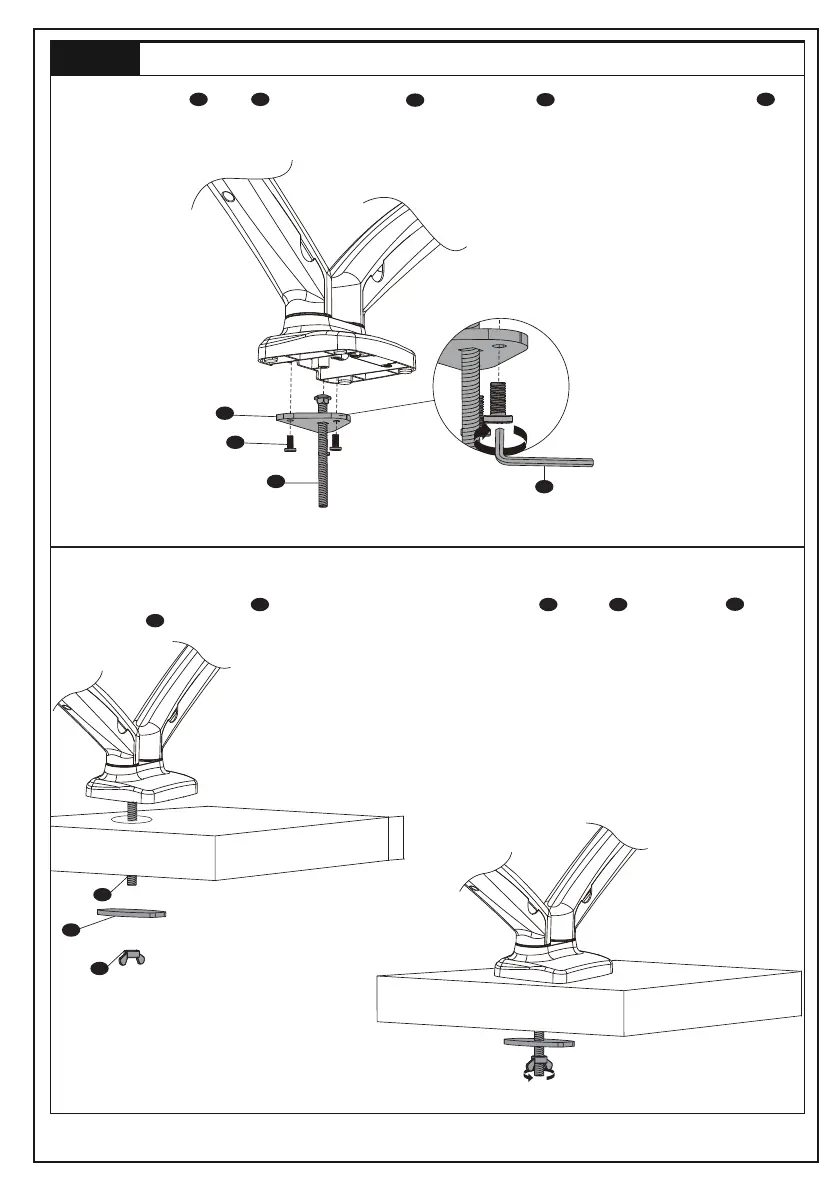

1. Attach Metal Pad G & Bolt I to the bottom of Arm A using M6x12 Bolt F , tighten up with Allen Key 4mm K .
Option B
Grommet Base Installation
If the existing grommet hole comes with a plastic protector, remove it to ensure a flat surface before installing the desk
mount. Insert the assembled Bolt I through the desk hole, guide the Support Plate J and Nut H through the Bolt I ,
rotate the Nut H to fasten for stability.
2a Existing Grommet Hole Installation
J
H
0.4”-3.3”
I
