Walker C19i User Manual

Maintenance Instructions LUBRICATION
56
Ident Lubrication No.
No. Location Type Places
Ident Lubrication No.
No. Location Type Places
1 Deck Caster Wheel Fork Pivot Grease 2
2 Deck Caster Wheel Bearing Grease 2
3 Blade Spindle Grease
Δ
3
4 Pivot Assembly, Tilt-Up Deck Grease 4
5 Deck Support Arm Socket Grease 2
6 Right Angle Gearbox Oil*
Δ
1
7 Universal Joint Shaft Assembly Grease** 1(2
Δ
)
8 Dolly Wheel Retract Oil
Δ
1
Lever and Linkage
9 Dolly Wheel Pivot Grease
Δ
1
10 Idler Arm Pivot Grease
Δ
1
11 Tee Gearbox, Deck Oil* 1
12 Blade Drive Gearbox Oil* 2
13 Steering Lever Pivot Grease 4
14 Body Hinge Point Oil 2
15 Deck-to-PTO Coupling Grease 1
(Grease Spline Slide Area)
16 (FSC) Friction Body Pivot Grease 1
17 FSC Actuator Rod Pivot Pins Oil 2
18 FSC Lever Pivot Grease 1
19 Deck Support Arm Pivot Grease 2
20 Gear Axle Oil*** 2
21 Universal Joint Tube Assembly Grease** 1
22 Parking Brake Lever Pivot Grease 1
23 Universal Joint Quick Connect Grease 1
Spline (Grease Slide Area)
24 Hydrostatic Drive / Oil Reservoir Oil*** 3
25 Belt Tightener Pivot, Grease 1
Jackshaft Drive
26 PTO Clutch Lever Pivot Grease 1
27 Clutch Actuator Push Rod Grease 2
28 Belt Tightener Pivot, Grease 1
PTO Clutch
29 Brake Actuator Rod and Brake Oil 3
Band Pivot Pins (Clevis)
30 Throttle Control Cable Ends Oil 2
31 Brake Actuator Pivot Grease 1
32 Catcher Hinge Point Oil 2
33 Engine Dipstick / Oil Fill Oil*** 1
34 Belt Tightener Pivot, Grease 1
Blower Drive
35 Belt Tightener Pivot, Grease 1
Ground Drive
36 PTO Gearbox Dipstick Oil*** 1
37 Throttle Control Pivot Oil 1
* Gearboxes are permanently lubricated and sealed re-
quiring no scheduled lubrication. Oil level should be
checked only when an oil leak is noted. Refer to Mower
Deck Gear box Lubrication in this section.
** Greaseeverytwenty-ve(25)hours.
*** Refer to Gear Axle Lubrication, Engine Oil, Tractor
PTO Gearbox Lubrication, and Hydrostatic Trans-
mission Oil in this sec tion.
Δ
DS52 Belt-Driven Deck Only
NOTE: DC42 and DS52 Tilt-Up Decks are shown for reference.
For other Deck Lubrication Points, Refer to Deck and
Carrier Frame Illustrated Parts Manual.

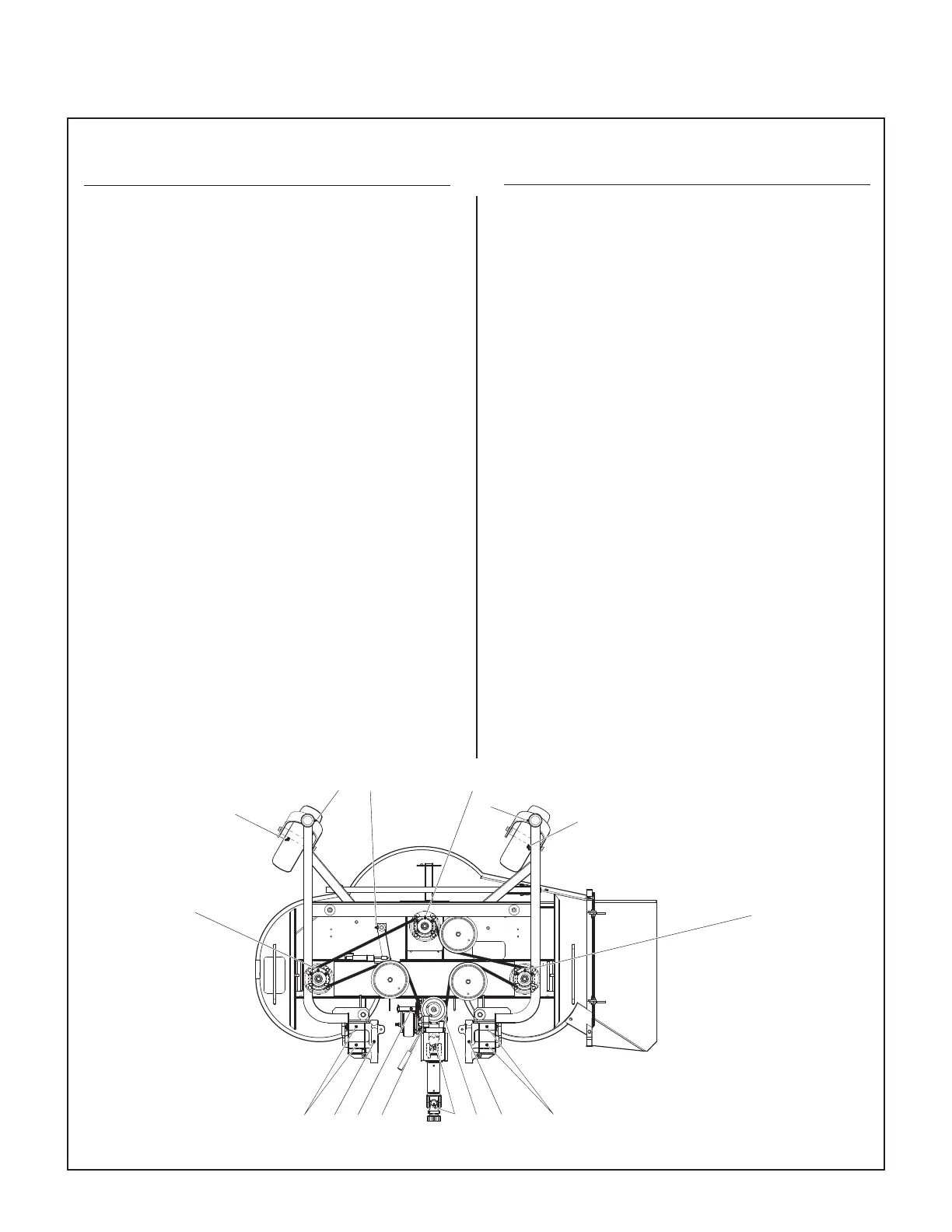

Lubrication Points for Optional Belt-Driven Decks (DS52 Shown)
3
4 895 7 6 5 4
1
3
2
1
2
3
10
