Safety Instructions
15

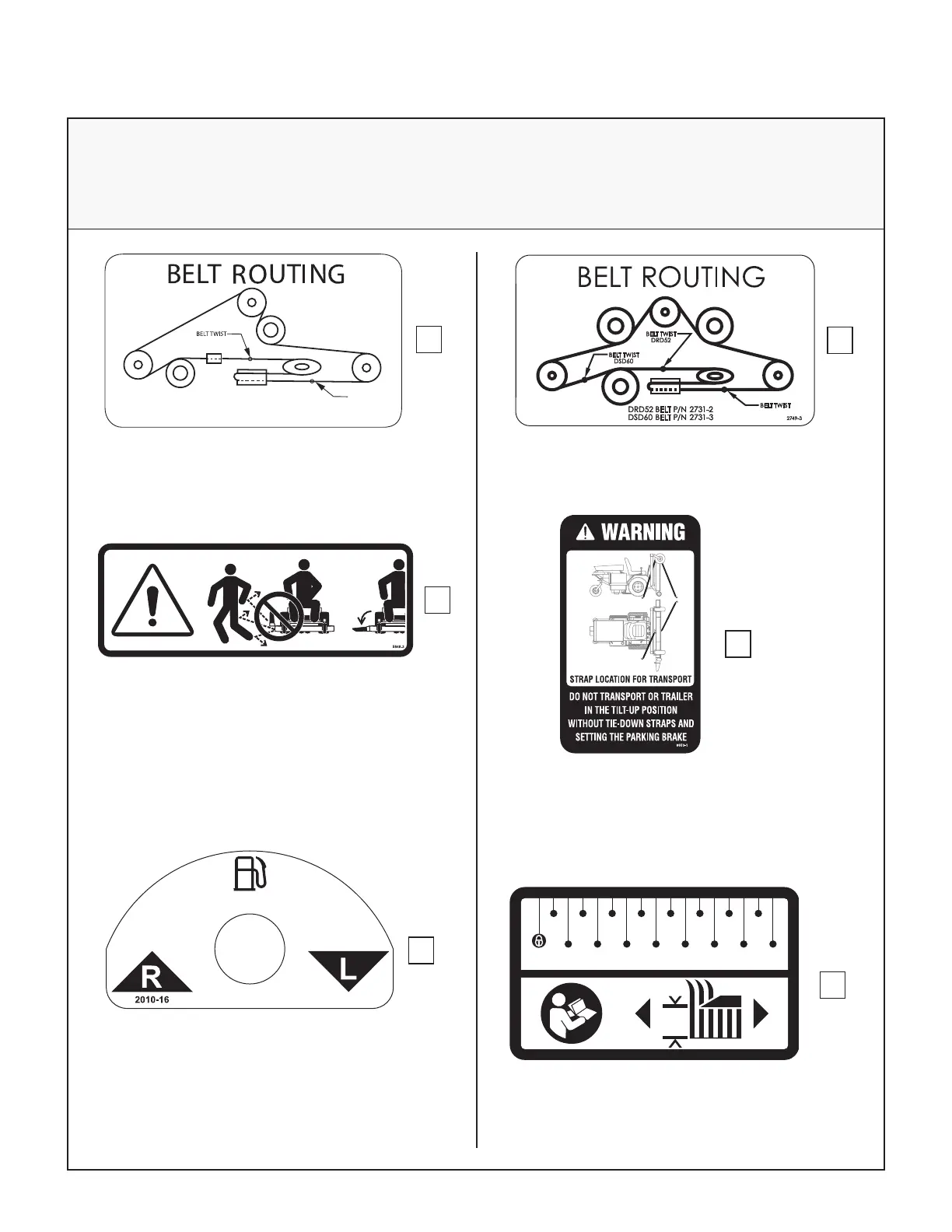

SAFETY, CONTROL, AND INSTRUCTION DECALS
Safety, Control, and Instruction Decals are installed on the machine;
if any are missing, illegible, or damaged, a replacement should be ordered and installed before
putting the machine into operation. The Decal Part Number is listed below and in the Parts Manual.
Location: Deck Housing Under Footrest
Part Number: 2749-7
1. Deck drive belt routing.
1. Fuel tank selector valve.
Location: Adjacent to Left Fuel Tank
Part Number: 2010-16
Location: Deck Discharge Shield (DS60)
Part Number: 5848-3
1. Warning – thrown object hazard.
● Always keep the discharge shield in the low
est position when operating.
● Do not remove the discharge shield.
Location: Top of Deck Housing
Part Number: 8653-1
1.
1. Warning – secure deck with straps and engage
parking brake before transporting or trailering
with deck tilted up.
Location: Deck Height Adjuster
Part Number: 2748-1
5.0
127
4.5
114
4.75
121
4.25
108
4.0
102
3.75
95
3.5
89
3.25
83
3.0
76
2.75
70
2.5
64
2.25
57
2.0
51
1.75
44
1.5
38
1.0
25
1.25
32
-
+
inch
mm
2748-1
1.
1. Move pin to desired height of cut.
1.
1.
1.
DR64 BELT P/N 2731-5
BELT TWIST
2749-7
Location: Deck Housing Under Footrest
Part Number: 2749-3
1. Deck drive belt routing.
1.
