Component Identication
9

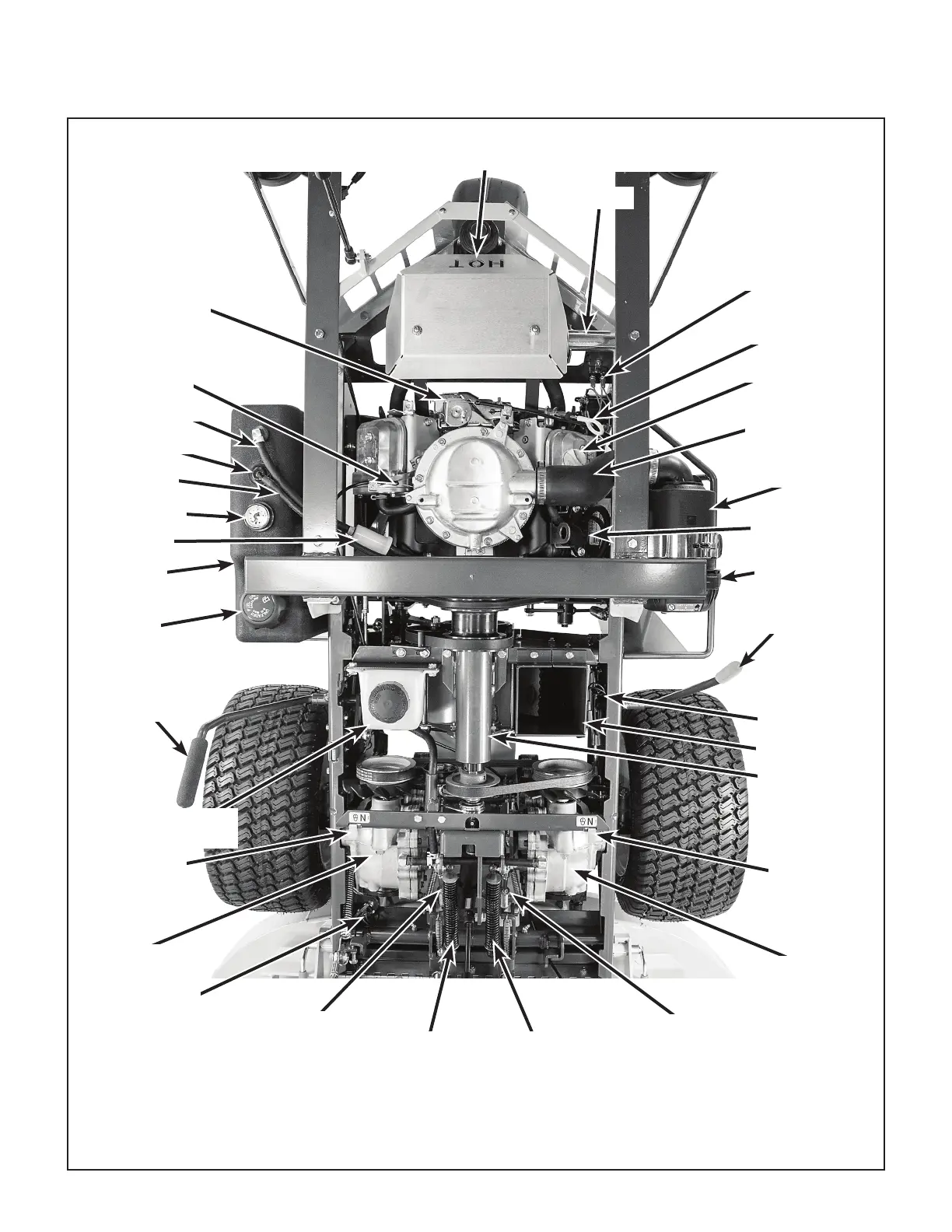

Top View (Body Raised)
Air Cleaner
Cover
Fuel Tank
PTO Clutch
Lever
Parking Brake
Lever
GHS Blower
Parking Brake
Safety Switch
LH Transaxle
Lockout Arm
RH Transaxle
Lockout Arm
RH Transaxle
Fuel Tank
Cap
Mu󰀪er
Heat Shield
Oil Fill
Dipstick
LH Transaxle
Fuel Filter
Transaxle Oil
Expansion Reservoir
Fuel Pickup Line
Rollover Valve
Fuel Gauge
EVAP Line
Throttle Linkage
Choke Linkage
Cummins/Fleetguard
Air Cleaner
Air Intake
Hose
Fuel Pump
RH Steering Lever
Spring / Dampener
LH Steering Lever
Spring / Dampener
LH Transmission
Control Rod
RH Transmission
Control Rod
Neutral Safety
Switch
Jackshaft
30 Amp
Circuit Breaker
Tailpipe
