Walker S18 User Manual

68
Maintenance Instructions REPLACING/REPAIRING
Engine Belt
1. To remove the engine belt:
a. Relax belt by raising the spring-loaded
idler pulley.
b. Roll the belt o󰀨 the pulleys and remove the
belt, then slowly release the idler pulley.

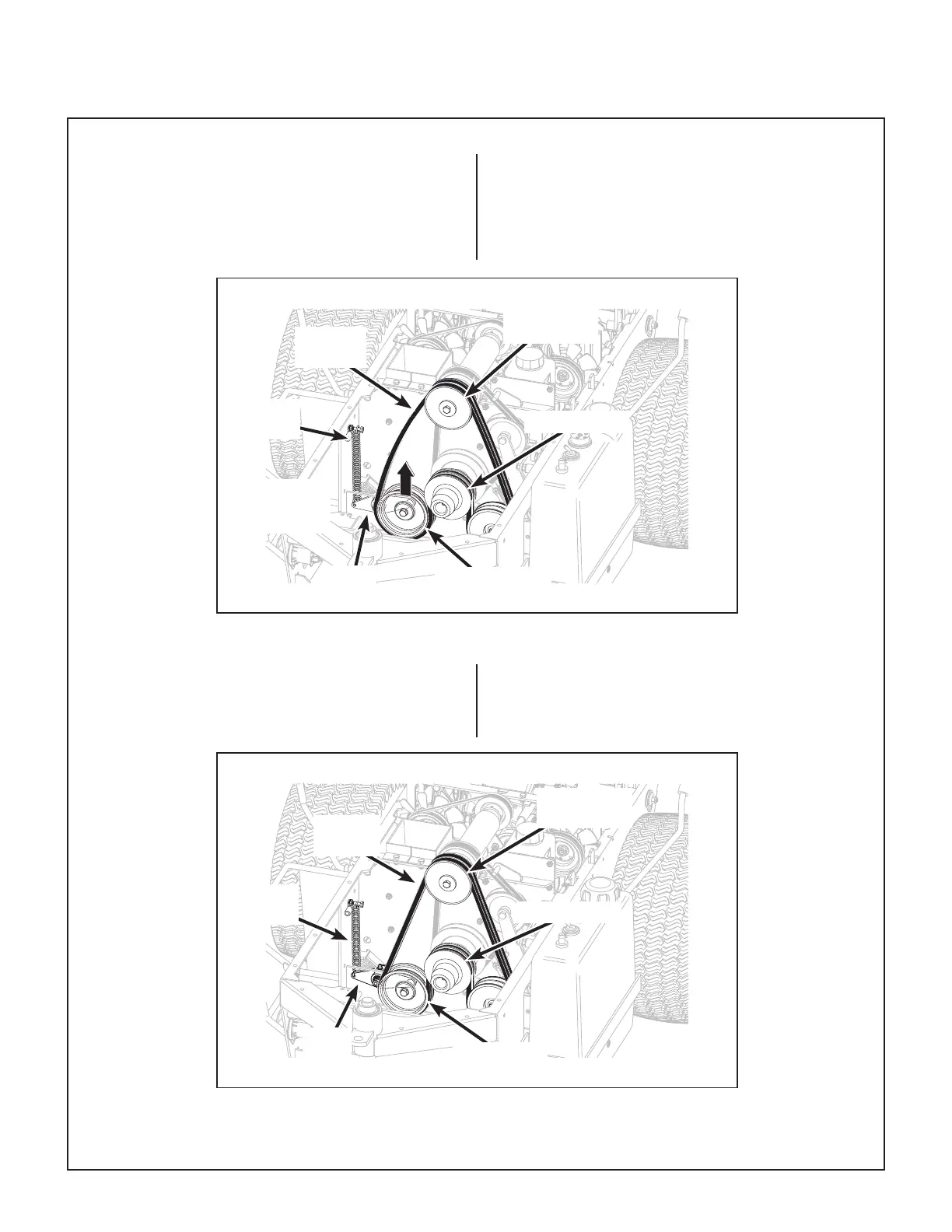

Engine Belt (Disengaged)
Engine Belt (Engaged)
2. To replace the engine belt:
a. Reverse the removal procedure to replace
the engine belt.
Idler
Arm
Engine
Belt
Compound
Pulley
Idler Pulley
Engine Pulley
Tension
Spring
Raise Idler
Pulley to
Relax Belt
Compound
Pulley
Engine
Belt
Belt Tightener
Idler Pulley
Engine Pulley
Tension
Spring
Idler
Arm
