Walker S18 User Manual

70
Maintenance Instructions REPLACING/REPAIRING
Ground Drive Belt
1. To remove the ground drive belt:
a. Raise the spring-loaded idler pulley to relax
belt.
b. Slide belt o󰀨 pulleys, then slowly release
the idler pulley.

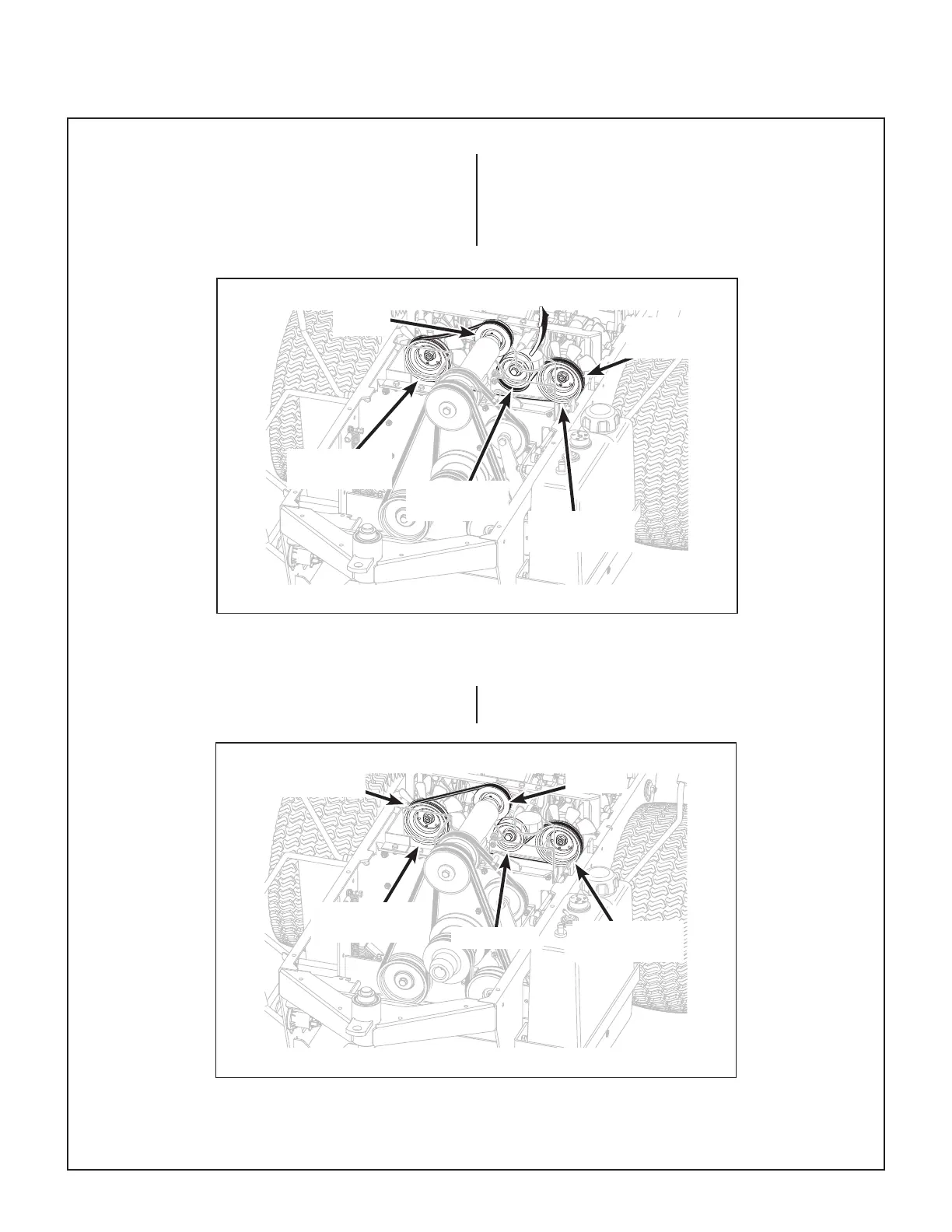

Ground Drive Belt Assembly (Disengaged)
2. Reverse the procedure to install the ground
drive belt.
Ground Drive Belt Assembly (Engaged)
Idler Pulley
RH Transaxle
Drive Pulley
Drive
Pulley
LH Transaxle
Drive Pulley
Ground Drive
Belt
Raise Idler Pulley to Relax Belt
LH Transaxle
Drive Pulley
Belt Tightener
Idler Pulley
RH Transaxle
Drive Pulley
Ground Drive
Belt
Drive
Pulley

Walker S18 Specifications

General

Drive System	Hydrostatic
Cutting Height	1.5 - 4.5 inches
Engine	Kohler
Cutting Width	48 inches
Transmission	Hydrostatic
