Operating Instructions
39

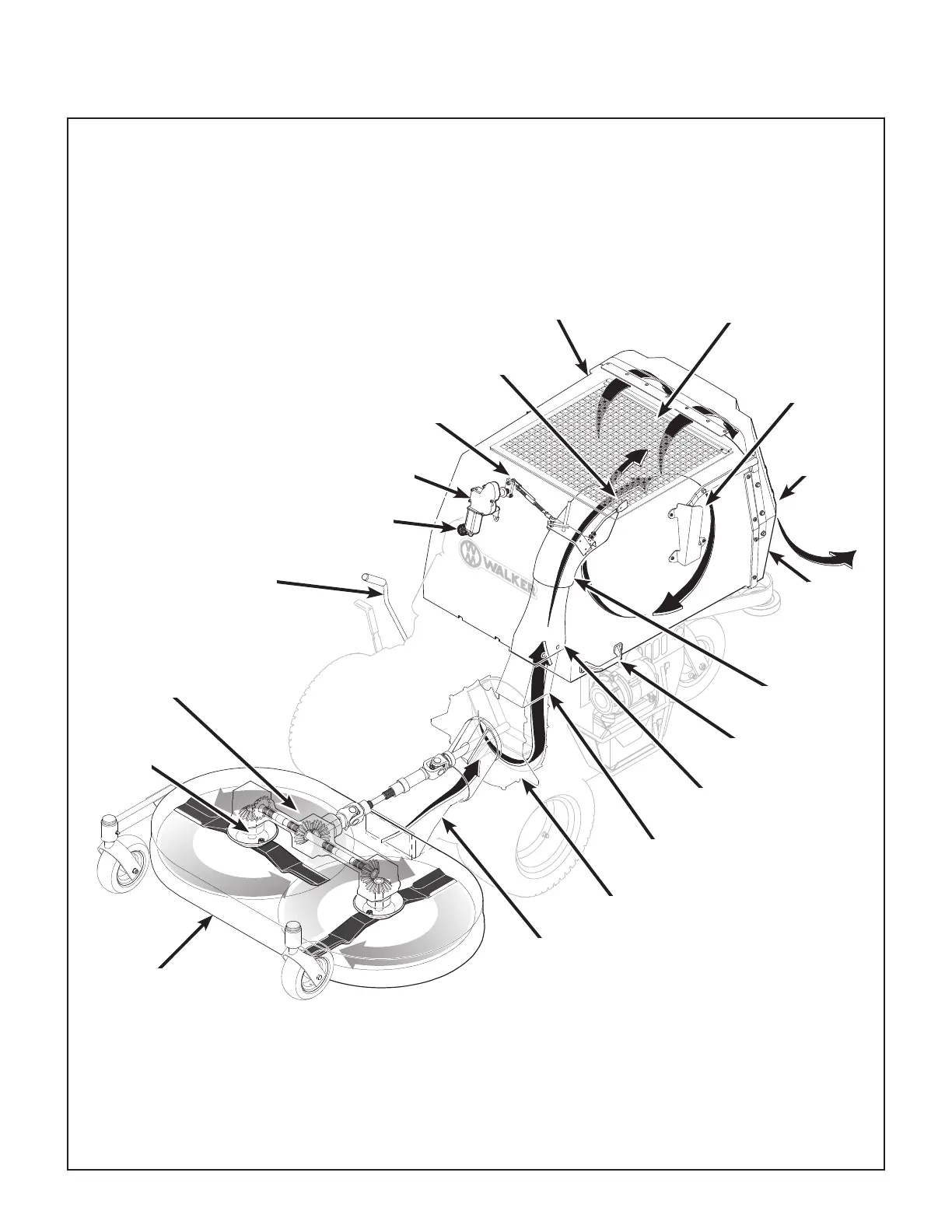

GRASS HANDLING SYSTEM (GHS)
Collection
Mower Deck
PTO
Clutch
Shear
Bolt
PTO and Blade
Gear Drive
Exhaust Screen
(Removable)
Catcher
Door Spring
(Not Visible)
Actuator
Rod
Powerl
®
Drive Motor
Grass-Pak
®
Vane Switch
“Full” Signal
Horn
Catcher
Door
Grass
Catcher
Catcher
Air Exhaust
Powerl
®
Delivery Spout
Dump
Handle
Catcher Delivery
Chute
Body Chute
Assembly
Blower
Deck
Discharge Chute
GHS Flow and Components
