Walker S18 User Manual

69
Maintenance Instructions REPLACING/REPAIRING
PTO Drive Belt
1. To remove the PTO drive belt:
a. Remove the engine belt, as described in
previous section.
b. Remove the two (2) wing nuts and belt
guide on the PTO Drive Pulley.
c. With the PTO clutch disengaged, roll the
belt o󰀨 the idler pulley and remove the belt.

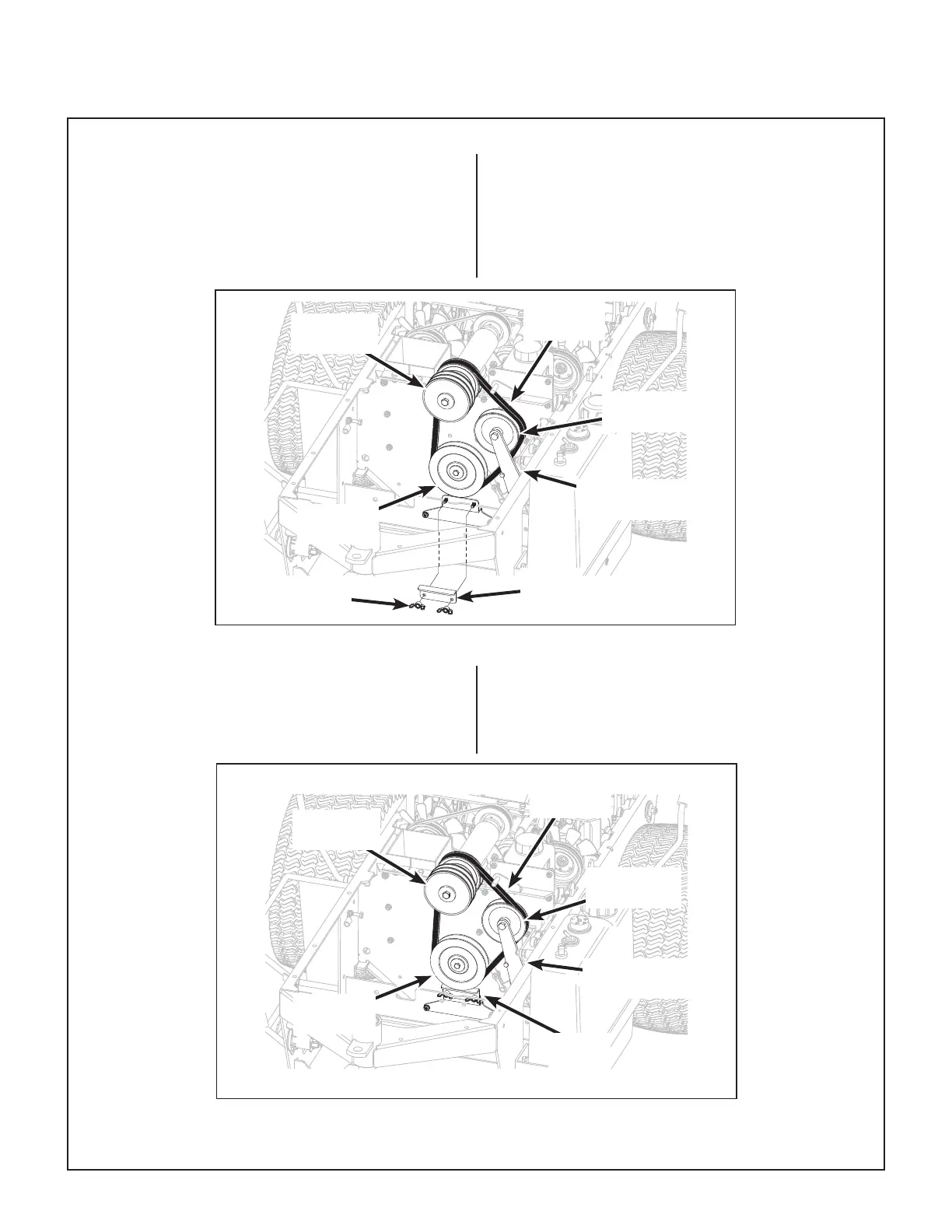

PTO Drive Belt (Disengaged)
PTO Drive Belt (Engaged)
2. To replace the PTO belt:
a. Install the PTO drive belt by reversing the
removal procedure. Replace engine belt.
NOTE: If installing a new PTO belt is di󰀩cult, the
blade brake band adjustment nut might need to be
loosened. If so, follow the Blade Brake Band Ad-
justment procedure in this section.
PTO Drive
Pulley
PTO
Drive Belt
PTO/Clutch/Brake
Actuator Arm
Compound
Pulley
Clutch Idler
Pulley
Belt
Guide
Wing Nuts
PTO Drive
Pulley
PTO
Drive Belt
Compound
Pulley
Clutch Idler
Pulley
PTO/Clutch/Brake
Actuator Arm
Belt
Guide

Walker S18 Specifications

General

Drive System	Hydrostatic
Cutting Height	1.5 - 4.5 inches
Engine	Kohler
Cutting Width	48 inches
Transmission	Hydrostatic
