74
Maintenance Instructions ADJUSTMENTS
Step 3 - Neutral Function Adjustment
1. With the Forward Speed Control (FSC) in NEU-
TRAL-PARK, the lever should be straight up.
Adjust the angle of the FSC lever by removing
the ball joint on the lever end of the FSC Rod,
loosen the jam nut, adjust the rod length. Once
it is the correct length, tighten the jam nut and
reinstall the ball joint.
NOTE: For tractors with a serial number prior to
157301, adjust by loosening the jam nuts on the
FSC Rod and turn the rod to attain the straight up
position. Tighten the jam nuts.

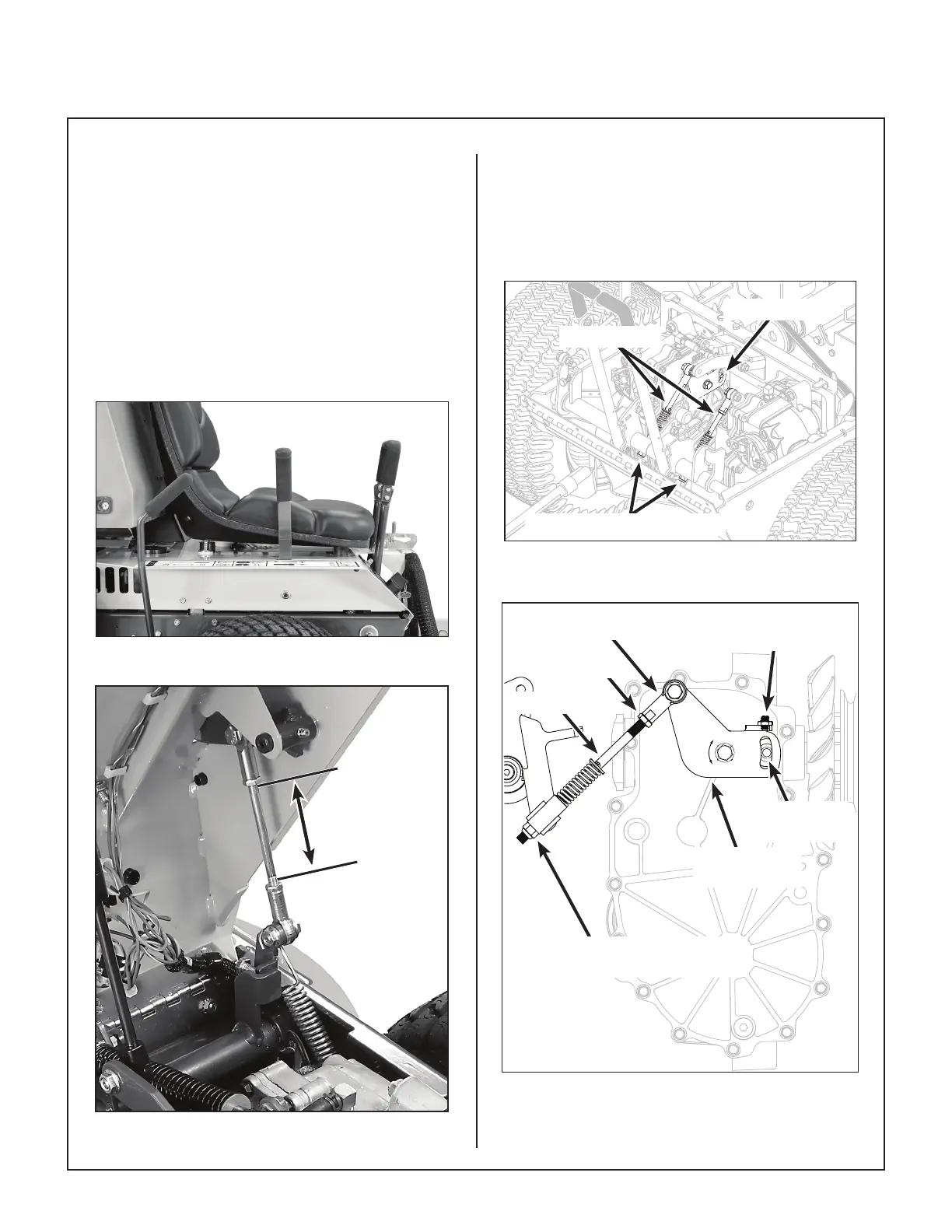

Correct FSC Lever NEUTRAL-PARK Position
Adjust Length of
Rod to Position
FSC Lever
FSC Lever Position Adjustment
2. Securely block the tractor up so the drive tires
are o the ground.
3. Adjust the tracking adjustment nuts at the front
of both control rods so that 2 or 3 threads are
visible, then loosen the jam nuts on the ball joints
at the back of the control rods.
Control Arm
Control Rods
Tracking Adjustment Nuts
Transmission Control Rod and Arm Location
(Shown with Parts Removed for Clarity)
FWD
REV
Control Rod
Locating/Limit
Stud
Transmission
Control Arm
Tracking Adjustment Nut
(Adjusts Length of Control Rod)
Maximum Speed
Adjustment Set Screw
Ball Joint
Jam Nut
Tracking Adjustment Components
To Next Page
