Maintenance Instructions ADJUSTMENTS

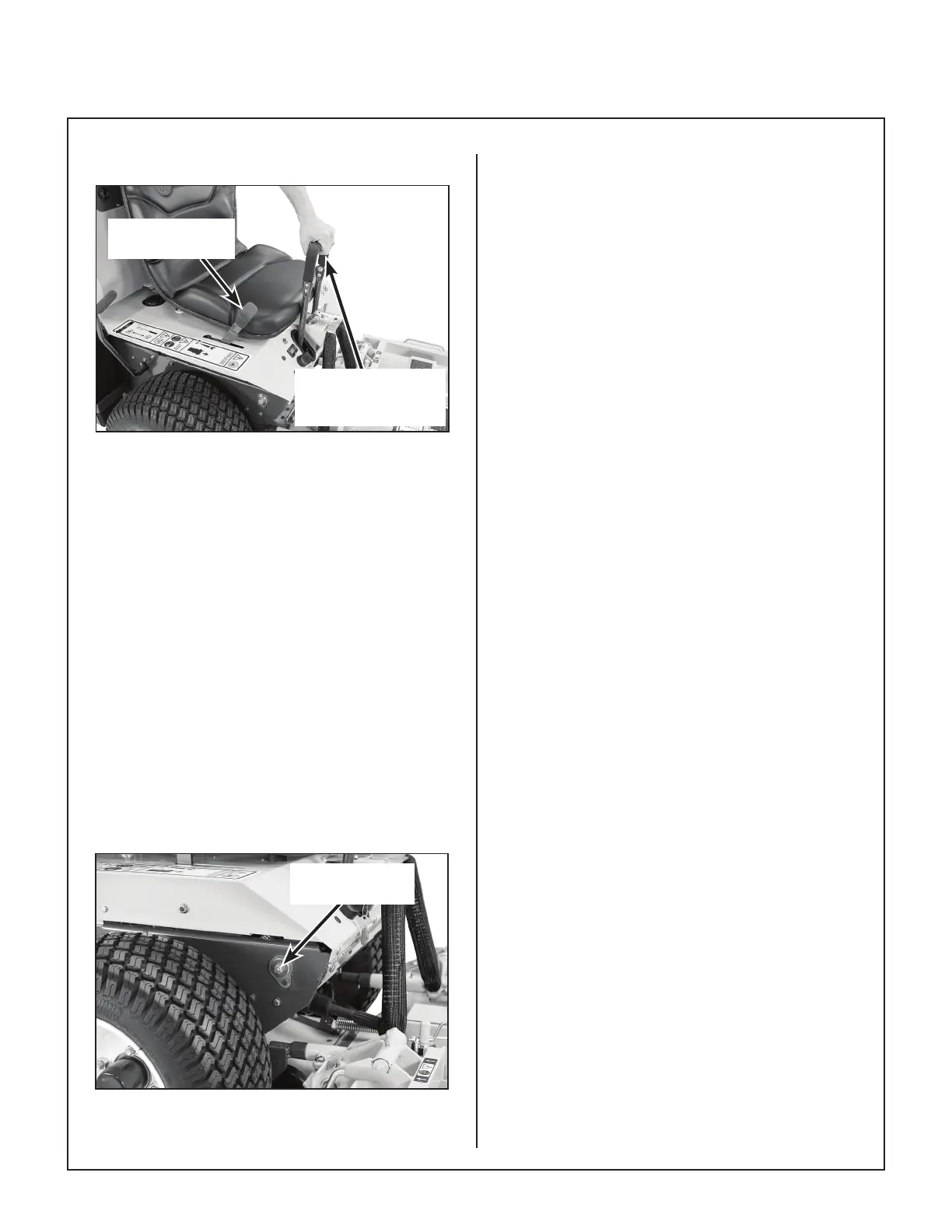

Step 7 - Forward Speed Control Friction Adjustment
FSC Full
Forward Position
Pull Steering Levers
Back To Check
Friction Lock
FSC Friction Adjustment Test
(Checking Friction Lock)
1. Place the FSC lever in the full FORWARD
position, and pull both steering levers fully back;
the FSC lever should not move. If the FSC lever
moves back the friction needs to be in-
creased.
2. With the steering levers held back, move the
FSC lever back from the FORWARD position.
With a proper amount of friction adjusted, the
FSC le ver should move back with a slight
amount of re sistance (friction). If the FSC lever
movement is “sti”, the friction needs to be
decreased.
3. The FSC friction is increased or decreased by
tightening or loosening the friction adjust-
ment nut. Loosen or tighten the nut and check
the control function until the conditions of both
steps 1 and 2 (above) are met.
FSC Friction
Adjustment Nut
FSC Friction Adjustment Nut
