Safety Instructions
15

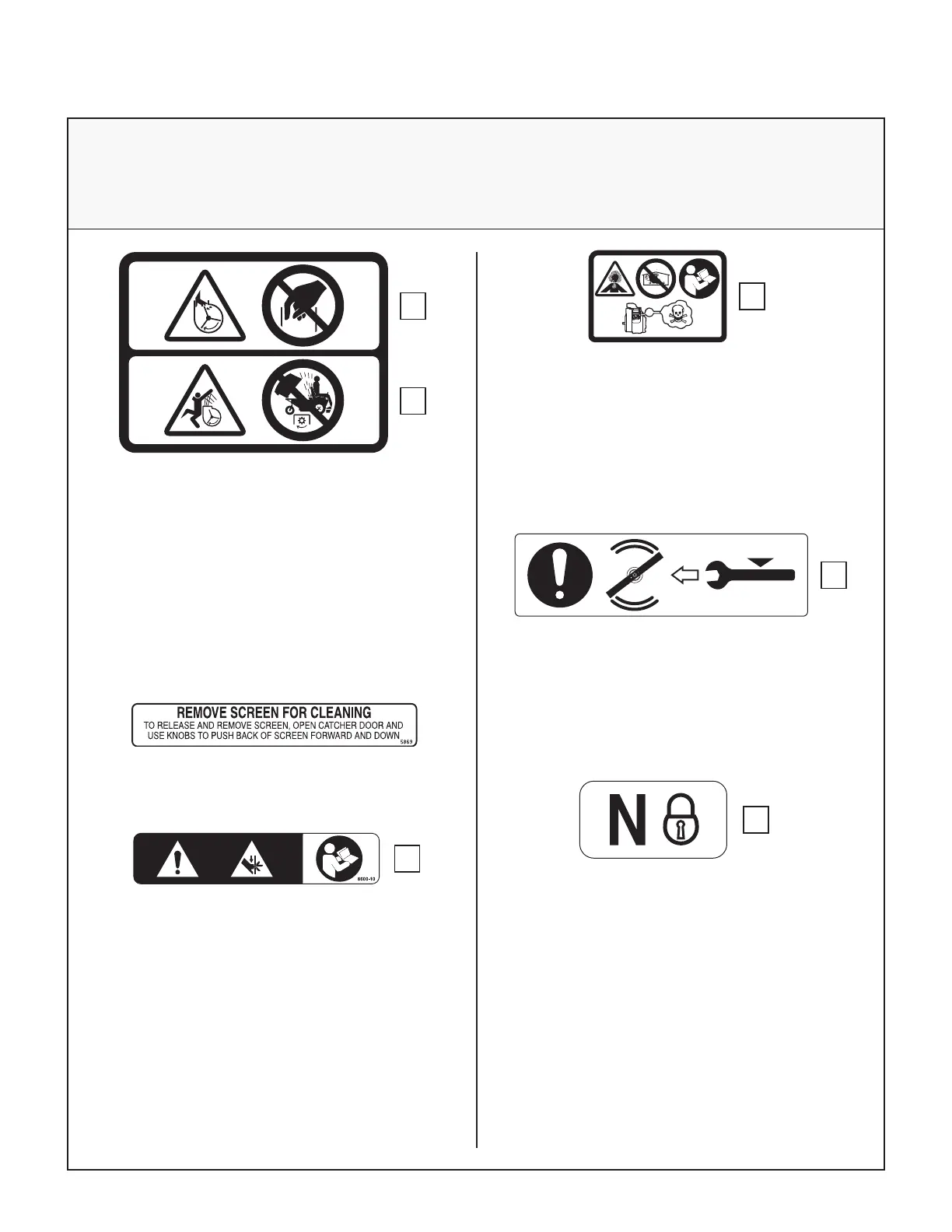

SAFETY, CONTROL, AND INSTRUCTION DECALS
Safety, Control, and Instruction Decals are installed on the machine;
if any are missing, illegible, or damaged, a replacement should be ordered and installed before
putting the machine into operation. The Decal Part Number is listed below and in the Parts Manual.
Location: Adjacent to Blower Discharge
Chute through Body
Part Number: 8600-4
1. Warning - rotating impeller is a cutting/dismem-
berment hazard to ngers and hands.
● Never reach down into the blower discharge
chute.
2. Warning - thrown object hazard.
● Never engage the PTO with grass catcher
raised.
8600-4
1.
2.
Location: Rear of Grass Catcher Exhaust Screen
Part Number: 5869
Location: Top of Engine
Part Number: 8600-12
1. Warning – carbon monoxide (CO) poisoning
hazard.
● CO emitted by a running engine can be deadly.
● Do not operate indoors or in other enclosed
areas.
8600 -12
1.
Location: Gearbox Cover
(Gear Drive Decks Only)
Part Number: 8600-9
1. Tighten blade nuts on gear driven decks to
60 lb
·ft (81 N·m).
1.
8600-9
60 lb·ft (81 N·m)
Location: Chassis Member Behind Transaxles
Part Number: 9804-1
9804-1
1.
1. Neutral Lock
● Lift and move into slot to unlock transmis-
sion and allow machine to freewheel.
1.
1. Caution - Pinch point.
● Keep all body parts clear when closing grass
catcher door.
Location: Catcher Door Hinge Bar,
LH and RH Sides
Part Number: 8600-10
To Next Page
