Installation
Fastening the device

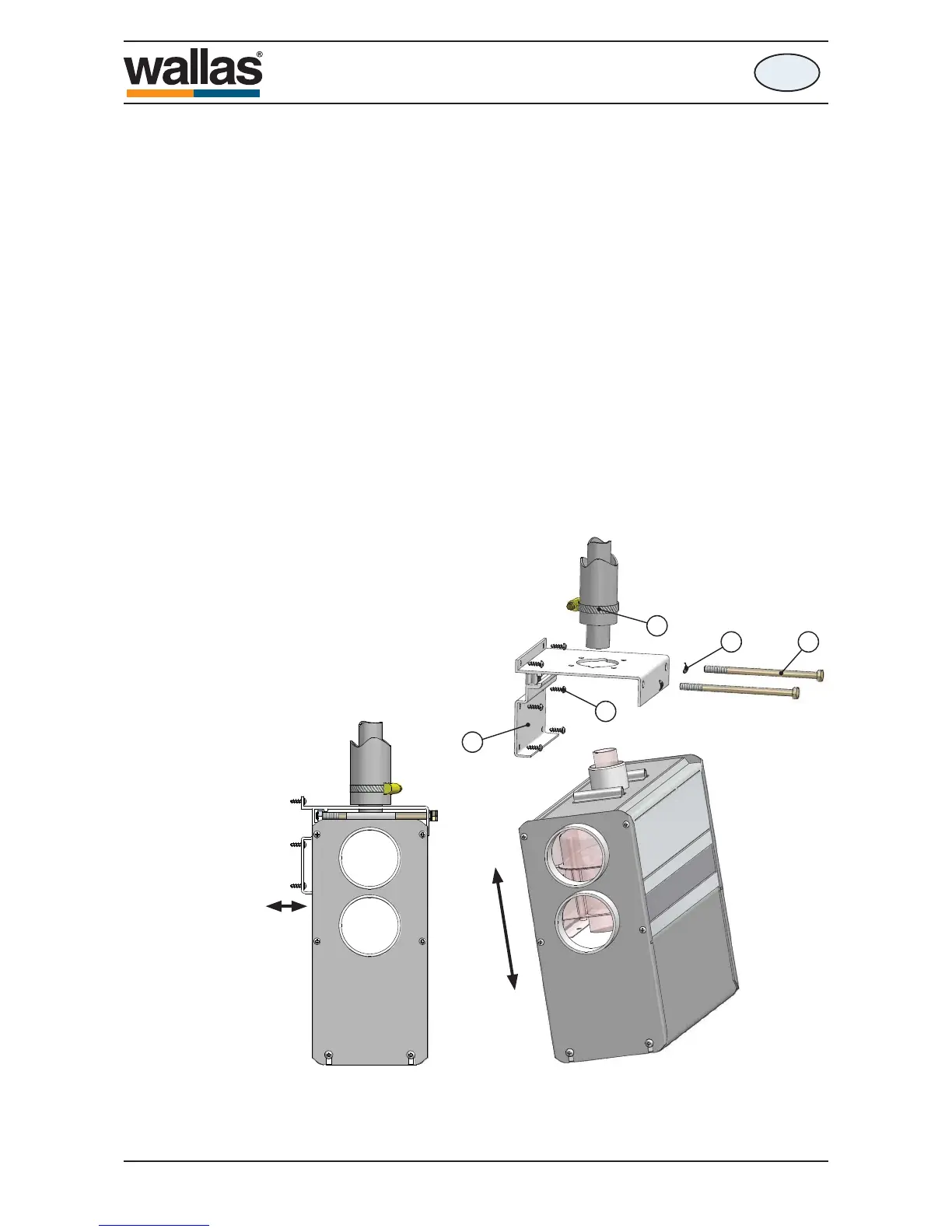

Fix the mounting plate (1) with screws (4) to a suitable place and check that the
bottom of the heater is in horizontal position.
Lift the heater into the installation plate and lock the device with the mounting bolts
(2). There has to be a corrugated base plate (3) under the head of the screw. Be
sure that the edge of the mounting plate will lock to the slot in the side profi le of the
heater.
Connect the exhaust gas pipe with a hose clamp (5).
1800 t / 2400 t
