wallas 2400 t User Manual

- 73 -
X
311 mm
125 mm
381 mm
70 mm
1k
1
43
2
43
45
42
47
44
43
41
3
2
1
J
40
J
47
40
44
45
43
1k
3
42
en
Installation

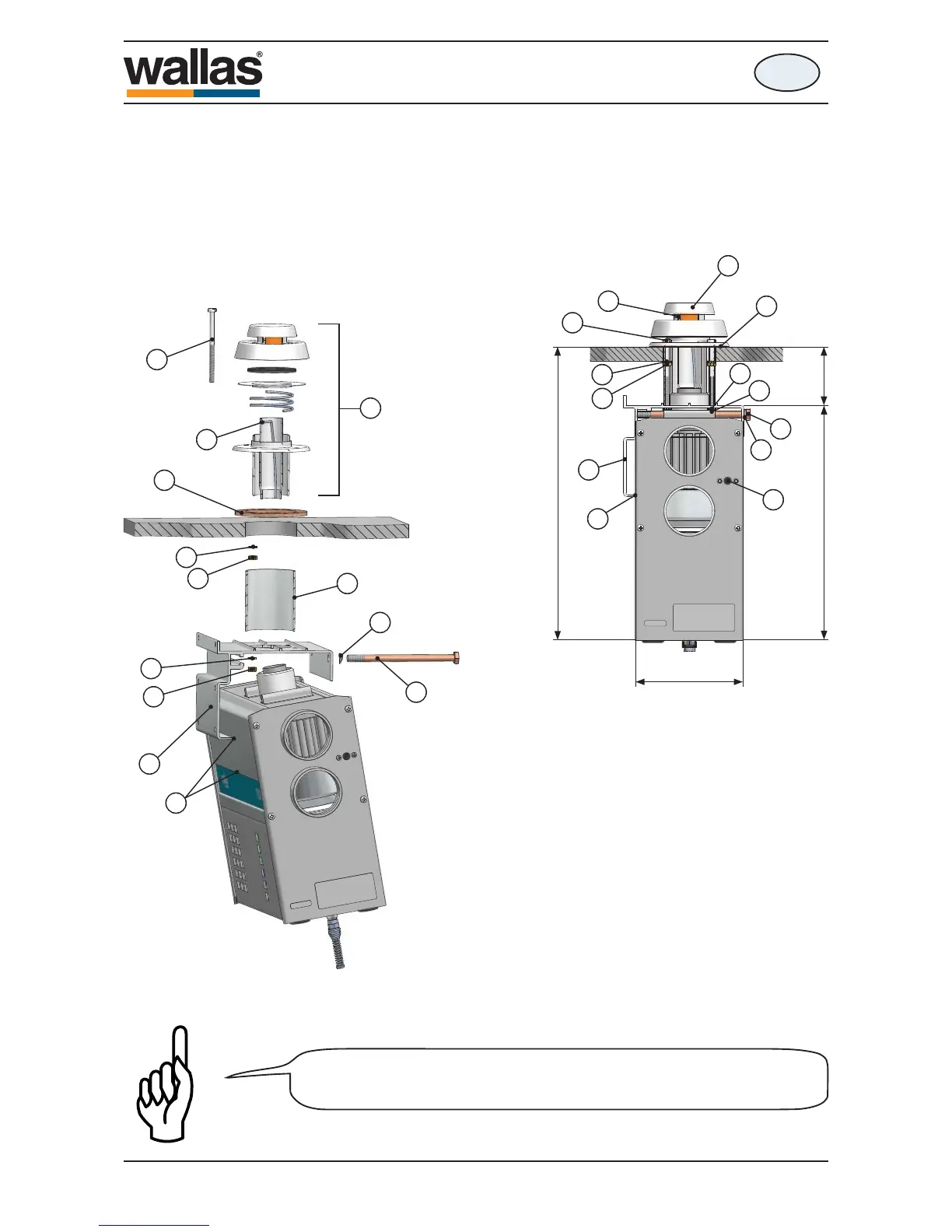

Direct attachement to exhaust on deck
• Exhaust head 2460 closes by pressing down and turning clockwise, opens by
turning counterlockwise.
• Exhaust head is opened for mounting by pressing in the pin (J) with screw-
driver etc. from outside.
• Gasket (47). Important that the gasket surfaces and the take through hole are
carefully sealed with silicone seal.
• The exhaust head is mounted on deck with bolts
(42) M5 x 85 and nuts (43) with lock washer (44)
under. Tight the nuts, but not so hard the base
plate deforms.
• Place the spacing tube (41) and mounting plate
(1) on bolts (42) and fasten with nuts (43) with
lock washer (44) under. Tight the nuts, but not so
hard the exhaust base plate deforms.
• Check and retight the nuts (43).
• Place the heater on mounting plate (1). The cant
(1k) helps to hold up the heater. Check that the
heater exhaust pipe goes well in the exhaust head
middle pipe.
• Fasten the heater on mounting plate (1) with bolts
(2) M8 x 120 mm and tight them..
Check that the heater is mounted so that the overheating cut-out reset
buttom (X) is accessible for hand.
1800 t / 2400 t
490535
en
