Installation

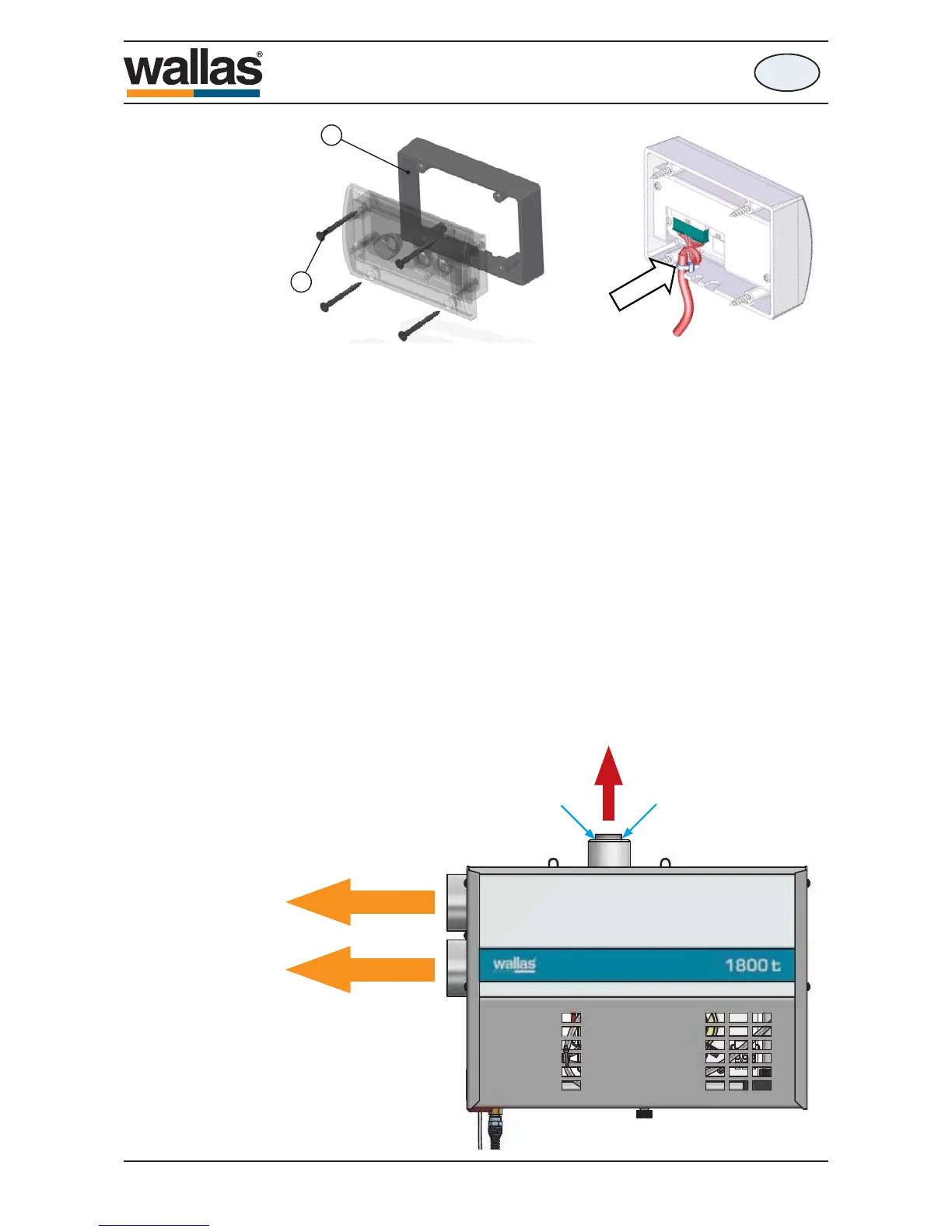

An extension collar (11) is used when control
panel is surface mounted.
The box of the panel includes 4 pcs screws 3,5
x 40mm (black) TX10 (13).
When installing the control panel surface
mounted (using the collar) , a loop to the
control panel cabel must be done. A cable
tie must be attached to cable in order to
avoid the cable detach from the connec-
tor.
Connections of the device
Things to note about the connections
In installation, to make the mounting and demounting for service easier, it is recom-
mended to leave some extra length of loose cables and fuel line by creating a coil.
WARM AIR
OUT
EXHAUST
OUT
COMBUSTION AIR
IN
1800 t / 2400 t
490535
