CHAPTER 13 APPENDIX
BAT Battery voltage has dropped below 11.2 V: Be prepared that
the error message 3 (LOW BATTERY) will appear when
START is applied.
ACT Actinic illumination is running.
A+Y Actinic illumination with terminal YIELD-determination
(menu point 12) is running.
CLK REPETITION-CLOCK (menu point 28) is running.
LC Automatic recording of a LIGHT CURVE (menu point 17) is
running.
LC+ Automatic recording of a LIGHT CURVE + RECOVERY
(menu point 18) is running.
IC Automatic recording of an INDUCTION CURVE (menu
point 21) is running.
IC+ Automatic recording of an INDUCTION CURVE +
RECOVERY (menu point 22) is running.
REC Recovery part of LIGHT INDUCTION CURVE is running.
SAT A saturating light pulse is applied for YIELD-determination.

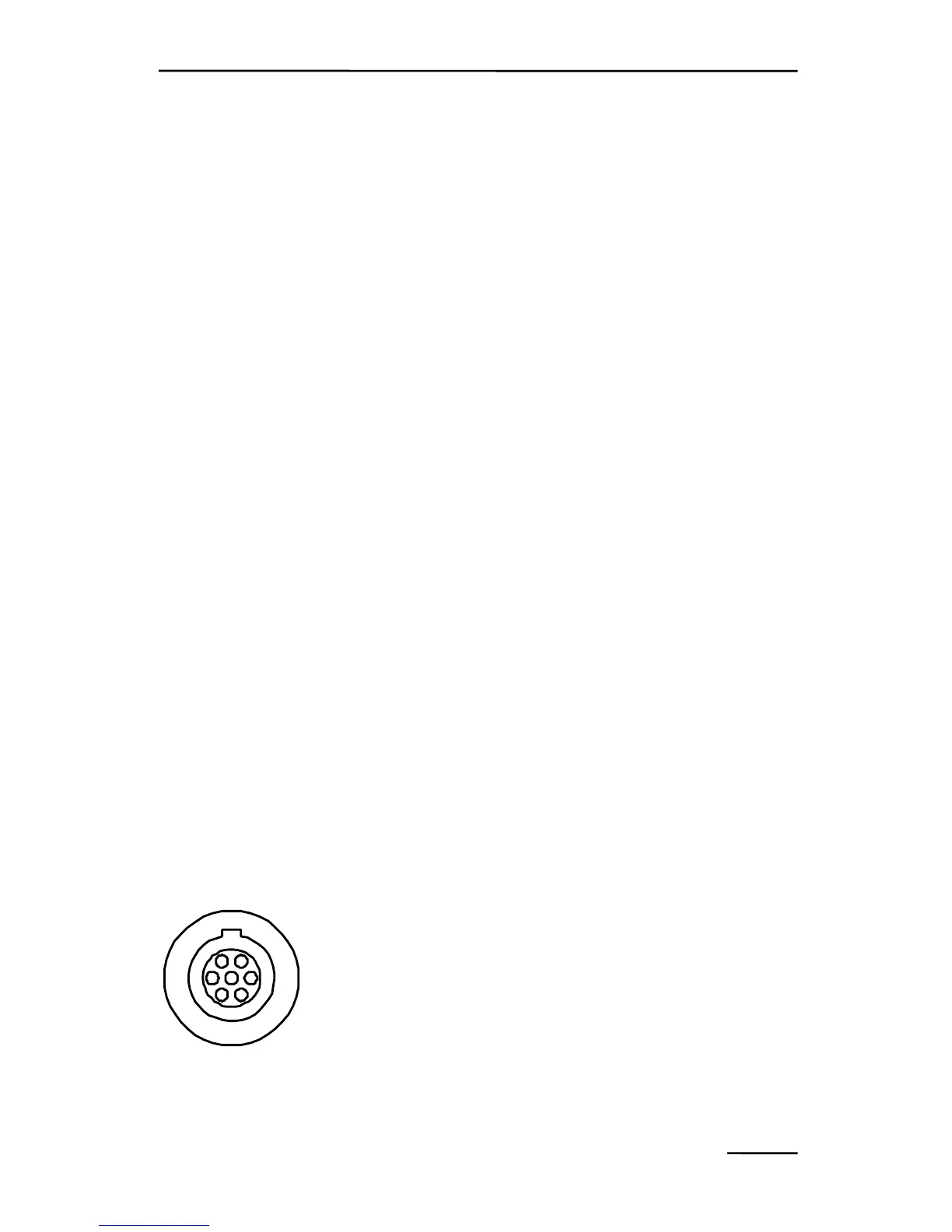

13.3 PIN-assignments
"LEAF CLIP"
7
6
5
43
2
1
1: +5 V
2: GND
3:
Analog inputs Leaf-Clip Holder
4:
2030-B or Micro Quantum/Temp.-
5:
Sensor 2060-M
6: Remote control button
7: -5 V
93
