Wanco Metro Variable Message Sign - Figure 4-4 Deploying the Sign

Owner’s Manual 19
Wanco® Metro™ Message Sign

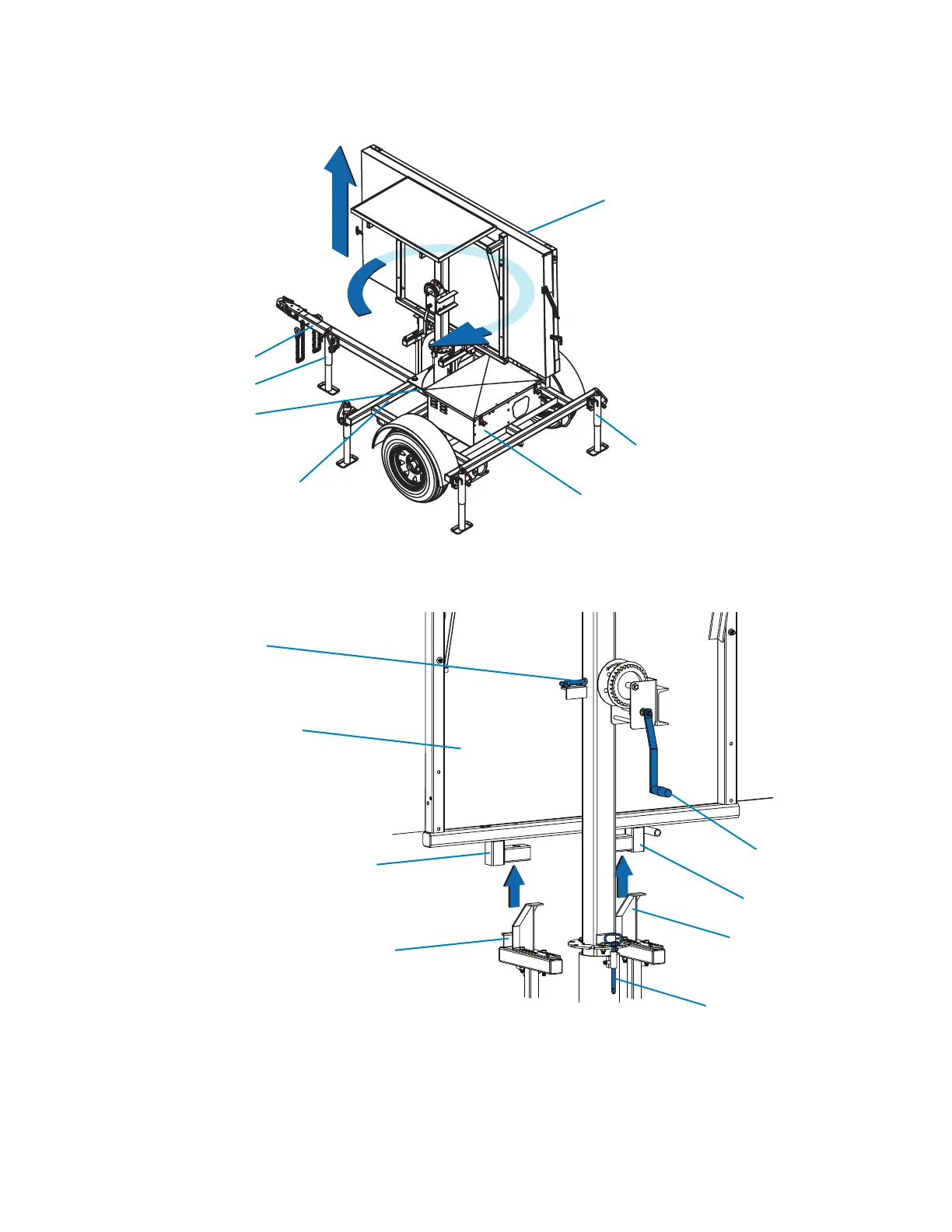

Figure 4-4. Deploying the sign
Battery box
Leveling jack
(one at each corner of trailer)
Drawbar
Drawbar jack
Message sign
display cabinet
Back of sign
display cabinet
Detail view
Rotation locking-pin
Front travel cradle
Hand-operated
winch handle
Support leg
Height locking-pin
Rear travel cradle
Support leg
Vehicle
identification tag
Drawbar bolts
