Wanco Metro Variable Message Sign - Figure 6-5 Replacement Parts: Trailer Assembly

Owner’s Manual 53
Wanco® Metro™ Message Sign

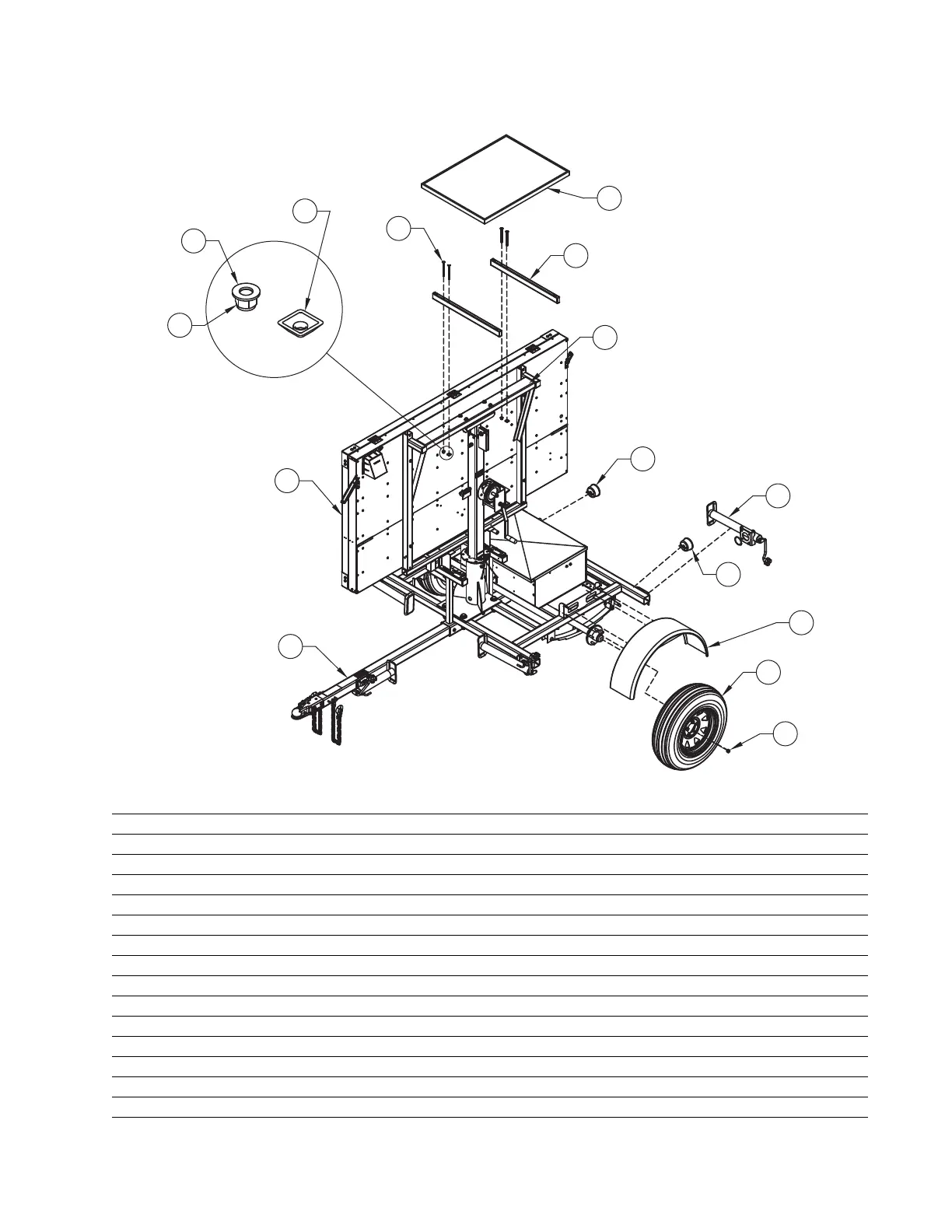

Figure 6-5. Replacement parts: trailer assembly
Item No. Part No. Description Qty.
1 213708-P2 FR,CAB,WTSP,VTWR,W/BAT BX,BLK 1
2 108797-000C1 DWBR,TRLR,CMN SM,DOM,2"BALL,PDR 1
3 108420-200P1 FNDR,RND,CMN,SM TRLR,BOLT ON,ORN 2
4 105653-001 NUT-SCTY,SLOPED,.375(3/8)-16,ZP 2
5 104591-001 TIRE/WHL ASSY,4.80-12BB,DIAMOND SPK 2
6 104178-001 WSHR-.406(3/8)x.875x.045,SS 2
7 101323-001 LUG NUT 10
8 100259-001 TAIL LT-STOP,TURN&TAIL,NO LICENSE 1
9 100258-001 TAIL LT-STOP,TURN&TAIL,LICENSE 1
10 100143-001 JACK,SWVL,TM,2K,TW,13"TRVL,W/BASE 4
11 100073-001 NUT-HEX,NYLinsr,.375(3/8)-16,ZP,COU 2
12 214249 SCR-CRG,.375(3/8)-16x4.000,G5,ZPS 4
13 213706 TUBE,MNT,WCMN,SLPNL,VTWR,LONG 1
14 213703 SGN ASSY,MSG,VTMM,FLT,LG,AMBR 1
15 202485 SOL PNL SUBASSY-85W,WIRED 1
12
4X
11
2X
6
2X
4
2X
13
2X
15
8
1
2
14
9
10
4X
5
2X
7
10X
3
2X
