Wanco Metro Variable Message Sign - Figure 6-8 Replacement Parts: Drawbar Assembly

56 Owner’s Manual
Wanco® Metro™ Message Sign

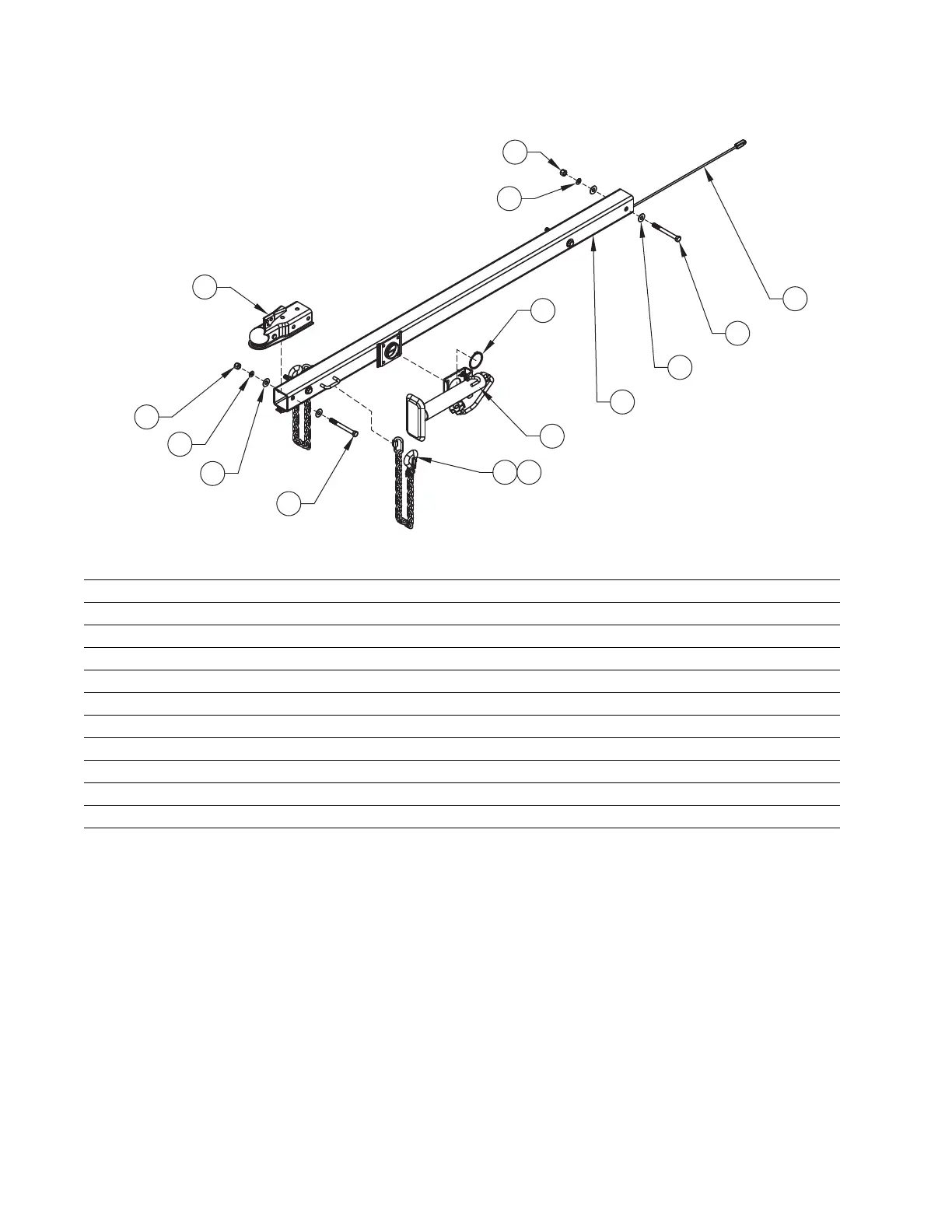

Figure 6-8. Replacement parts: drawbar assembly
Item No. Part No. Description Qty.
1 100216-017 SCR-HEX,.500(1/2)-13x5.000,G5,ZPS 4
2 100652-001 NUT-HEX,.500(1/2-13),ZP 4
3 106006-001 WSHR-FLAT,M14,S.S. 8
4 100713-001 LKWSHR-SPLIT,.512(1/2)X.869X.125,ZP 4
5 101677-002 HITCH-BALL,2"DIA,FITS 3"DRAWBAR 1
6 100943-001 JACK,SWVL,TM,2K,TW,10"TRVL,W/BASE 1
7 102919-003 RING-SNAP,FULTON SWIVEL JACKS,2.50" 1
8 103409-001P1 DWBR,TRLR,CMN SM,DOM,2"BALL,ORN 1
9 104859-001 CHAIN ASSY,1/4" W/HOOK-CLEVIS SLIP 2
10 201432 LINK-QUICK,5/16"X2 7/8"LONG,1540 LB 2
11 105061-003 HARNESS-TAILLIGHT,MAIN,128" LONG 1
