Wanco Metro Variable Message Sign - Figure 6-7 Replacement Parts: Display Cabinet Assembly

Owner’s Manual 55
Wanco® Metro™ Message Sign

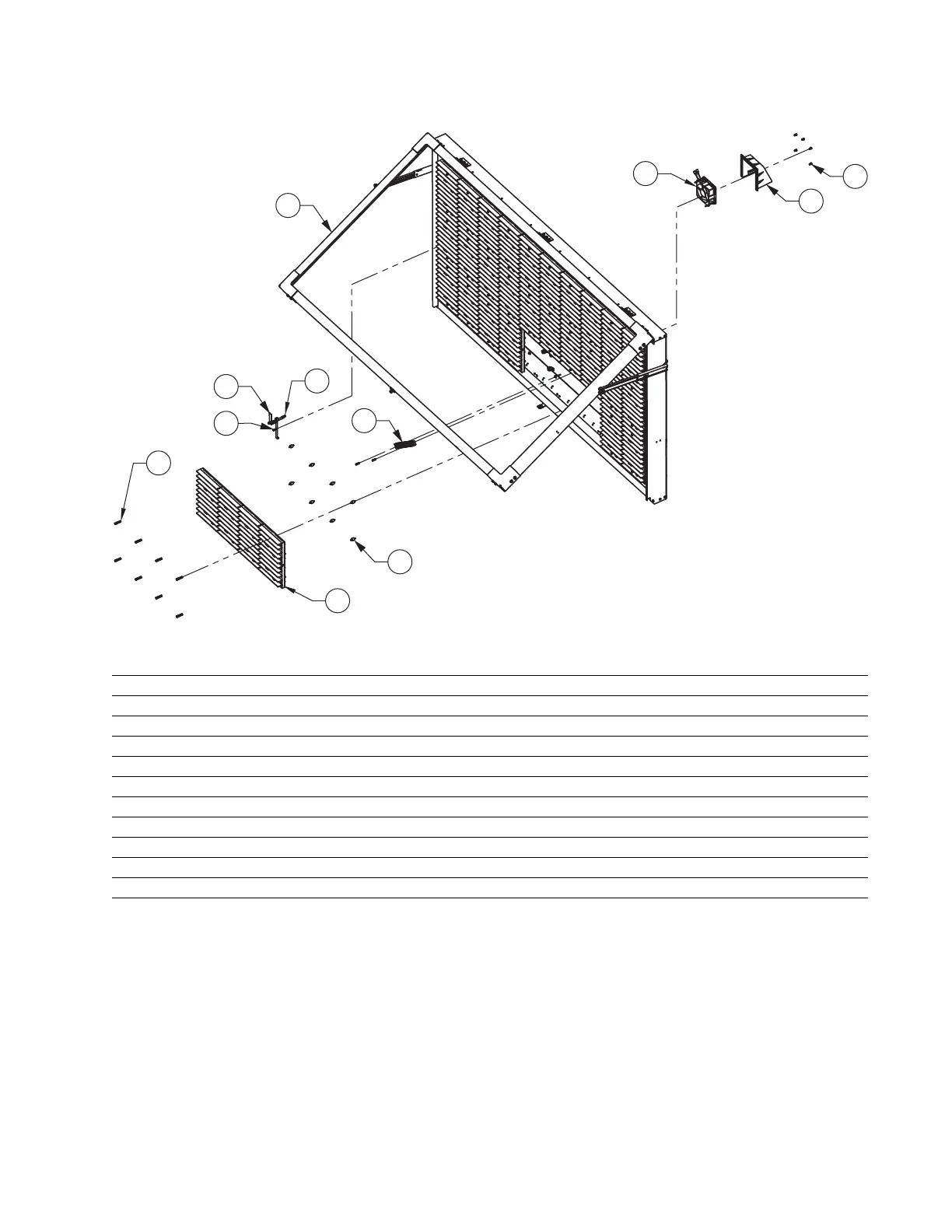

Figure 6-7. Replacement parts: display cabinet assembly
Item No. Part No. Description Qty.
1 102314-001 VIB MOUNT,CR45,8-32 M/M 60
2 102873-001 FAN,BBRG,120X120X38MM,109CFM,12VDC 1
3 103097-001 TERM BLOCK-.438 PITCH,#6 SCR,20X 1
4 106051-001 STDF-HX,F/F,# 8-32x.875,AL,BLK 3
5 106343-001 SCR-PAN,832UNC X .50L,CONE SEMS 4
6 106543-001 FAN HOLDER/COVER,MB CABINET 1
7 106850-001 PCB ASSY MINI PHOTOCEL 1
8 107557-001 NUT,#8-32,EXT AL,MB 60
9 204071 CHARACTER ASSY-9" LED BOARD EU-MINI 15
10 208223-P2 BRKT,MNT,WVTM,MAT CAB,PHCL 1
11 213697 WDW,DOOR,WTMM,FLT CAB,LG 1
1
60X
2
3
4
5
5X
6
7
8
60X
9
15X
10
11
