3402
5.2.2.4
Power
Supply
Assembly
(Figure
5-7)
Removal:
o
Disconnect
the
two
Motherboard
Molex
connectors
from
the
Power
Supply
and
the
third
connection
from
the
power
supply
to
the
monitor
electrics
board.
o
Disconnect
the
AC
molex
connector
between
the
power
line
filter
assembly
and
the
power
supply
or
the
three
wires
(brown/green/blue)
at
the
base
of
the
power
supply.
o Remove
the
2-11/32"
hex-head
nuts
(rear)
and
2
phillips
screws
with
washers
(front)
securing
the
power
supply
to
the
workstation
base
plate
•

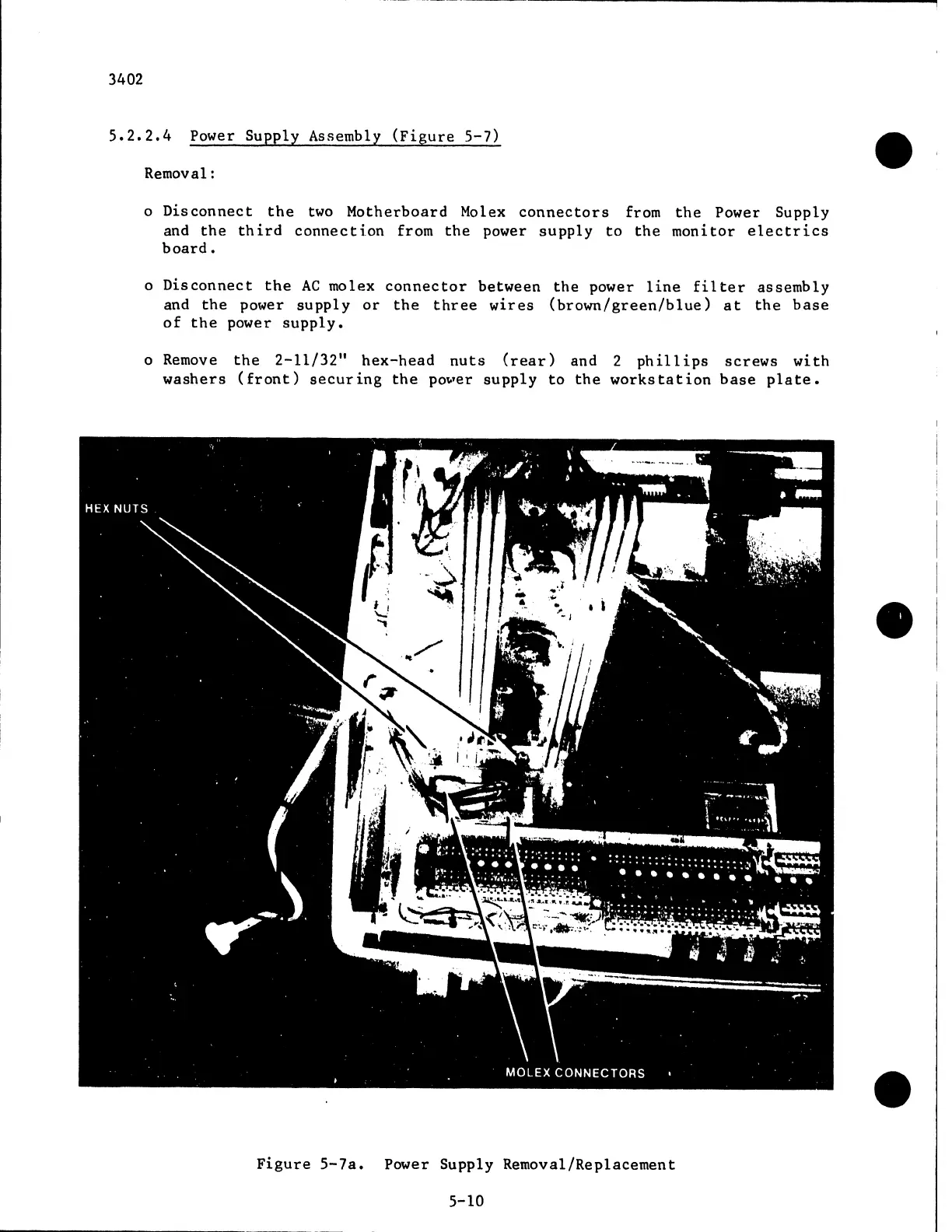

Figure
S-7a.
Power
Supply
Removal/Replacement
5-10
•
•
•
