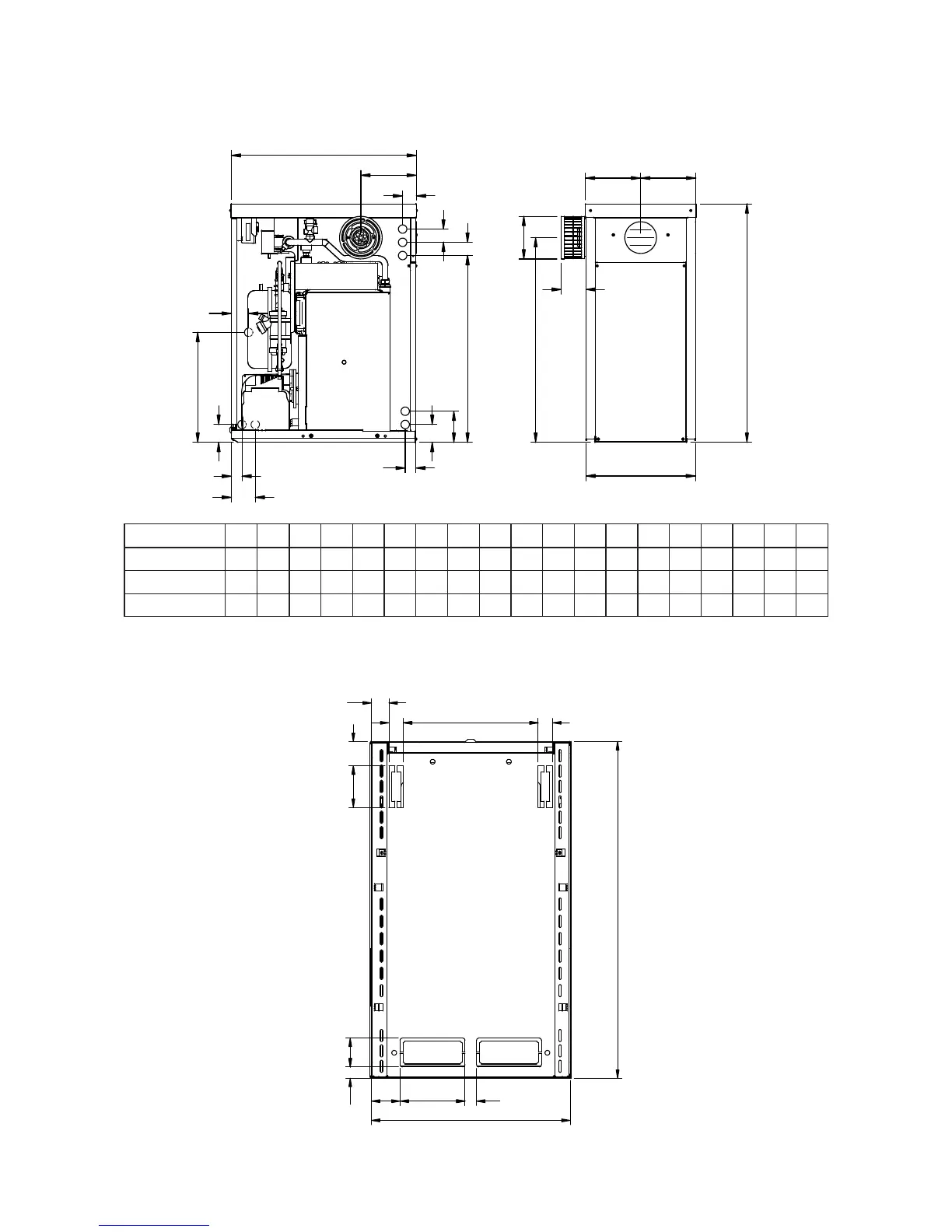

2.2.4 K-Series Kabin Pak (KHE, KPHE & KSHE Models up to 120HE)











 







K120HE DIMS
A B C D E F G H J K L M N P R S T U V
700 413 900 40 67 40 210 705 50 50 161 93 773 67 90 117 52 415 65
2.2.5 K-Series Kabin Pak Base Tray (KHE, KPHE & KSHE Models up to 120HE)




  
  
 
FRONT
K120HE BASETRAY DIMS
MODEL
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
S
T
U
V
K~
700
413
900
40
67
40
210
705
50
50
161
93
773
67
90
117
52
415
65
KP~
700
413
900
40
67
40
210
705
50
50
161
93
773
67
90
117
52
415
65
KS~
700
413
900
40
67
40
210
705
50
50
161
93
773
67
90
117
52
415
65
