Wascomat EX618co - Page 26

26
Installation

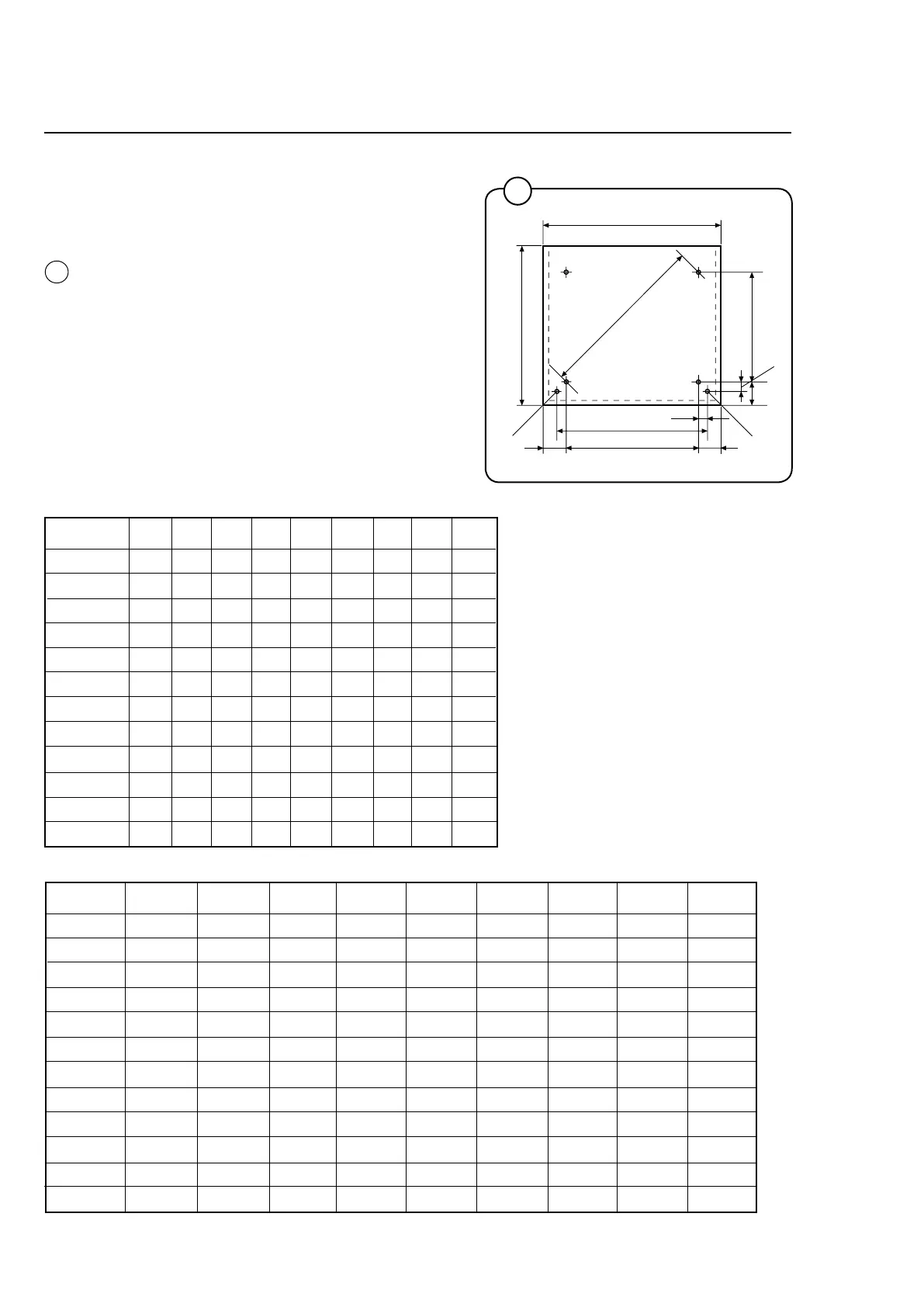

in mm A B C D E F G H I
W620 725 660 495 445 115 665 – – –
W625 700 720 575 385 120 695 – – –
W630 785 720 575 495 120 760 – – –
W645 875 750 635 570 120 855 – – –
W662 950 830 715 635 125 955 – – –
W677 1035 910 790 695 135 1050 810 10 95
SU620 725 660 495 445 115 665 495 0 75
SU625 700 720 575 385 120 695 595 10 80
SU630 785 720 575 495 120 760 595 10 80
SU645 875 750 635 570 120 855 655 10 85
SU662 950 830 715 635 125 955 735 10 85
SU677 1035 910 790 695 135 1050 810 10 95
6099
9
Model SU and W/E677
NOTE!
For above models, two expander bolts must
also be fitted to the front section of the mach-
ine. If not, large vibrations in the machine
cabinett may occur.
• Drilltwoholes(1)ø10mm/3/8"and40mm/
19/16"deep.
• Afterthemachinehasbeenplacedoverthe
otherfourbolts,placethetwospacerwash-
ersoverthetwoholes.Theyshallbeplaced
betweenthemachineandfoundation.
• Mounttheexpanderboltsinthedrilledholes.
Fitthewashersandnuts,andtightenwell.
ininch A B C D E F G H I
W620 28 9/16 26 19 1/2 17 1/2 4 1/2 26 3/16 – – –
W625 27 7/8 28 3/8 22 3/4 15 3/16 4 3/4 27 13/32 – – –
W630 30 7/8 28 3/8 22 5/8 19 1/2 4 3/4 29 15/16 – – –
W645 34 7/16 29 1/2 25 22 7/16 4 3/4 33 11/16 – – –
W662 37 3/8 32 11/16 28 1/8 25 4 15/16 37 5/8 – – –
W677 40 3/4 35 13/16 31 1/8 27 3/8 5 5/16 41 5/16 31 7/8 13/32 3 3/4
SU620 28 9/16 26 19 1/2 17 1/2 4 1/2 26 3/16 19 1/2 0 2 15/16
SU625 27 7/8 28 3/8 22 3/4 15 3/16 4 3/4 27 13/32 23 7/16 13/32 3 1/8
SU630 30 7/8 28 3/8 22 5/8 19 1/2 4 3/4 29 15/16 23 7/16 13/32 3 1/8
SU645 34 7/16 29 1/2 25 22 7/16 4 3/4 33 11/16 25 13/16 13/32 3 3/8
SU662 37 3/8 32 11/16 28 1/8 25 4 15/16 37 5/8 28 15/16 13/32 3 3/8
SU677 40 3/4 35 13/16 31 1/8 27 3/8 5 5/16 41 5/16 31 7/8 13/32 3 3/4
9
B
A
C
G
=
1
=
E
H
1
I
D
F
