Wascomat EX618co - Steam Connection

32
Installation
”HEAT”
A
B
18
6600
20
6601
19
5862
22
6604
21
6602

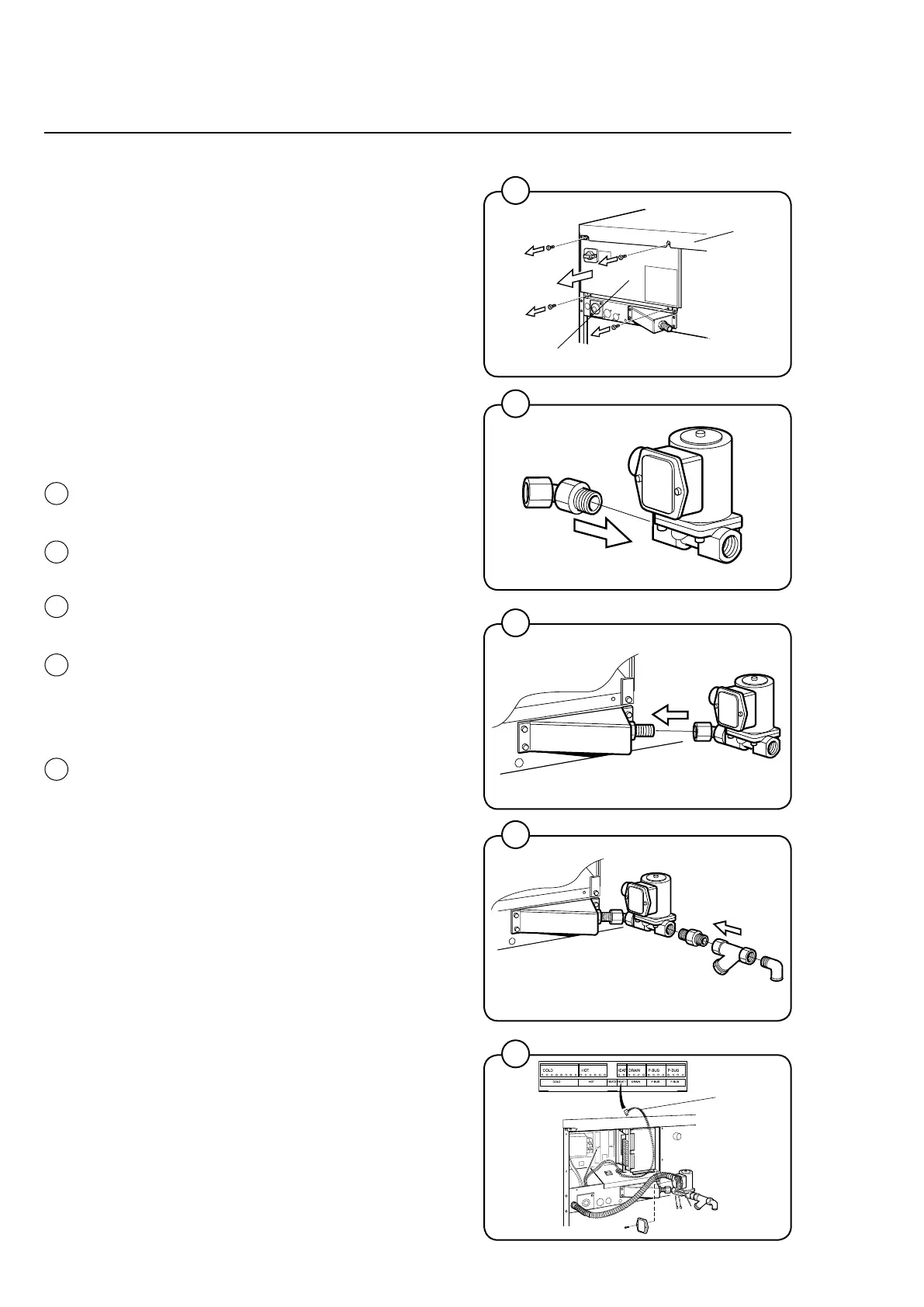

Steam connection
Inlet pipes connected to the machine must be
equipped with a manual shut-off valve to facili-
tate installation and servicing.
The connection hose must be of type ISO/1307-
1983 or equivalent. Connection size at filter:
DN 15 (BSP 1/2").
Steam pressure required:
 • minimum:7psi(50kPa)
 • maximum:115psi(800kPa)
• rec. pressure: 600 kPa (6 kp/cm
2
)
• Remove top cover (A).
• Remove casing (B).
• Mountthearticulatednippletothesteam
valve.
• Mountthesteamvalveonthemachine.
• Mountnipple,strainerandelbow.Notethe
direction of the strainer. Mount steam hose to
the elbow.
Check that there are no sharp angles or bends
on the connected steam hose.
• Mountthehosewithwiresbetweensteam
valve and machine.
Connect wires in the steam valve.
Connect ground cable to the terminal ground
connection.
Connect the ”HEAT” cable connector to the
”HEAT” terminal on the I/O board.
18
19
20
21
22
