Installation



















26
6236

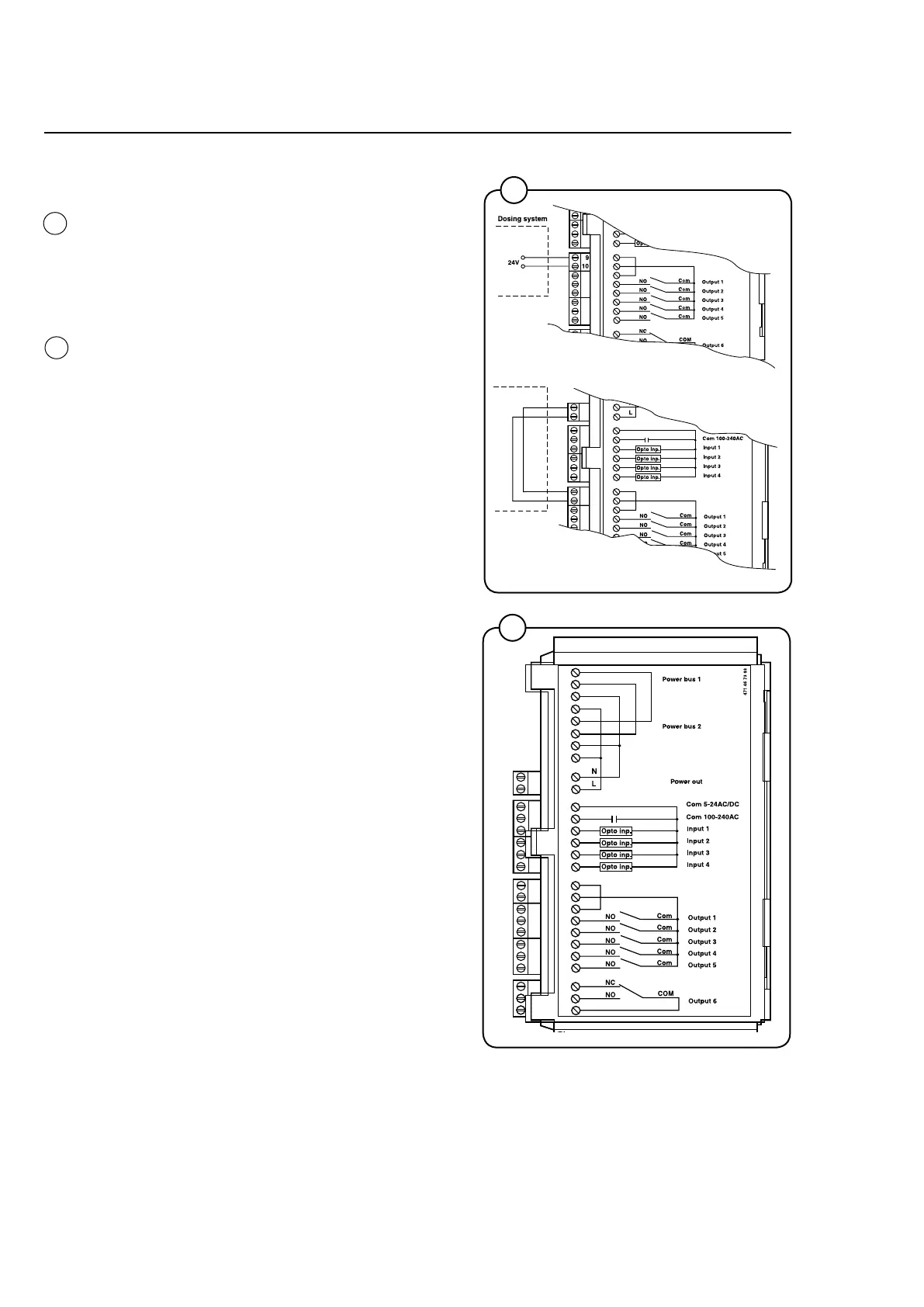

Outputs
• Connectexternalpowersupply(e.g.24VDC)
for pumps to 9 and 10. If an internal power
supply (from the washing machine) is being
used, it can be taken from 1 (N) and connec-
ted to 9 and from 2 (L) and connected to 10.
Max load on the outputs 0.5 A.
• Signalsforpumps1-5areconnectedto12-16
where connector
12 Washing detergent signal 1
13 Washing detergent signal 2
14 Washing detergent signal 3
15 Washing detergent signal 4
16 Washing detergent signal 5
Inputs
• Thesignallevelcanbe5-24VDC/ACor100-
240VAC.For5-24V,thesignalreferenceis
connectedto3andfor100-240Vto4.Poten-
tials on the inputs cannot be mixed.
NB! The I/O board will be damaged if the vol-
tageonconnection3istoohigh,>24V.
25
25






6634, 6635
26
