Electrochlor Mineral Chlorinator
Ensure that the 4 connections (3 for cell power and 1 for flow detection) are not loose.
A loose connection is likely to cause arcing, which may damage the entire system.
Power

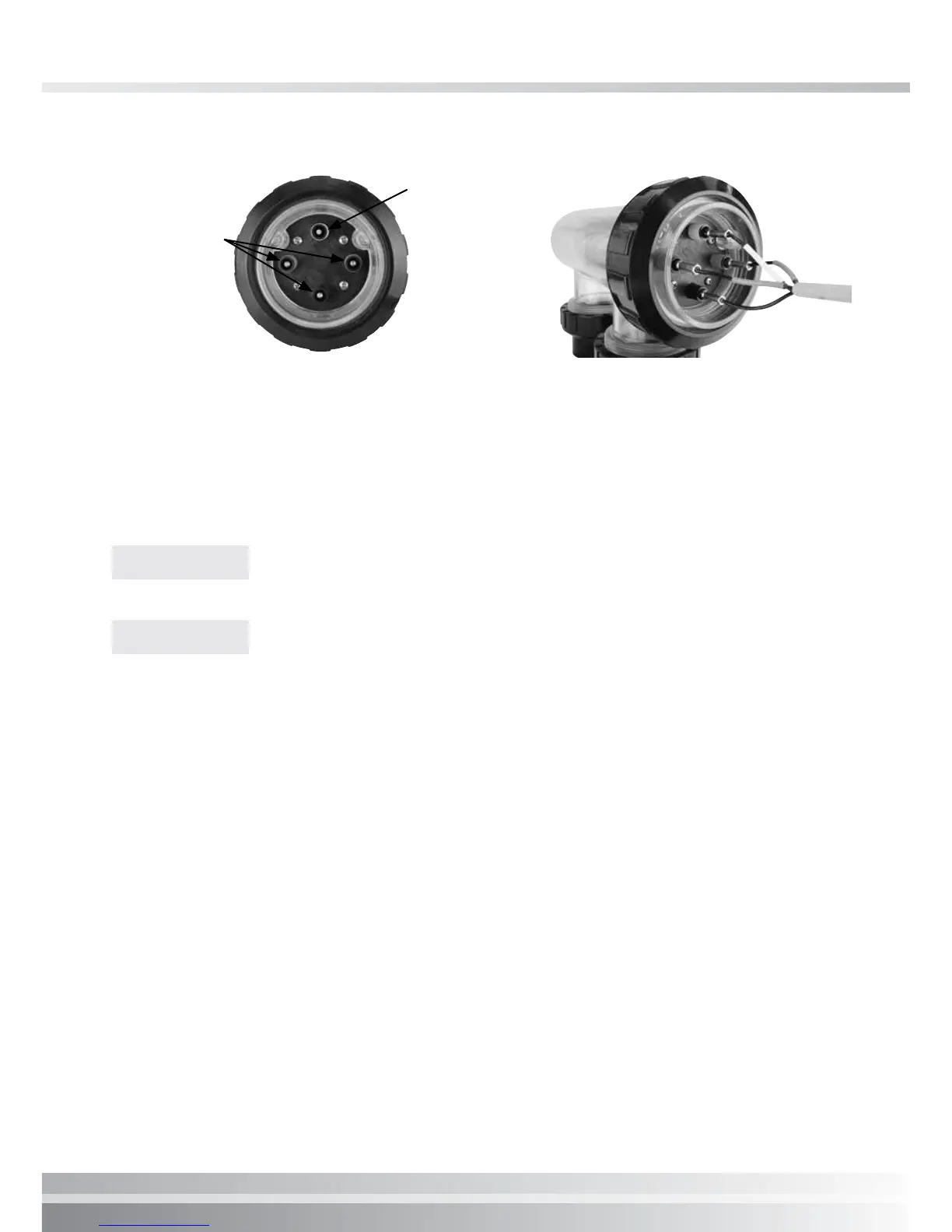

Connections
Flow Sensor
Cell Connections
Connect all plumbing to the Cell Housing taking care that all joints are
glued or tightened securely to prevent leaking.
Allow 24 hours for glue (solvent) to set before starting the Electrochlor.
NOTE:
NOTE:
Installing Temperature Sensor
1. The pool water temperature sensor should be installed prior to any heater or solar.
2. Immediately after the filter drill a 9.5mm hole in the side of the line as shown in the
image below.
3. Insert the special plug into the hole and rotate home.
