Electrochlor Mineral Chlorinator
Lock: Output interlocked
On: output make available via timer.
Requirements:
The Electrochlor Interlock Kit is required in order to access full interlock functionality.
Electrochlor Interlock Kit Content:
• Waterco FPI Valve Actuator
• Transformer.
Setting Interlocking Functions

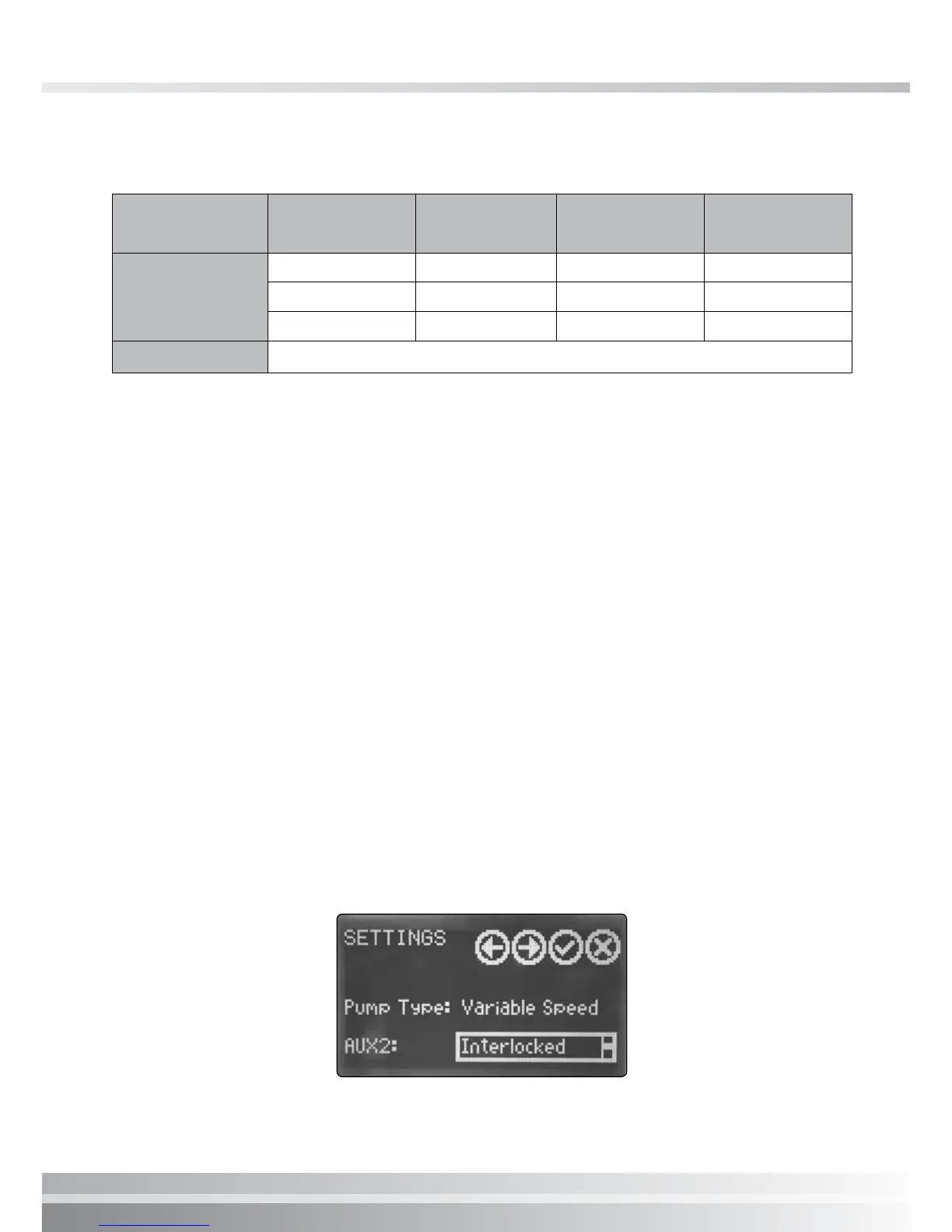

1. Access setting menu and set pump type to variable speed pump. This enables the
Pump GPO as Auxiliary 1. Select Auxiliary 1 functionality:
• Interlocked: enable Auxiliary 1 as interlock output
• Independent: enable Auxiliary 1 to act as independent GPO, programing is done
through the timers.
• Pool Pump: enable Auxiliary 1 as pool pump outlet. In this case the pump speed
is controlled via a communication cable.
Interlock/Interlink Scenarios with Multi Speed Pump
Function/Out-
put Controlled
Filtration Pump Valve
Auxiliary 1
(8 A output)
Auxiliary 2
(2 A output)
Interlock
Lock Lock On On
Lock Lock Lock On
Lock Lock On Lock
Timer Any combination can be set to turn on via timer programming
