Electrochlor Mineral Chlorinator
If the minimum speed is not reached during the Interlock functionality, interlock
is disabled. This also puts a restriction defining the pump speed in the timer. If the
minimum speed does not fulfill the pre-set requirements, Electrochlor won’t allow the
interlocking function. This is to ensure that the minimum water flow is provided for the
ancillary function to operate.

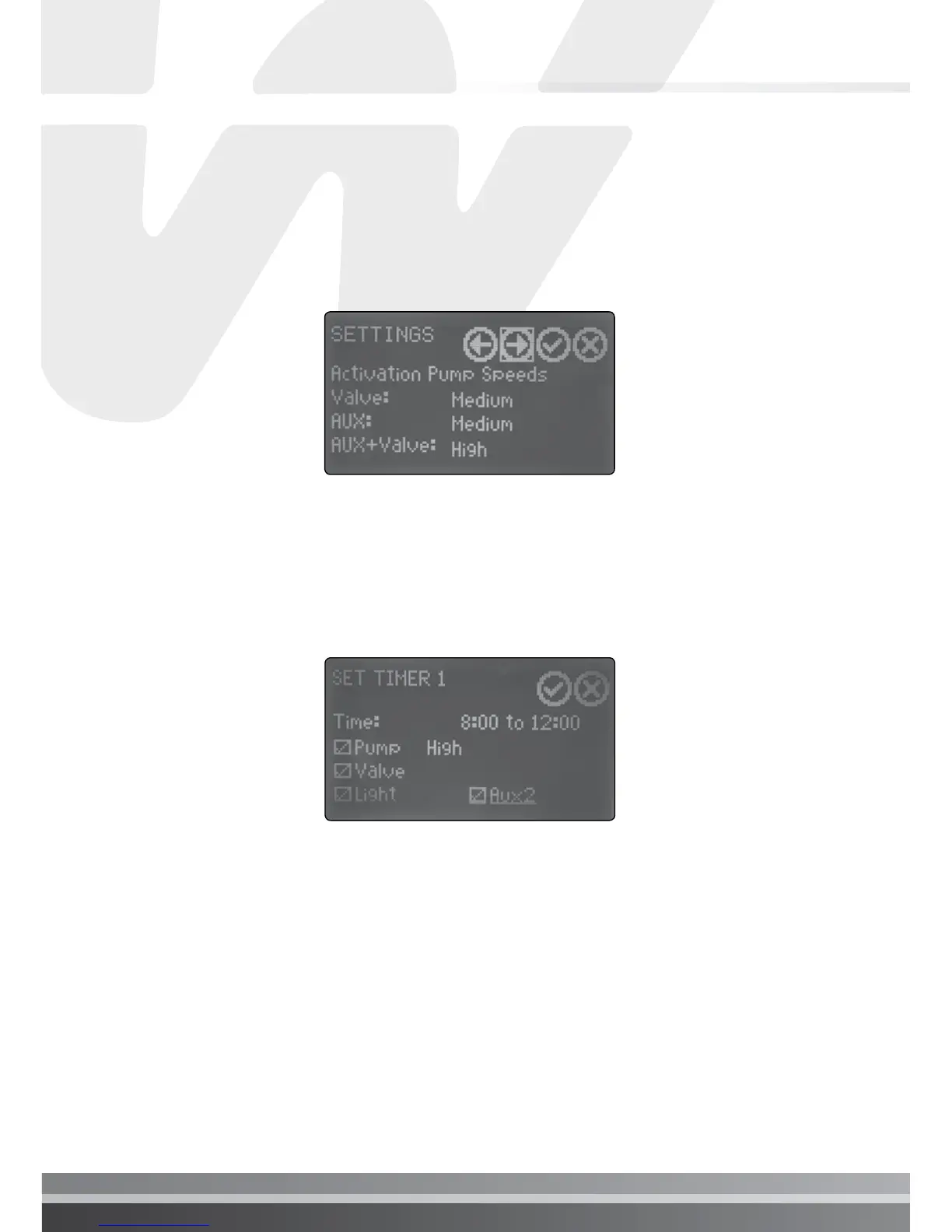

Figure showing Interlocked functions programmed through timer meeting the
minimum pump required speed, in this case high.
2. Define actuation speed: Access setting menu and select the minimum allowed pump
speed that enables the interlocked functions:
a. Valve Speed (low, medium, high)
b. Auxiliary 1 (low, medium, high)
c. Auxiliary 1 + Valve (low, medium, high)
