Connecting your detector
Related documentation:
Waters 2707 Autosampler Operator’s Guide, (71500168202, rA)

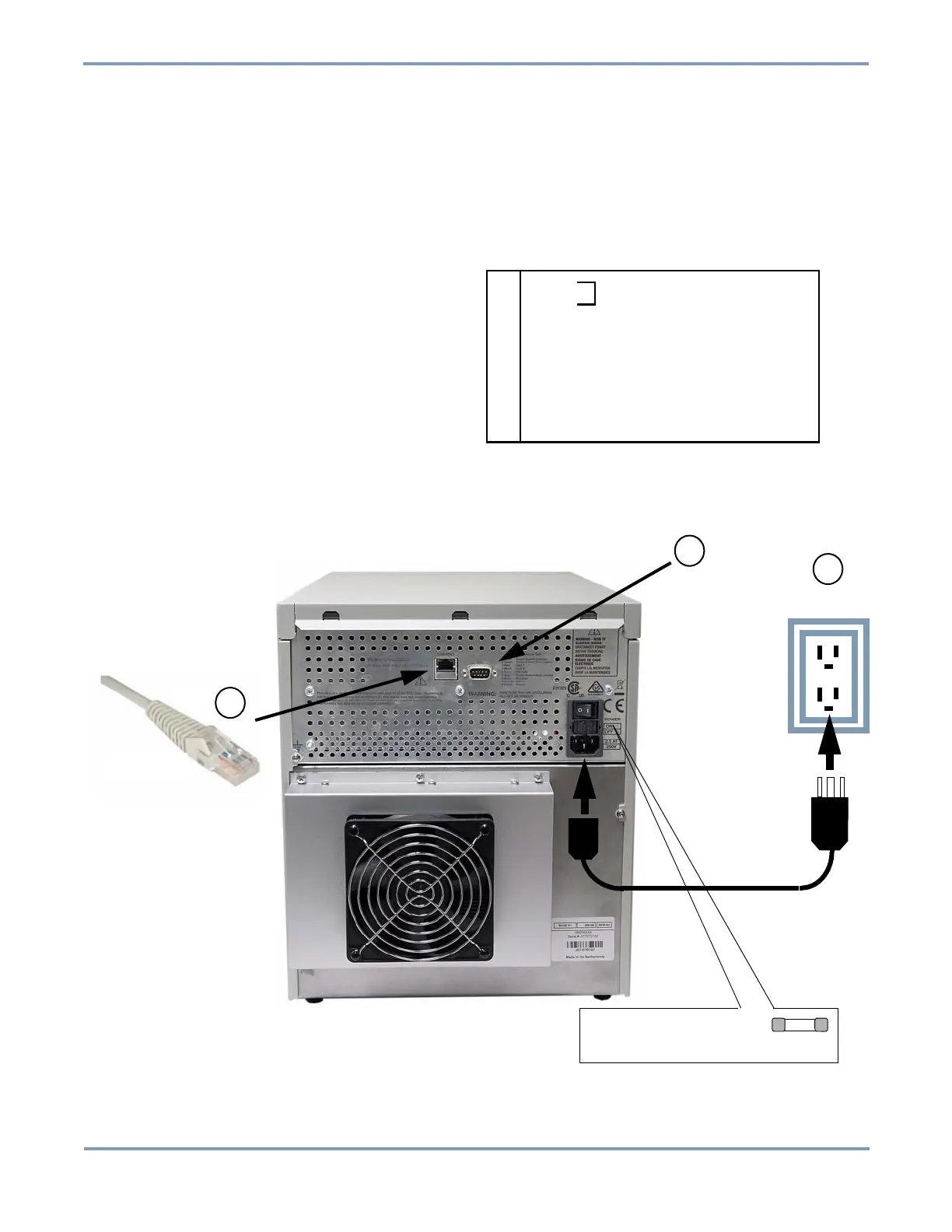

Electrical Connections
A. Connect the I/O cables.
B. Connect the Ethernet cable.
C. Connect the power cable to a
grounded receptacle.
White
Green
Red Input 1
Black Input 2
None Not Used
Gray Not Used
None Not Used
Orange Ground
Brown Ground
I/O Connection Table
1
2
3
4
5
6
7
8
9
Inject Start/Switch Out
Ethernet Cable
B
A
Fuse: 2.5A / 250V
700003863
C
110/220 V
C
(2)
