715001746, Rev. A 3 of 4

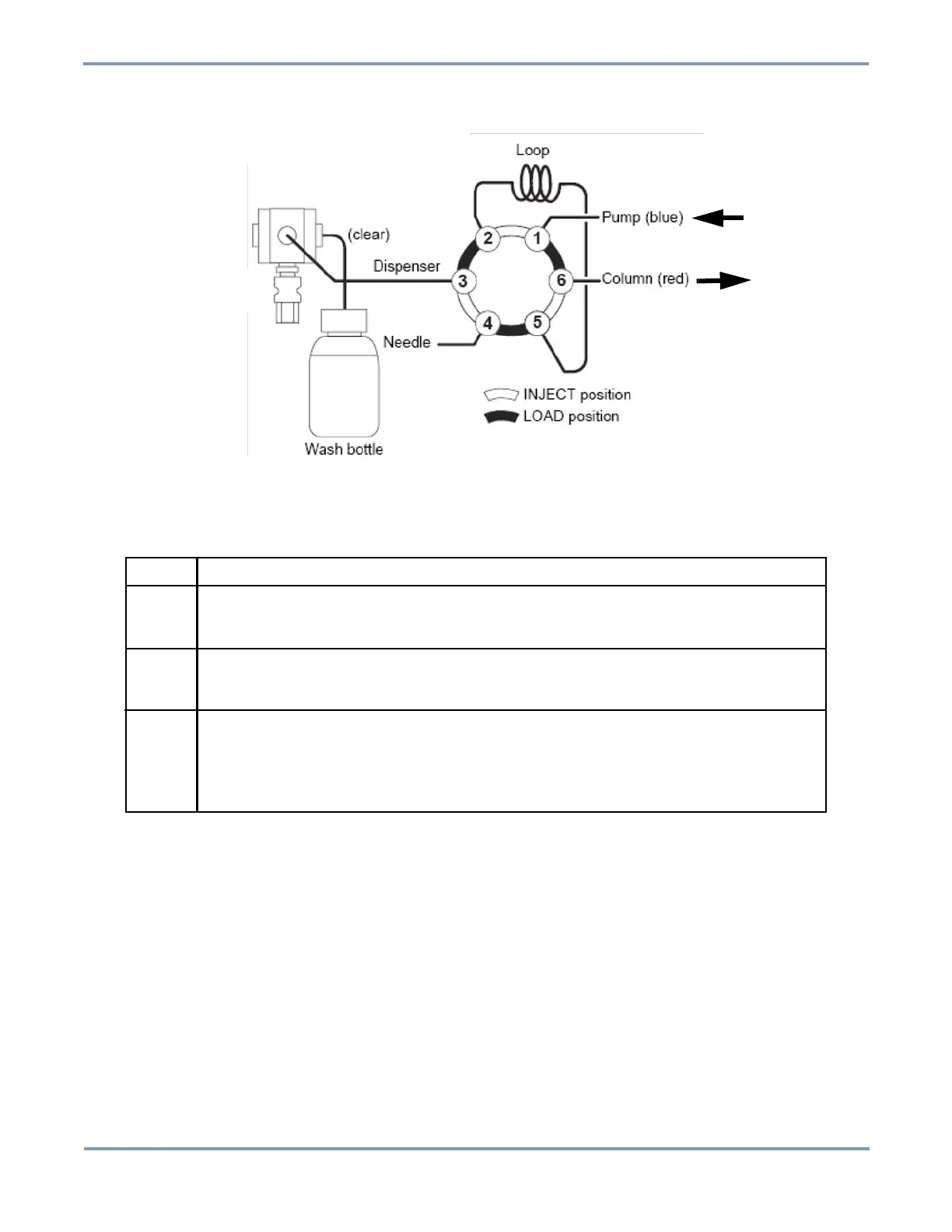

Fluidic Connections
Clear Plastic tubing for wash solvent
Blue High-pressure steel tubing, 0.03-inch (0.75-mm) ID; connects the
instrument to the pump
Red High-pressure steel tubing, 0.009-inch (0.25-mm) ID; connects the
instrument to the column
Drain Two 0.25-inch clear lines; attach to the drip trays on the instru-
ment’s bottom: one drains solvent and sample spills, while the other
drains water from the cooler, as well as sample spills and mobile
phase leaks
Refer to Section two of the Operator’s Manual, Preparing the Instrument, for
detailed instructions on routing and connecting the tubing and working with
waste tubing.
