Chapter 2: Install and Wire

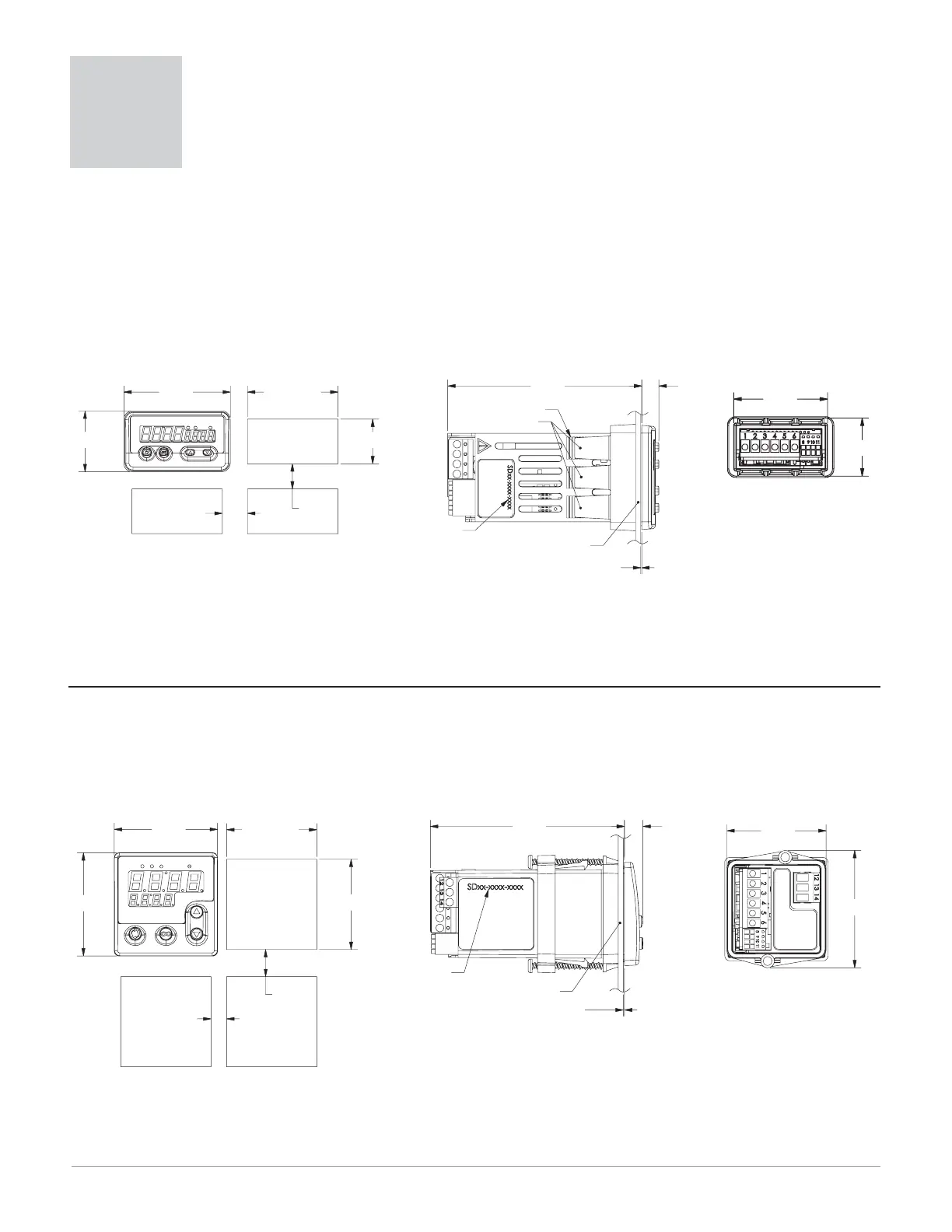

1/16 DIN Series SD Controller Dimensions
97.8 mm
(3.85 in)
9.3 mm
(0.37 in)
Model Number
Customer Front Panel
0.6 mm (0.025 in) maximum gap between
controller front and customer front panel
50.1 mm
(1.97 in)
59.2 mm
(2.33 in)
52.1 mm
(2.05 in)
45.0 to 45.5 mm
(1.77 to 1.79 in)
Panel Cutout
Panel Thickness
1.5 to 9.5 mm
(0.060 to 0.375 in)
45.0 to 45.5 mm
(1.77 to 1.79 in)
13.7 mm
(0.54 in)
minimum
7.9 mm
(0.31 in)
minimum
52.1 mm
(2.05 in)
Front
Side Back
1/32 DIN Series SD Controller Dimensions
30.7 mm
(1.21 in)
53.6 mm
(2.11 in)
12.7 mm
(0.50 in)
minimum
45.0 to 45.6 mm
(1.77 to 1.79 in)
Panel Cutout
Panel Thickness
1.5 to 9.5 mm
(0.060 to 0.375 in)
22.2 to 22.5 mm
(0.87 to 0.89 in)
12.7 mm
(0.50 in)
minimum
97.8 mm
(3.85 in)
Ridges
Tabs with Teeth
Model Number
Customer Front Panel
0.48 mm (0.019 in) maximum gap between
controller front and customer front panel
8.6 mm
(0.34 in)
47.2 mm
(1.86 in)
29.3 mm
(1.15 in)
Front Top
Back
Contact your local Greenlee supplier for the appropriate punch kit
and cutout tools required for rapid mounting.
Contact your local Greenlee supplier for the appropriate punch kit
and cutout tools required for rapid mounting.
Dimensions
2
