WattMaster Auto-Zone Plus - Figure 1-4: Round Damper Dimensions; Figure 1-5: Rectangular Damper Dimensions

Section 1 Auto-Zone Plus
1-16 Design Guide

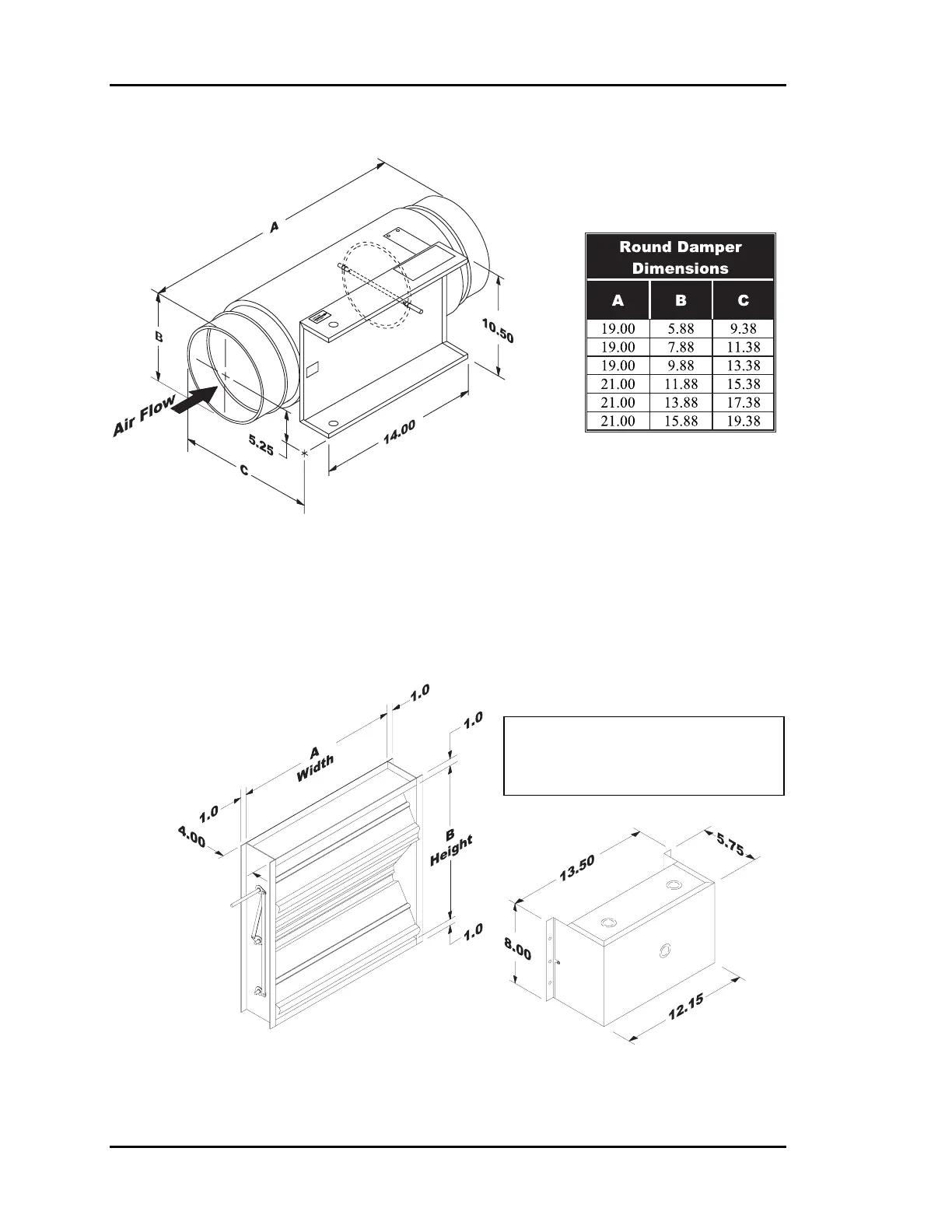

Figure 1-4: Round Damper Dimensions
Figure 1-5: Rectangular Damper Dimensions
N
ote: Dimensions Are
Identical For Round Zone,
Bypass & Slave Dampers
N
ote: See Table 1-2 fo
r
Available “A” x “B”
Rectangular Damper Sizes
N
ote: Dimensions Are Identical
For Rectangular Zone, Bypass &
Slave Dampers
