Auto-Zone Plus
Section 2
Design Guide 2-3
Zone Manager
The Zone Manager may be installed in any convenient protected location. Observe the
recommended environmental limitations for the Zone Manager (see Technical Data
section of the product data sheet) when choosing a location.
The Zone Manager may be mounted without removing the controller from the mounting
plate. The unit is mounted by four (4) screws in the corners. Select the correct screws or
other fasteners for the type of mounting material being utilized.

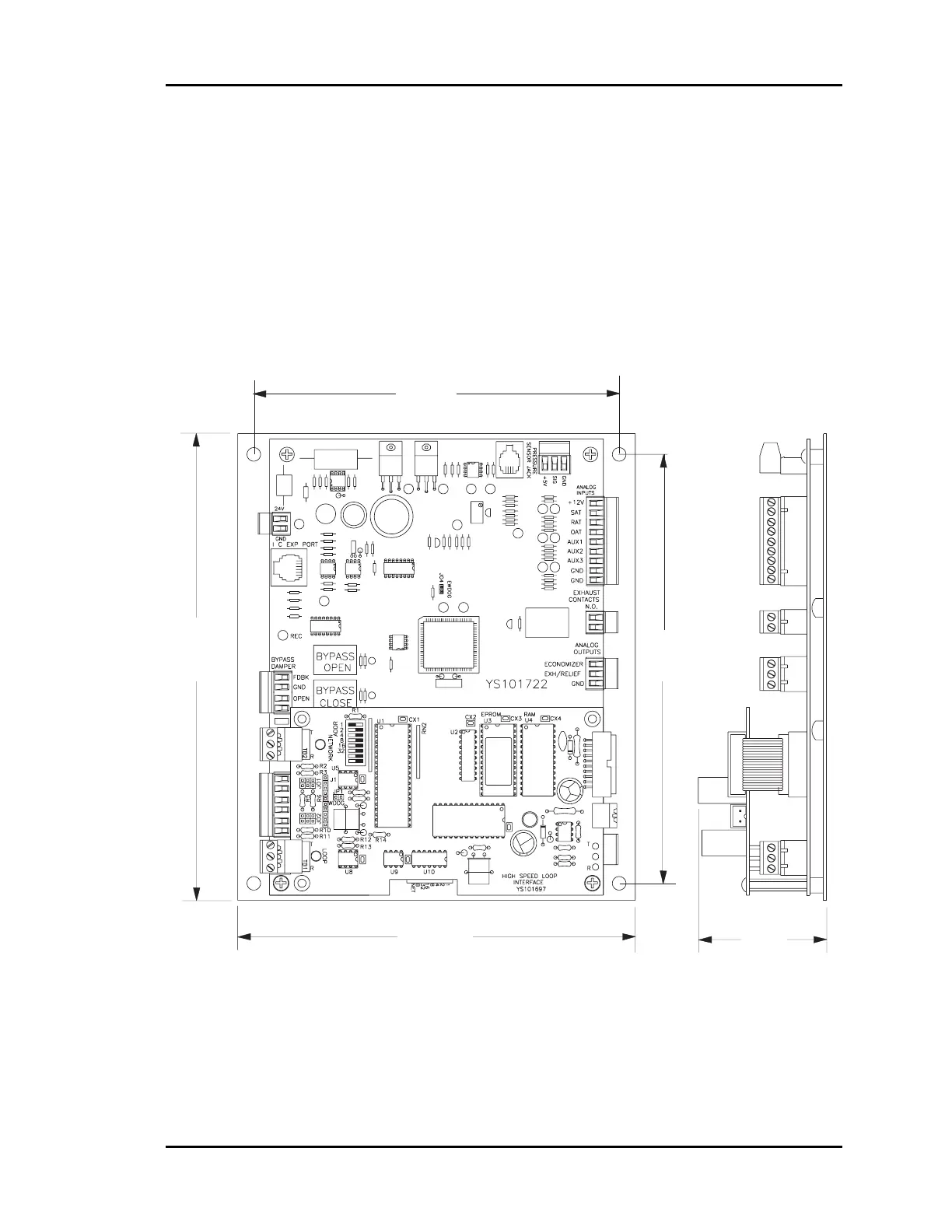

Figure 2-3: Auto-Zone Plus Zone Manager Dimensions
9.00
8.25
7.13
7.63
2.38
