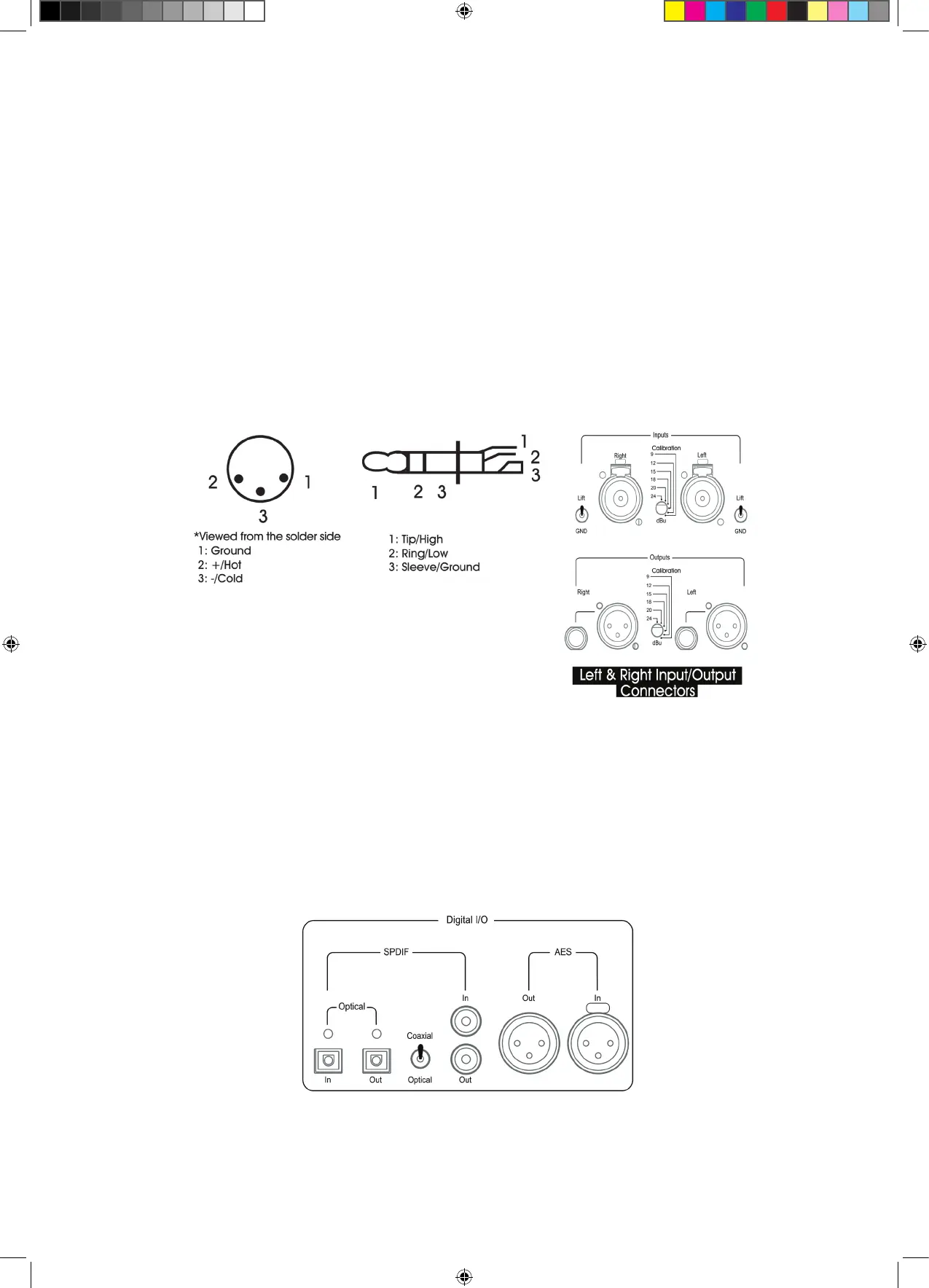

Audio Connections (Rear Panel)
Analog Connections:
MaxxBCL accepts two types of connectors for left and right analog and
outputs.
The connector types are:
1. XLR/TRS combo inputs connector type for balanced / eunbalanced in
-
puts.
2. XLR connector type for balanced outputs.
3. TRS (1/4”) jack connector type for balanced or unbalanced outputs.
Digital Connections:
The MaxxBCL accepts three types of digital inputs and outputs:
1. XLR type input/output connectors for AES/EBU signals.
2. RCA type input/output connectors for S/PDIF signals.
3. Optical type input/output connectors for S/PDIF signals.
S/PDIF input/output uses RCA or Optical connectors (mutually exclusive).
The input format is selected using the Coaxial/Optical selector switch.
